Trunk Main & Plastic Pipe Correlator
The AQUASCAN TM2 by GUTERMANN is a powerful, high-end touchscreen leak noise correlator designed for large-diameter trunk mains, non-metallic pipelines, and long-distance leak detection. Built for tough field conditions, it offers unlimited correlation capability, advanced signal processing, and exceptional sensitivity — making it the most advanced correlator in the industry.
Serving the Rocky Mountain Region — Colorado, Utah, Wyoming, Montana, and Idaho — Intermountain Sales provides full sales, training, and technical support for MULTISCAN 2 and Gutermann’s complete leak detection solutions.
Engineered for Tough Conditions
- Detects quiet leaks at low frequencies even on large diameter and plastic pipes.
- Correlates leaks over 1 km or more using powerful radio transmission and optional antenna stands.
- Hydrophone compatibility for hydrants or tappings to increase sensitivity in challenging conditions.
- Stainless steel sensor housings protect against corrosive environments during long deployments.
- Ruggedized Windows tablet PC with illuminated buttons, shock-proof padding, and color touchscreen for day or night use.
Advanced Leak Detection Technology
- Auto Filter: Automatically selects the most relevant frequencies for a clear correlation peak, even with faint leak noise.
- Spot Filter: Focuses on a specific pipe section to isolate leak noise.
- Notch Filtering: Removes electrical mains interference and harmonics.
- Filtered Listening: Hear leak sound files with applied filters to suppress road traffic or other ambient noise.
- Multi-Frequency Band Correlation: Detect multiple leaks on the same pipe section.
- Enriched Wave Files: Share sound files with embedded pipe data for analysis on any Windows-based computer—or by GUTERMANN experts.
User-Friendly, Non-Invasive Operation
- Magnetic sensor connection for fast, secure setup.
- Radio communication enables closed manhole correlation for safety and convenience.
- No invasive access—avoids costly pipe tapping, floating sensors, or contamination risks.
- Intuitive touchscreen interface with large buttons—easy to use even for operators with minimal leak detection experience.

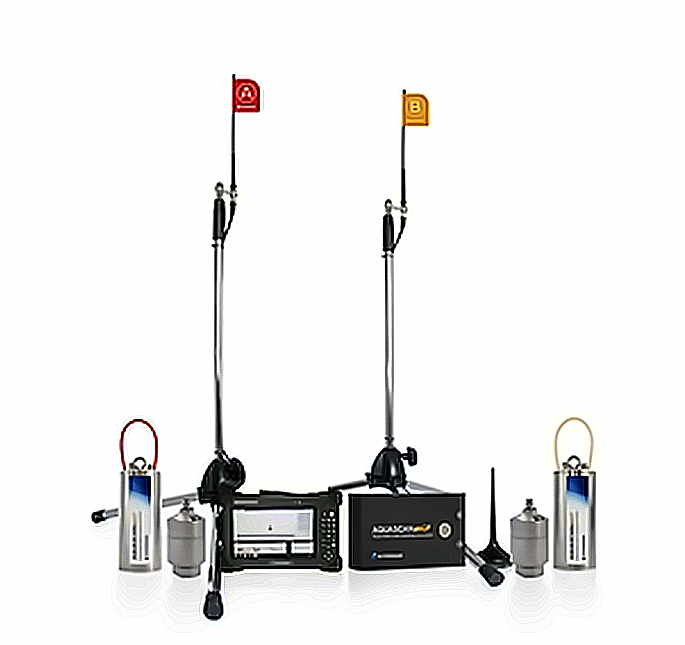

What’s Included
- 1 x Color touchscreen ruggedized Windows PC with carry strap
- 2 x Stainless steel low-frequency accelerometer transmitter-sensors
- 2 x Stainless steel hydrophones
- 2 x Antenna extension cables and antenna stands
- 1 x Vehicle charging set (12V)
- 1 x 100–240V AC adapter
- 1 x Carry case
- 1 x Operating manual
- 2-Year Warranty
Technical Specifications
- Pipe Materials: All common pipe materials; mixed-material mode
- Frequency Range: 1–5000 Hz
- Filters: Auto Filter, Spot Filter, Manual Filter, Notch Filter
- Frequency Analysis: High-resolution FFT, coherence analysis, cross-spectrum analysis
- Sensors: High-sensitivity stainless steel piezo-ceramic with radio transmitter and magnetic fixing
- Power: Rechargeable lithium-polymer battery (8-hour life)
- Range: Up to 1 km correlation distance
Testimonial
“In my 30 plus years as a leak detection specialist, the advent of the AQUASCAN TM2 was one of the most significant advancements in correlation technologies. Success in the field demands speed and precision. From 4″ to 42″ diameters, and from plastic to PCCP, the TM2 consistently has met the performance I have required from it.”
– John A. Godri, Leak Detection Specialist, Eastern Pennsylvania, USA
Call to Order
Order the AQUASCAN TM2 Today – the ultimate correlator for large-diameter and plastic pipe leak detection.
Call Intermountain Sales Inc. at (303) 762-1070 for pricing, availability, and expert support.
