Stanley CH18 Chipping Hammer
Part Numbers:
The Stanley CH18 Chipping Hammer with a "D" handle is the perfect lightweight yet powerful alternative to traditional air-powered tools. Designed for efficiency and operator comfort, this hydraulic hammer excels in confined working conditions while delivering the performance professional’s demand.
Key Features and Benefits
- Compact and Versatile Design: The CH18’s small, compact size makes it ideal for use in tight spaces. It accepts standard 0.580-inch round collar steels, providing compatibility with a range of tool bits.
- Shock and Heat Insulation: Both the handle and tool holder end are insulated to minimize heat transfer and absorb shocks, ensuring maximum comfort during prolonged use.
- Ergonomic "D" Handle: The ergonomically designed "D" handle provides excellent control, enhancing operator productivity and reducing fatigue.
- Underwater Models Available: The CH18 is available in an underwater model, expanding its utility for specialized applications.
Specifications
- Capacity: 2 1/2 in. shank x 0.580 in. hex (63 mm shank x 15 mm hex)
- Weight: 24 lbs. (11 kg)
- Length: 20 in. (51 cm)
- Width: 3 in. (8 cm)
- Pressure: 1500-2000 psi (105-140 bar)
- Flow Range: 7-9 GPM (26-34 LPM)
- Optimum Flow: 8 GPM (30 LPM)
- Porting: -6 SAE O-Ring
- Hose Whips: Included
- Connection: 3/8-inch male pipe hose end

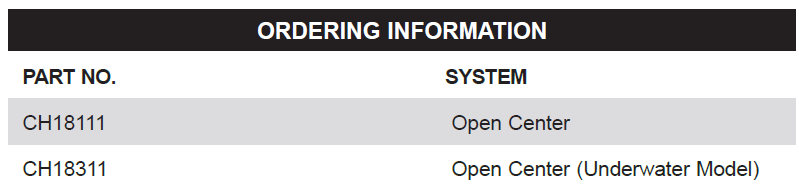

Available Models
- CH18111: Open Center System
- CH18311: Open Center (Underwater Model)

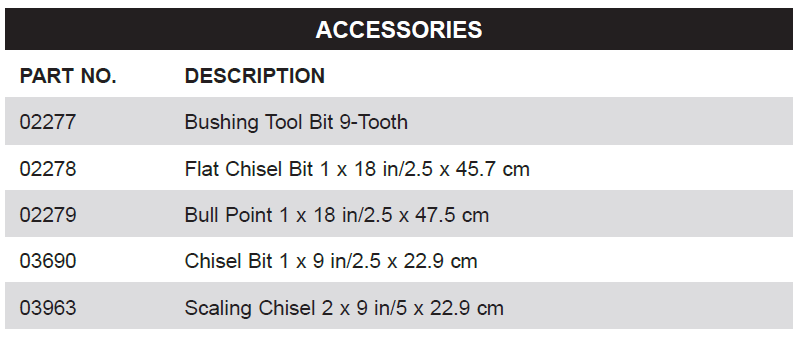

Optional Accessories
- 02277: Bushing Tool Bit (9-Tooth)
- 02278: Flat Chisel Bit, 1 x 18 in. (2.5 x 45.7 cm)
- 02279: Bull Point, 1 x 18 in. (2.5 x 47.5 cm)
- 03690: Chisel Bit, 1 x 9 in. (2.5 x 22.9 cm)
- 03963: Scaling Chisel, 2 x 9 in. (5 x 22.9 cm)
Durability and Warranty
Stanley Hydraulic Tools are built to last and come with a 12-month warranty against defects in materials and workmanship. Stanley reserves the right to repair or replace any parts proven defective at the time of purchase. Proper operation within the specified flow and pressure ratings ensures optimal tool performance and warranty validity.
The Stanley CH18 Chipping Hammer is the ultimate choice for professionals seeking a durable, efficient, and versatile hydraulic hammer for a variety of challenging applications.
