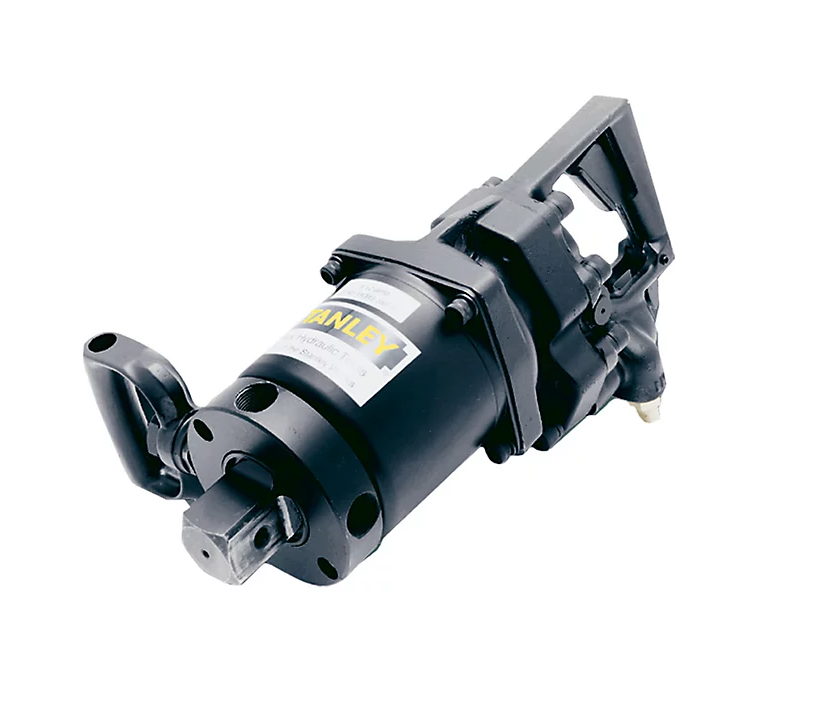

IW-24 Hydrant Saver Hydraulic Impact Wrench
In stock
SKU
IW-24
$999,999.00
Water Distribution · Municipal Infrastructure
Hydrant Saver. IW-24 Hydraulic Impact Wrench
Remove seized fire hydrant seats in under five minutes. No excavation. No replacement. The hydraulic solution trusted by municipalities and utility crews across America.
3,500 ft·lbs
Max Torque
<5 min
Hydrant Seat Removal
$0
Excavation Required
43 lbs
Tool Weight
The Problem
Seized hydrant seats were a $15,000 problem.
When a fire hydrant hydrant seat seizes, the traditional fix means calling in an excavation crew, shutting down the street, pulling the hydrant, and replacing it — all for a part that costs a fraction of the total bill.

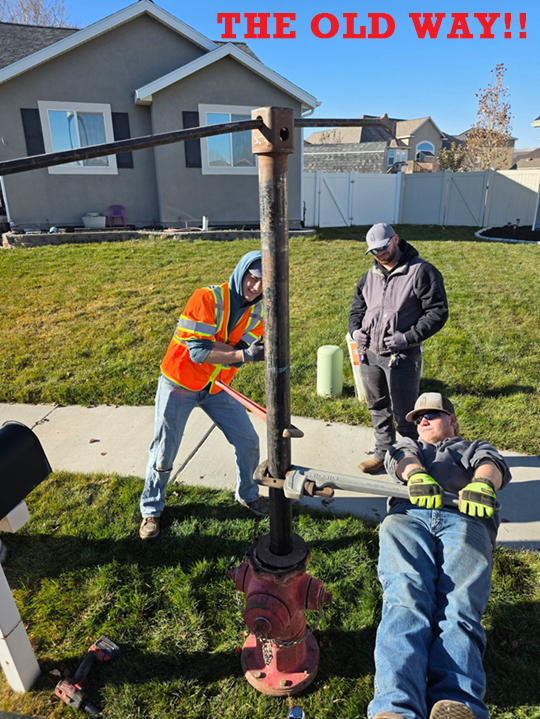

This photo tells the whole story: three workers, an improvised lever, and one person flat on the ground. That's the old way. There's a better one.
X Old Method
- Street excavation
- Days of downtime
- Full hydrant replacement
- $10K–$20K+ per incident
- Multiple workers required
✓ With IW-24
- Zero excavation
- Under 5 minutes
- Hydrant preserved
- Pays for itself in 2–3 uses
- One operator
Hydraulic Power
800 to 3,500 ft-lbs of torque.
The IW-24 delivers controlled impact torque through a 1.5-inch square drive — enough to break free even the most corroded, seized hydrant seat in the field. No impact gun for $49 from a big-box store is getting that done.
Operates on any hydraulic system supplying 7–12 GPM at 1,800–2,000 PSI — compatible with most utility truck setups already in service.
In the Field
One operator. One tool. Five minutes.

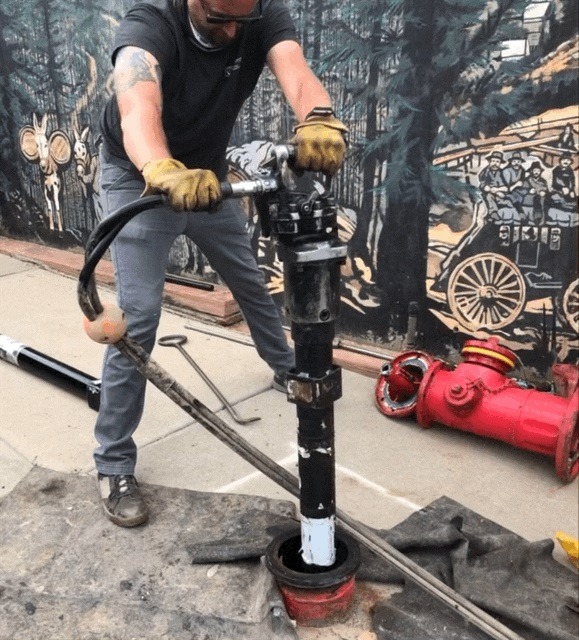

This is the IW-24 in action — one operator, standing upright, on an active hydrant, with the tool doing the work. Compare that to the old-way photo: three people, a makeshift lever, and someone laying on the ground pulling with everything they have.
The hydraulic power tube extends down into the hydrant barrel, drives the impact wrench onto the seized seat, and the job is done before a coffee break ends.

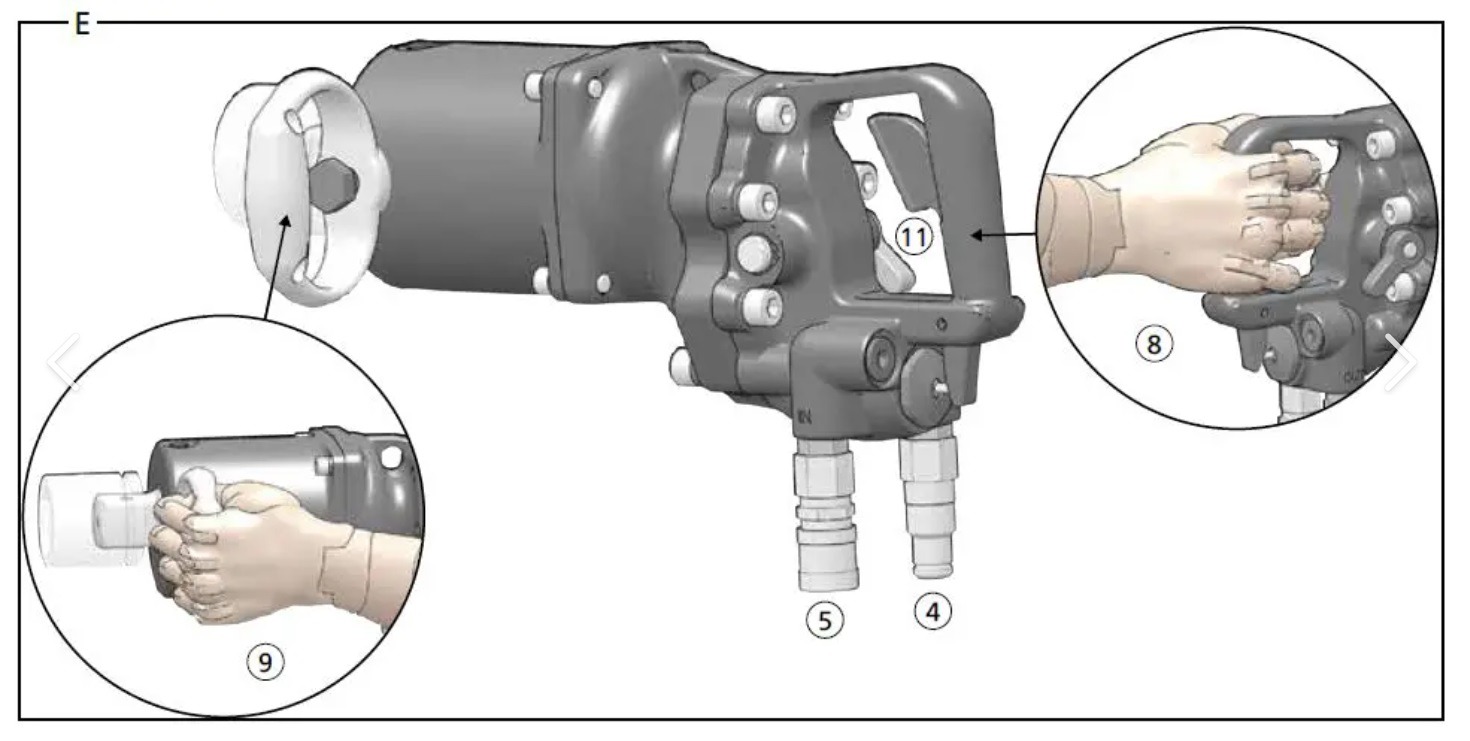

Ergonomic Design
Built for the people in the trench.
The large "D" handle and feathering trigger give operators precise control over torque application — critical when working inside an active hydrant barrel. The design minimizes fatigue even in demanding, repetitive use.
At 43 lbs, the IW-24 is substantial enough to handle serious loads but light enough for a single operator to transport, position, and run without assistance.
Also Available

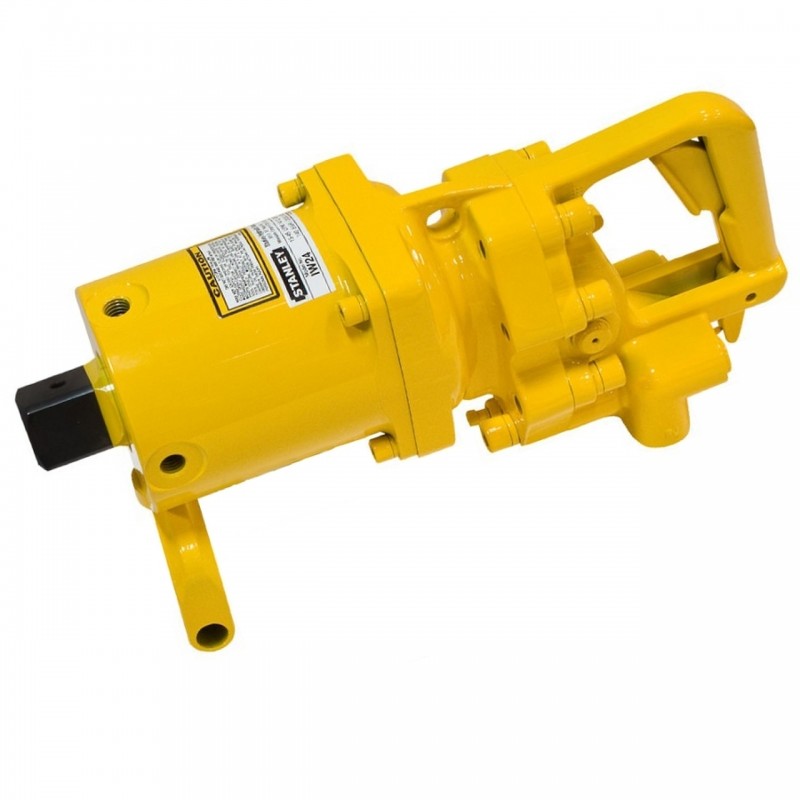

Meet the IW-24 U/W.
Built for what's below the surface.
The IW-24 U/W is a separate tool in the Stanley Infrastructure lineup — a fully submersible hydraulic impact wrench engineered for applications where the work happens underwater. Think submerged valve vaults, underwater pipeline bolting, and below-grade infrastructure that stays wet.
You'll recognize it immediately — it's the yellow one. Same class-leading 800–3,500 ft-lbs torque range as the IW-24, but built from the ground up for submerged environments. All seals, housings, and components are rated for full submersion.
A different job. A different tool. Contact Intermountain Sales to discuss the right configuration for your application.
See It In Action
Watch the IW-24 work.
Real field demonstrations — from seized hydrant seat removal to full hydrant service operations.
Primary Demo
IW-24 Hydrant Saver — Field Demonstration
Field Use
Hydrant Hydrant Seat Removal
Quick Look
IW-24 — 60 Second Overview

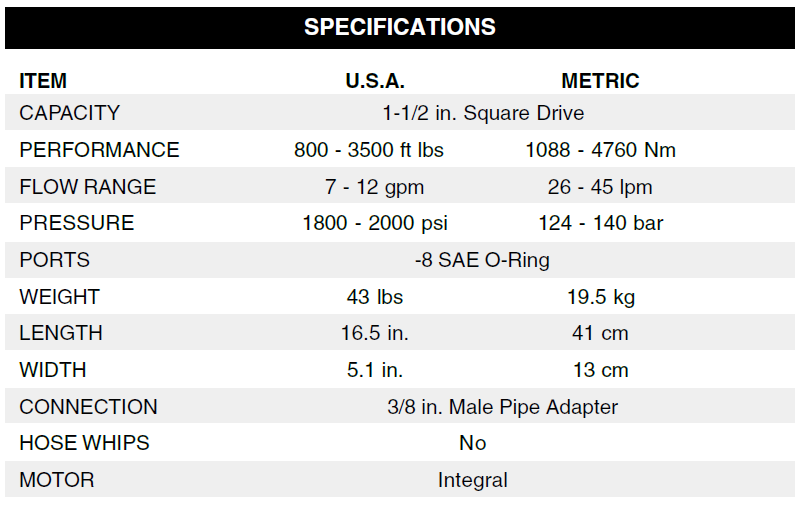

Technical Data
Full Specifications
| Model | IW-24 Hydrant Saver |
| Manufacturer | Stanley Infrastructure |
| Drive Size | 1-1/2" Square Drive |
| Torque Range | 800–3,500 ft-lbs (1,088–4,760 Nm) |
| Weight | 43 lbs (19.5 kg) |
| Length | 16.5 in (41 cm) |
| Width | 5.1 in (13 cm) |
| Flow Range | 7–12 GPM (26–45 LPM) |
| Operating Pressure | 1,800–2,000 PSI (124–140 Bar) |
| Handle Type | Large D-Handle |
| Trigger | Feathering trigger |
| Materials | Stainless steel internals, durable housing |
Ordering Information
IW-24 Standard
Part No. IW24160 · Model IW24
Standard above-ground hydraulic impact wrench. Ideal for surface-level fire hydrant hydrant seat service. Compatible with most municipal utility hydraulic systems.
IW-24 U/W (Underwater)
Part No. IW24360 · Model IW24 U/W
A separate tool for submerged applications — underwater pipeline bolting, flooded valve vaults, and below-grade wet infrastructure. Not for fire hydrant use. Contact us to discuss your specific application.
Use Cases
Where the IW-24
gets the call.
Municipal Fire Hydrant Maintenance
Service seized hydrant seats without excavation or full hydrant replacement. Restore hydrant function in minutes and move on.
Water Distribution Utilities
Handles heavy bolting and fastening across water main, valve, and distribution system maintenance. Precision torque for critical infrastructure.
Industrial High-Torque Applications
Any application requiring 800–3,500 ft-lbs of controlled hydraulic torque — pipeline flanges, large-diameter bolting, mechanical fastening.
Submerged Infrastructure (IW-24 U/W)
The separate IW-24 U/W (yellow) is built for fully submerged operations — underwater pipeline bolting, submerged valve vaults, and below-grade wet environments. A different tool for a different job.
Urban Street Repair Crews
Minimal footprint means less traffic disruption, fewer permits, faster turnaround — critical for city utility crews in high-density areas.
Contractor Maintenance Services
One tool covering every standard hydrant seat configuration — carry it on the truck and handle whatever the service call throws at you.
Configuration Kits

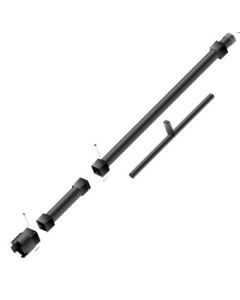

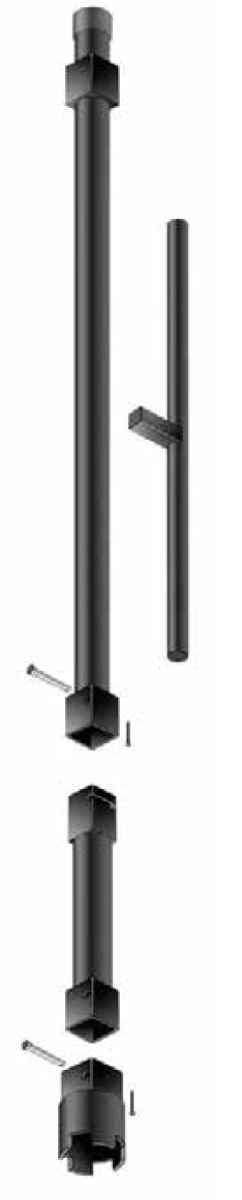

Northern & Southern Hydrant Kits
Available in regionally configured kits to match the hydrant models most common in your service area. Both include everything needed to start working immediately.
Northern U.S. Configuration
Northern Kit
- 8-foot power tube
- 1.5-foot extension
- Alignment wrench
- Retaining pins
- Mueller 5-1/4" socket
Southern U.S. Configuration
Southern Kit
- 6.5-foot power tube
- Alignment wrench
- Retaining pins
- Southern hydrant model sockets
- Full accessory package
The ROI Case
Pays for itself in 2 to 3 hydrants.
A single hydrant replacement runs $10,000–$20,000 when you factor in excavation, materials, labor, traffic control, and restoration. The IW-24 removes the hydrant seat without any of it.
Two or three successful hydrant seat saves — jobs that would have meant full replacements — and the tool has more than paid for itself for the life of the crew.
Get a Quote01
No Excavation Required
Eliminates the single largest cost driver — the excavation crew, equipment, street restoration, and traffic control.
02
Extends Hydrant Service Life
Preserving existing hydrants reduces material costs and keeps infrastructure out of the landfill.
03
Under Five Minutes Per Job
A seized hydrant that used to take days is back in operation in minutes. Crew efficiency multiplies across an entire hydrant fleet.
04
One Operator, Minimal Equipment
No excavator. One truck. One tool. Standard traffic control. That's the full crew requirement.
05
Environmentally Responsible
Fewer hydrant replacements means less cast iron waste and fewer resources consumed per maintenance event.
Stanley Infrastructure — Hydraulic Tools Leader
The IW-24 Hydrant Saver is part of Stanley Infrastructure's professional hydraulic tool lineup, engineered for municipalities, utilities, and industrial contractors worldwide. Distributed by Intermountain Sales across Colorado, Utah, Wyoming, Montana, and Idaho.
Downloads
Technical Documents
Full product documentation — sales sheets, owner's manual, parts list, and warranty information.
Complete Your Setup

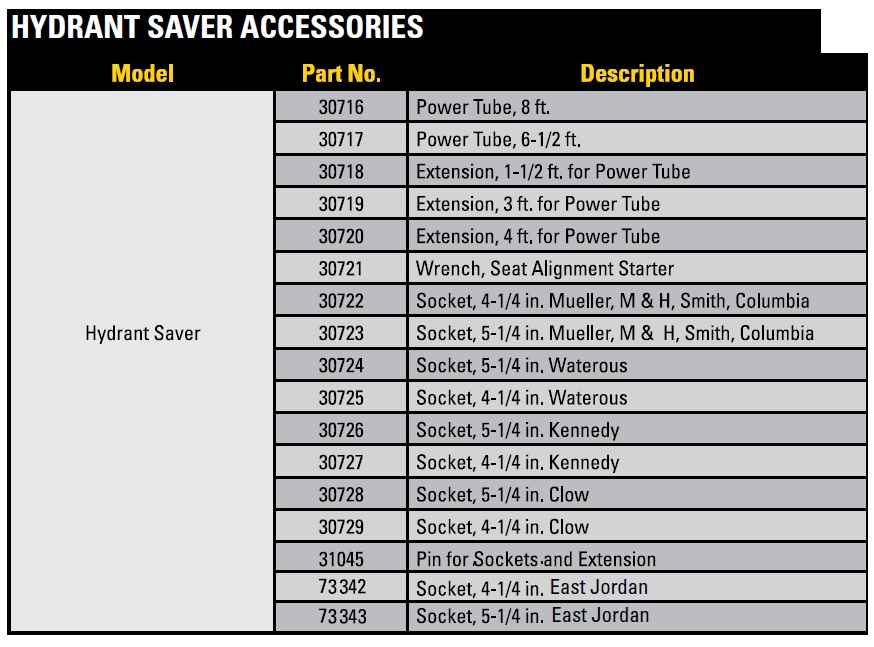

IW-24 Accessories
Everything you need to run the IW-24 in the field — sockets, kits, hoses, and hydraulic adapters.

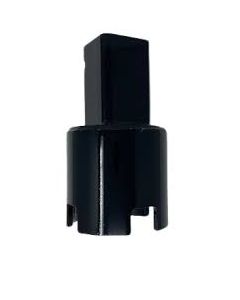

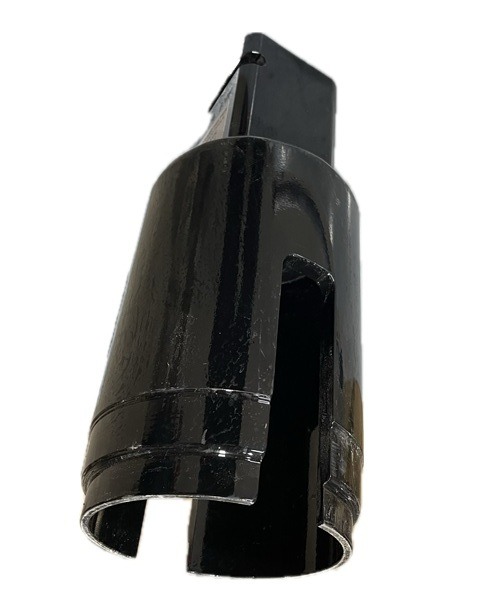

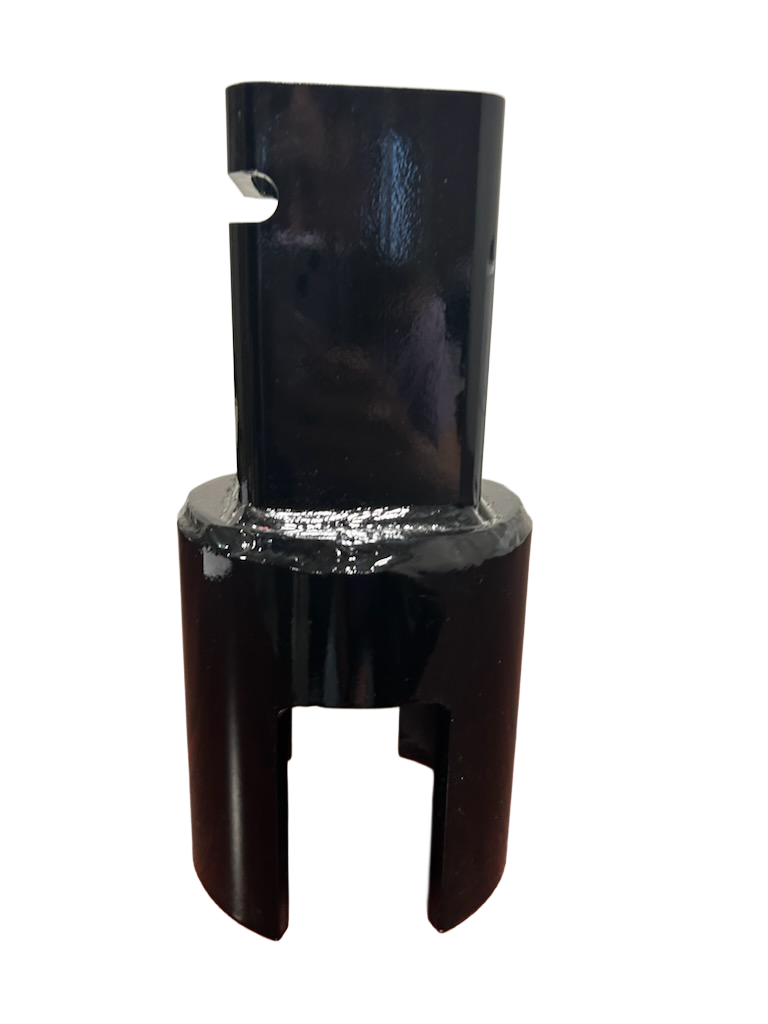

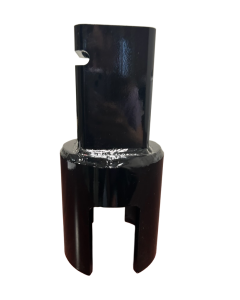

Sockets & Kits
Swipe to see more →

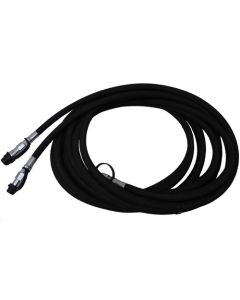

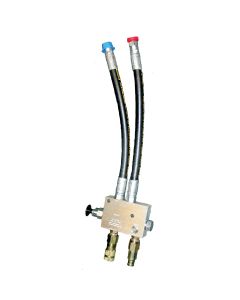

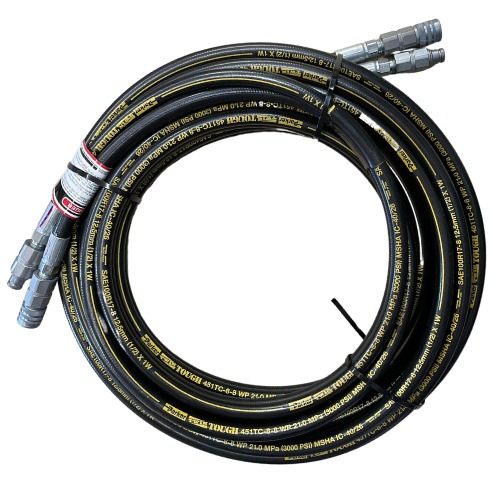

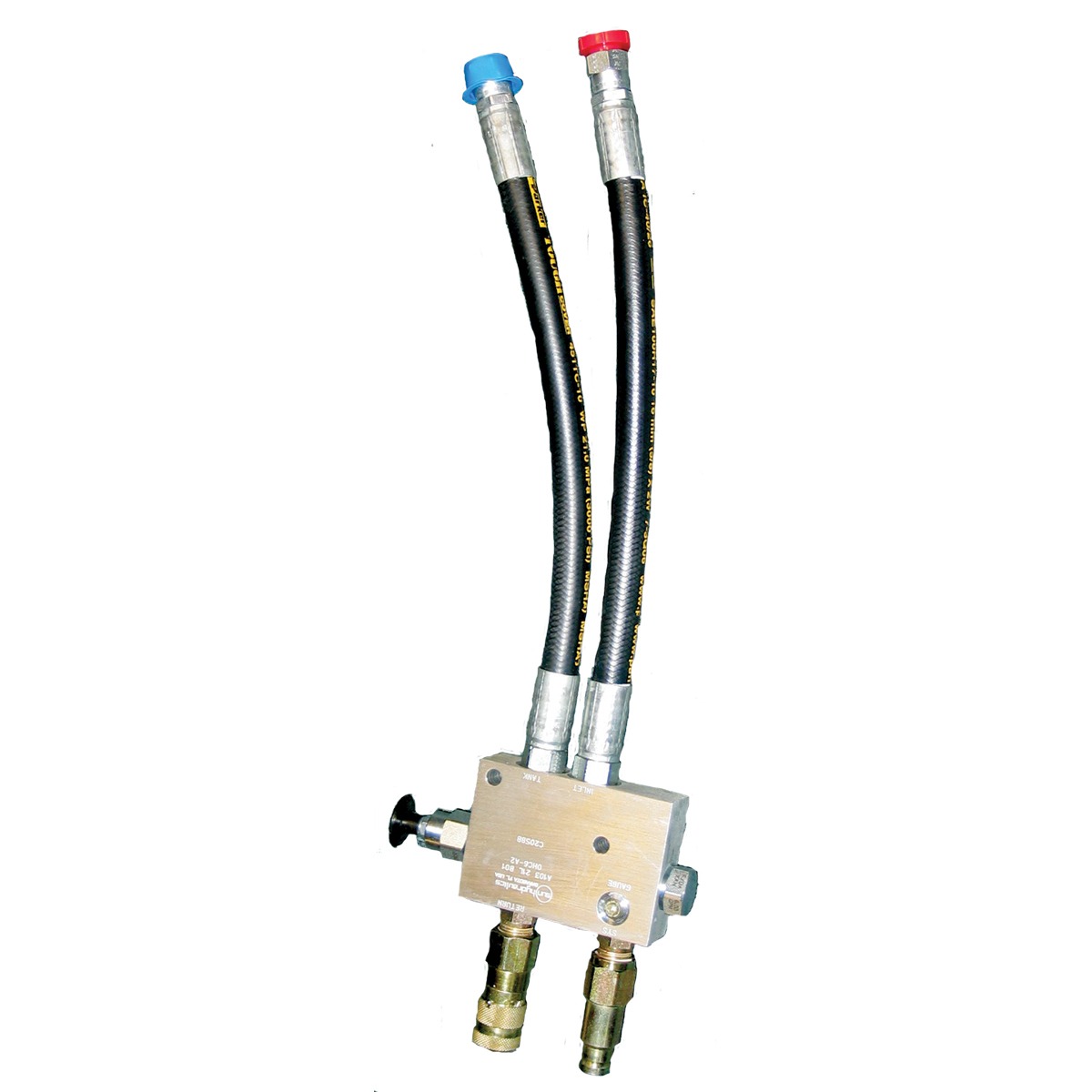

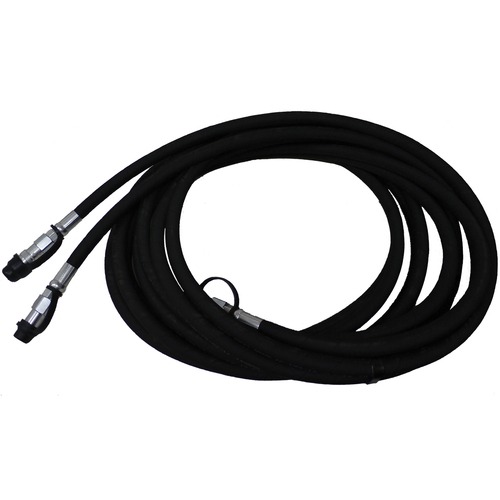

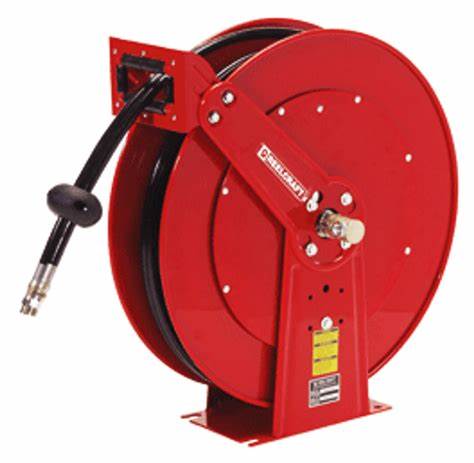

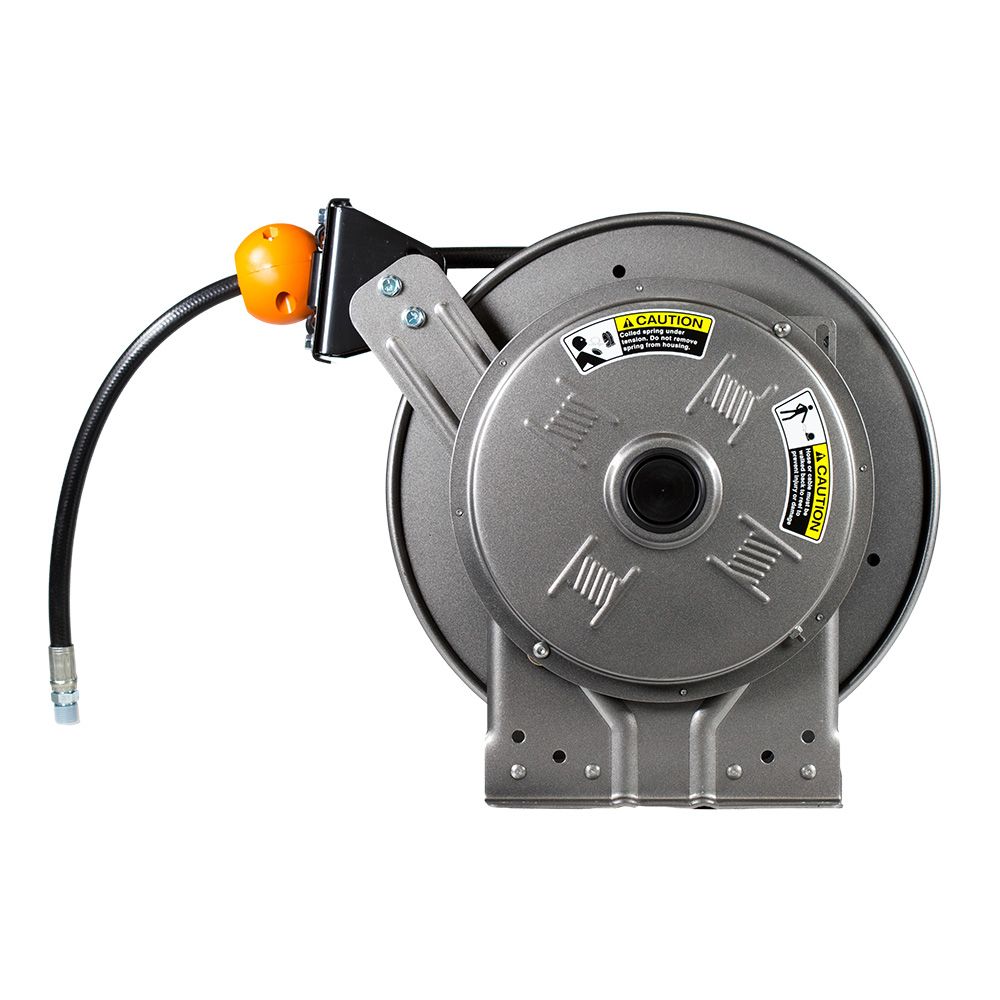

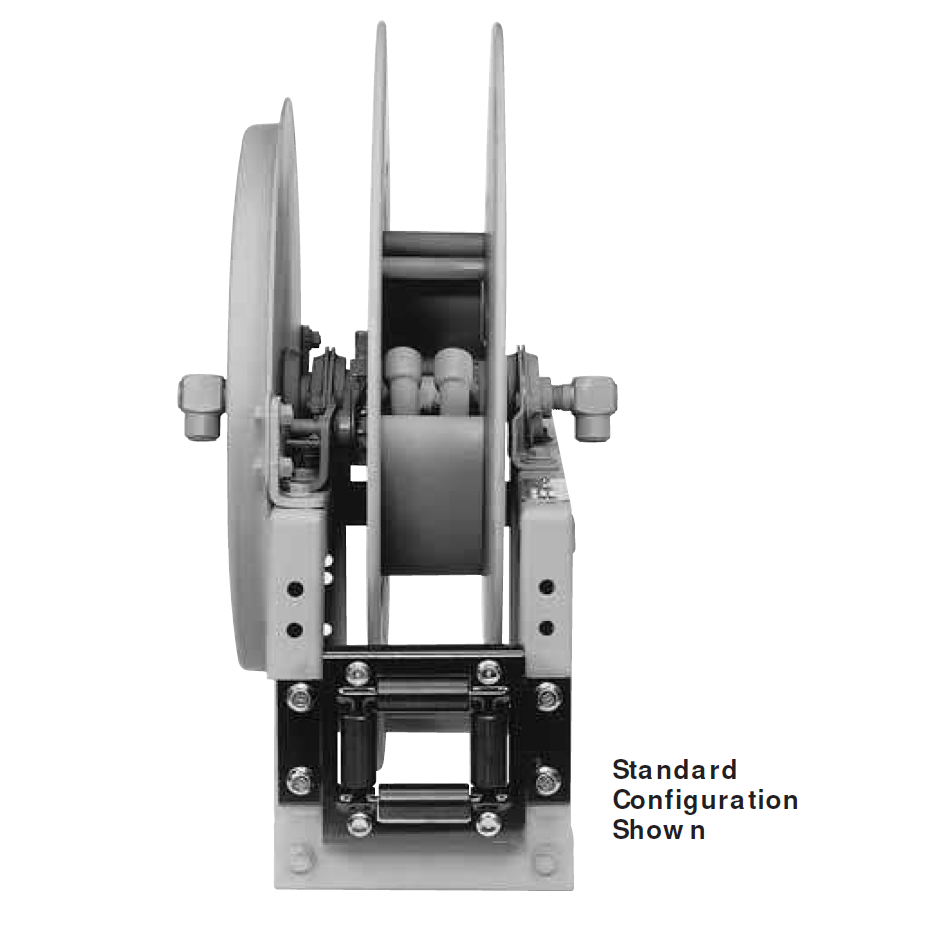

Hydraulic Hoses & Flow Adapters
Swipe to see more →
Also From Stanley Infrastructure

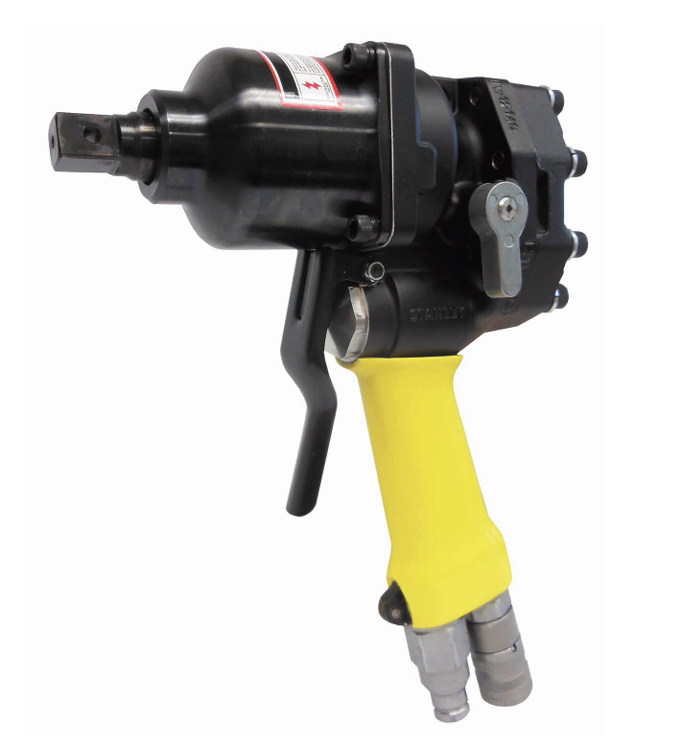

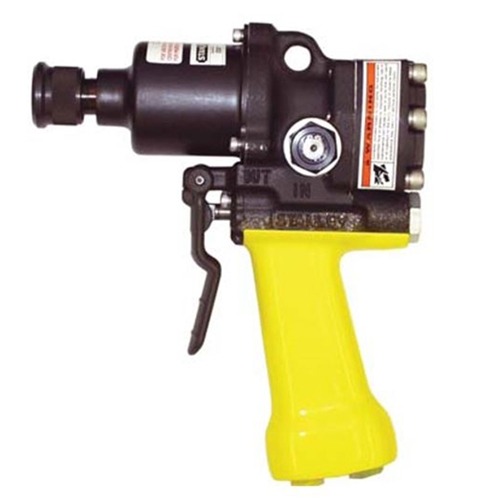

Related Products
More hydraulic tools and equipment from Intermountain Sales.
Intermountain Sales Inc.
Ready to protect your hydrant fleet?
Contact Intermountain Sales for a quote, demo, or more information about the IW-24. Serving municipalities, utilities, and contractors across Colorado, Utah, Wyoming, Montana, Idaho, and the Mountain West.
Stanley Hydrant Saver
Hydraulic Hydrant Wrench for Safe Fire Hydrant Valve Seat Removal
The IW24 Hydrant Saver Hydraulic Impact Wrench by Stanley is an innovative solution specifically designed for removing fire hydrant valve seats safely and efficiently. Ideal for utility and municipal professionals, this tool eliminates the need for excavation, saving time, labor, and costs while extending the life of hydrants.
Part Numbers:
- IW24160 -IW24
- IW24360 -IW24 U/W (Underwater)
Key Features
- Efficient Hydrant Valve Seat Removal:
- Removes seized hydrant valve seats in under five minutes without excavation.
- Powerful Performance:
- Delivers torque from 800 to 3,500 ft-lbs (1,088–4,760 Nm) for heavy-duty applications.
- Operates on hydraulic systems providing 7–12 GPM at 1,800–2,000 PSI.
- Cost-Effective:
- Pays for itself by avoiding the need to replace just two or three hydrants.
- Environmentally Friendly:
- Reduces waste by extending hydrant life and avoiding difficult-to-recycle replacements.
- User-Friendly Design:
- Large "D" handle and feathering trigger provide optimal control and reduced fatigue.
- The lightweight design (43 lbs.) allows easy transport and handling.
Specifications
- Drive Size: 1-1/2-inch square
- Torque: 800–3,500 ft-lbs. (1,088–4,760 Nm)
- Weight: 43 lbs. (19.5 kg)
- Dimensions:
- Length: 16.5 inches (41 cm)
- Width: 5.1 inches (13 cm)
- Flow Range: 7–12 GPM (26–45 LPM)
- Operating Pressure: 1,800–2,000 PSI (124–140 Bar)
- Materials:
- Stainless steel components for corroion resistance
- Durable housing to withstand demanding environments
Applications
- Municipal Fire Hydrant Maintenance:
- Efficiently repairs hydrants without manual removal or excavation.
- Utility Maintenance:
- Handles heavy bolting and fastening tasks across various applications.
- Industrial Use:
- Ideal for high-torque applications requiring precision and power.

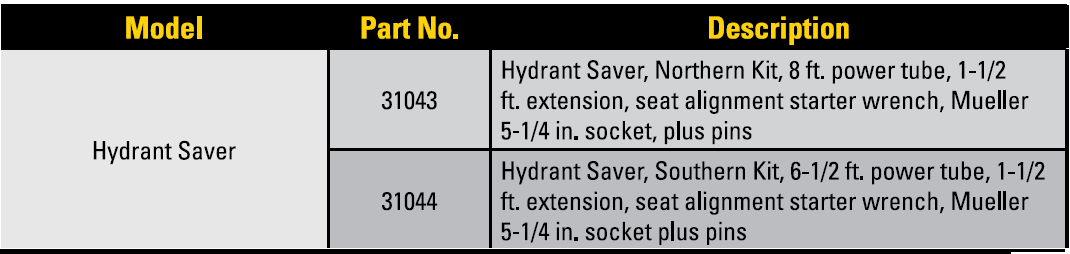

Hydrant Saver Kits
- Northern Kit:
- Includes an 8-foot power tube, 1.5-foot extension, alignment wrench, retaining pins, and Mueller 5-1/4" socket.
- Southern Kit:
- Features a 6.5-foot power tube with additional accessories for southern hydrant models.
Why Choose the IW24 Hydrant Saver?
The IW24 Hydrant Saver Hydraulic Impact Wrench offers a unique, efficient, and safe method for servicing fire hydrants and other heavy-duty applications. Its robust design and high torque capacity make it an essential tool for municipalities and utility professionals looking to reduce costs and streamline maintenance operations.
Contact Intermountain Sales Inc. today for a quote or more information about the IW24 Hydrant Saver Hydraulic Impact Wrench. Save time, money, and hydrants with the IW24
