CH-15
In stock
SKU
CH-15
₹999,999.00
CH15 Chipping Hammer
Part Numbers:
- CH15301
- CH1533101
- CH1553101
The CH15 Chipping Hammer is a compact and powerful hydraulic tool designed as a lightweight alternative to air-powered tools. Built for medium to heavy-duty jobs, it excels in applications such as light concrete breaking and chipping concrete or steel. Its exceptional power-to-weight ratio ensures maximum efficiency, while its compact size and balanced design make it ideal for confined, hard-to-reach locations.
Engineered for Comfort and Productivity
The CH15 features an ergonomically designed handle and grip, providing superior control and comfort for the operator. Its insulated body protects against shocks and heat, allowing for extended use without discomfort. This thoughtful design enhances productivity by reducing operator fatigue during demanding tasks.
Advanced Features
- Floating Trigger Design: The innovative floating trigger requires minimal pressure across its surface to activate the tool, ensuring effortless operation. The trigger is recessed within the handle to prevent accidental activation.
- Durable Bit Retainer: Equipped with a solid bit retainer, the CH15 accepts .580 hex shank oval collar tool bits, providing reliable performance and versatility.
- Flexible Models: Available in both 5 GPM (19 LPM) and 8 GPM (30 LPM) configurations, the CH15 can be tailored to meet a variety of job requirements. Underwater models are also available for specialized applications.
Power Supply Compatibility
The CH15 can be powered by the STANLEY® GT18 portable power unit or any hydraulic power supply capable of delivering 4-6 or 7-9 GPM (15-23 or 26-34 LPM) at 1000-2000 PSI (69-140 Bar). It is compatible with HTMA Type I or Type II circuits, ensuring seamless integration into existing hydraulic systems.

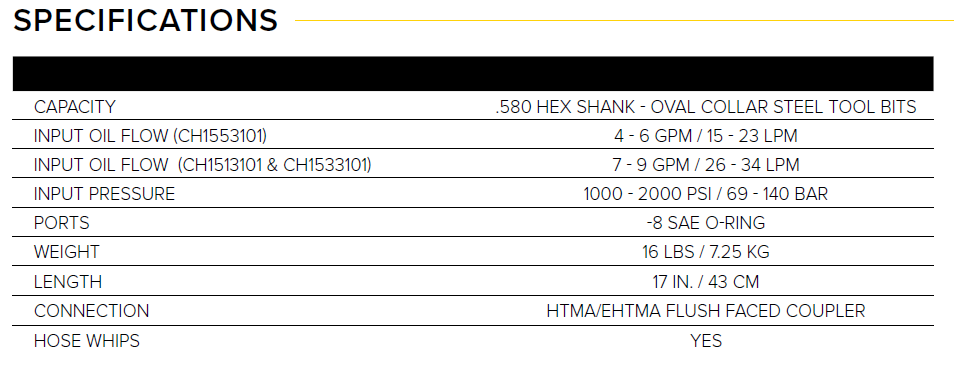

Specifications
- Capacity: .580 hex shank - oval collar steel tool bits
- Input Oil Flow:
- CH1553101: 4-6 GPM / 15-23 LPM
- CH1513101 & CH1533101: 7-9 GPM / 26-34 LPM
- Input Pressure: 1000-2000 PSI / 69-140 Bar
- Ports: -8 SAE O-Ring
- Weight: 16 lbs. / 7.25 kg
- Length: 17 in. / 43 cm
- Connection: HTMA/EHTMA flush-faced coupler
- Hose Whips: Yes

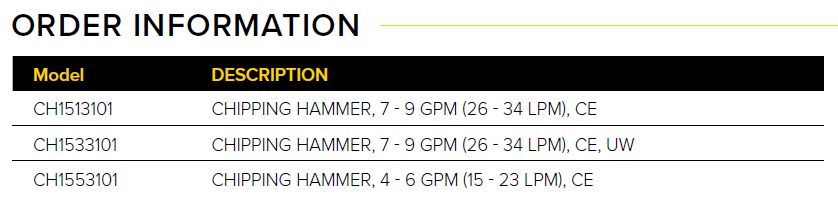

Available Models
- CH1513101: Chipping Hammer, 7-9 GPM (26-34 LPM), CE
- CH1533101: Chipping Hammer, 7-9 GPM (26-34 LPM), CE, Underwater
- CH1553101: Chipping Hammer, 4-6 GPM (15-23 LPM), CE

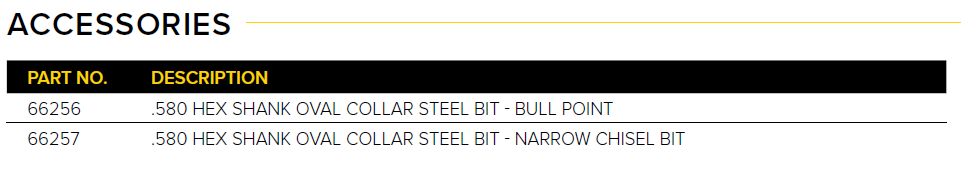

Optional Accessories

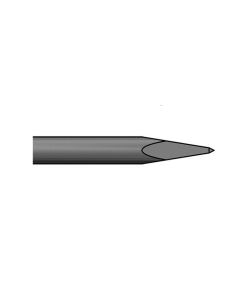

- 66256: .580 Hex Shank Oval Collar Steel Bit - Bull Point
- 66257: .580 Hex Shank Oval Collar Steel Bit - Narrow Chisel
The CH15 Chipping Hammer is your go-to solution for powerful, efficient, and versatile chipping and breaking tasks, providing unmatched performance and reliability in any environment.
