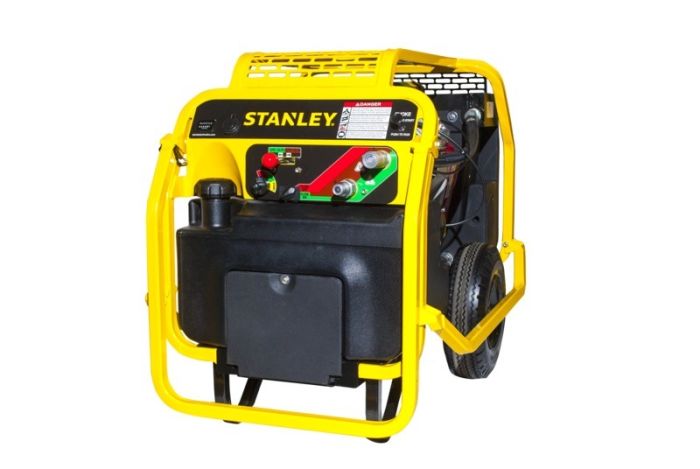

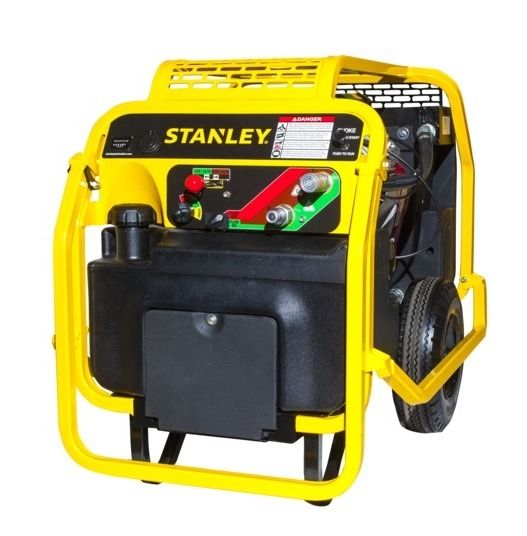

Stanley Infrastructure HP-8 18-HP
Hydraulic Power Unit
Part Number: HP8BD
The Stanley Infrastructure HP8 is an 18-Horsepower Power Unit that is a CE-compliant, gas-engine-driven hydraulic power unit mounted on a convenient cart. Powered by an 18 HP (13.25 kW) Briggs & Stratton V-Twin engine with electric start, this versatile unit is designed to power both HTMA Class I and II tools. A selector valve on the control panel allows the pump to deliver either 8 GPM (30 LPM) at 2,000 PSI (140 bar) or 5 GPM (20 LPM) at 2,000 PSI (140 bar).
Stanley Infrastructure portable hydraulic power units provide smooth and dependable hydraulic power for use in the shop or the field. Hydraulic power units (HPUs) deliver exceptional power in a compact design. Their fully sealed construction makes them ideal for challenging environments, including partial immersion and areas with sand, dust, or other harsh conditions.
Features:
- Fuel Tank Capacity: 5.5 gallons (20 liters); requires minimum grade 85 octane fuel.
- Hydraulic Circuits: One 5 GPM (19 LPM) circuit or one 8 GPM (30 LPM) circuit.
- Hydraulic Reservoir Capacity: 3 gallons (11 liters).
- HTMA/EHTMA Compatibility: Type I and II.
- Maximum Pressure: 2,000 PSI (138 bar).
- Auto Idle Feature: Reduces fuel consumption and noise levels.
- Safety Features: Tool circuit lockout during engine startup.
- Quartz Hour Meter: Tracks engine runtime for maintenance.
- Convenient Handling: Includes a lift-and-latch handle with fold-upside handles.
- Battery: 35 Ah sealed, non-spillable, maintenance-free battery in a covered compartment.
- Engine Features: Electric start with pressure lubrication, low oil shutdown, and spin-on oil filter.
- Hydraulic Filter: In-tank hydraulic filter with dipstick and easy access for replacement.
The HPU-18 is the perfect choice for powering your hydraulic tools while offering reliability, ease of use, and performance in even the harshest environments.
