Stanley DL07 Hydraulic Drill
Part Numbers:
Intermountain Sales Inc. is proud to offer the Stanley DL07 Hydraulic Drill, a versatile and powerful tool designed for professional drilling applications in wood, metal, and masonry. This drill combines the reliability of hydraulic power with advanced features to ensure optimal performance and durability.
Key Features:
- Instant Reverse Function: Enhances reliability and efficiency, making it ideal for various drilling tasks.
- Dual-Position Assist Handle: Provides increased control and performance, especially on tough drilling jobs.
- Heavy-Duty Wiper Seals: Protect the over-sized reversing spool, ensuring longevity and smooth operation by cleaning away dirt as the spool moves.
- Stanley Hyrevz™ Gear System: Delivers consistent power and torque for demanding applications.
- The term "Hyrevz" refers to a specific type of gear motor used in Stanley hydraulic tools. The Stanley Hyrevz™ gear motor is designed to deliver high performance and efficiency, particularly in demanding applications such as drilling and other hydraulic tool operations
- . This motor is known for its reliability and ability to maintain consistent power and torque, making it ideal for both standard and underwater use.

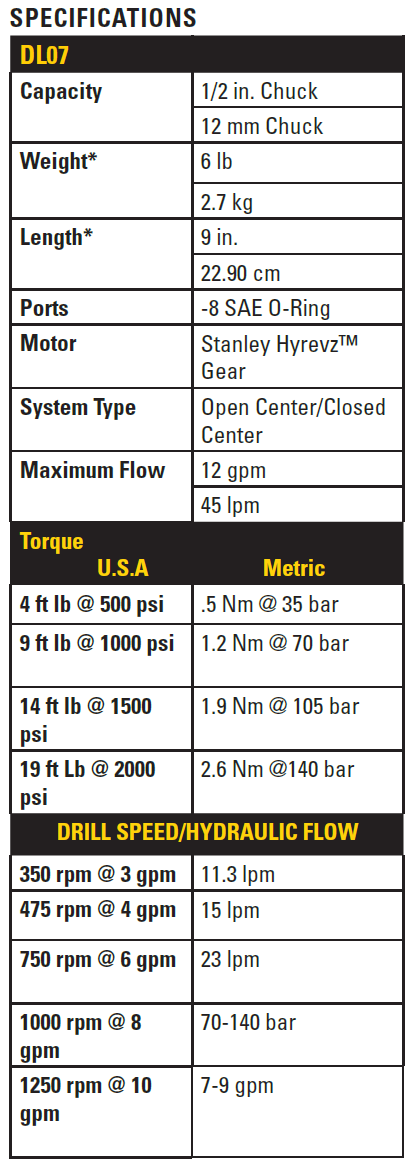

Specifications:
- Capacity: 1/2-inch Chuck (12 mm)
- Weight: 6 lb. (2.7 kg)
- Length: 9 inches (22.90 cm)
- Maximum Flow: 12 GPM (45 lpm)
- Torque:
- 4 ft lb. @ 500 psi (0.5 Nm @ 35 bar)
- 9 ft lb. @ 1000 psi (1.2 Nm @ 70 bar)
- 14 ft lb. @ 1500 psi (1.9 Nm @ 105 bar)
- 19 ft lb. @ 2000 psi (2.6 Nm @ 140 bar)
- Drill Speed/Hydraulic Flow:
- 350 rpm @ 3 GPM (11.3 lpm)
- 475 rpm @ 4 GPM (15 lpm)
- 50 rpm @ 6 GPM (23 lpm)
- 1000 rpm @ 8 GPM (70-140 bar)
- 1250 rpm @ 10 GPM (7-9 GPM)

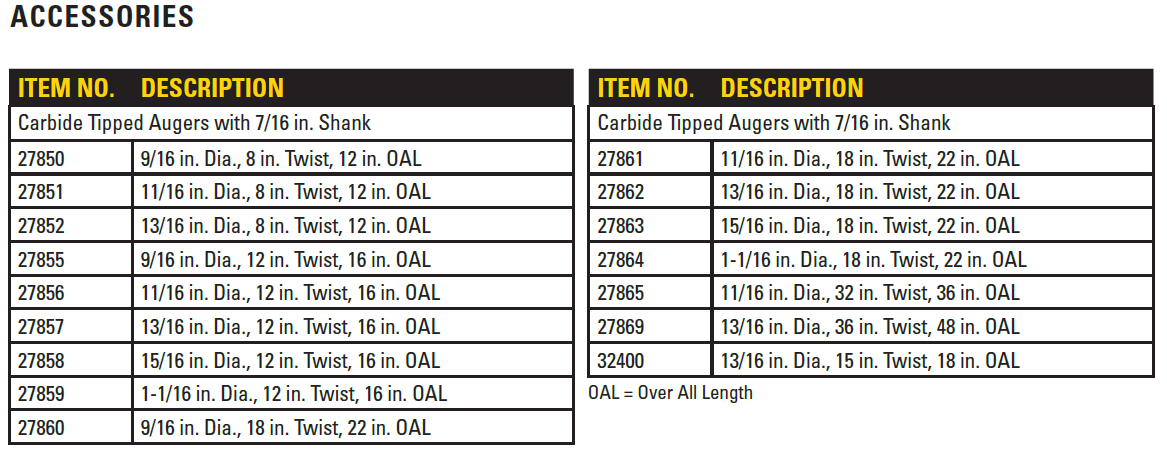

Accessories:
- Carbide-Tipped Augers: Available in various diameters and lengths, these augers are designed for durability and precision in drilling.
Warranty:
Stanley Hydraulic Tools and their associated parts are warranted against defects in materials and workmanship for twelve months from the date of purchase. This warranty becomes void if maximum flow and pressure ratings are exceeded.

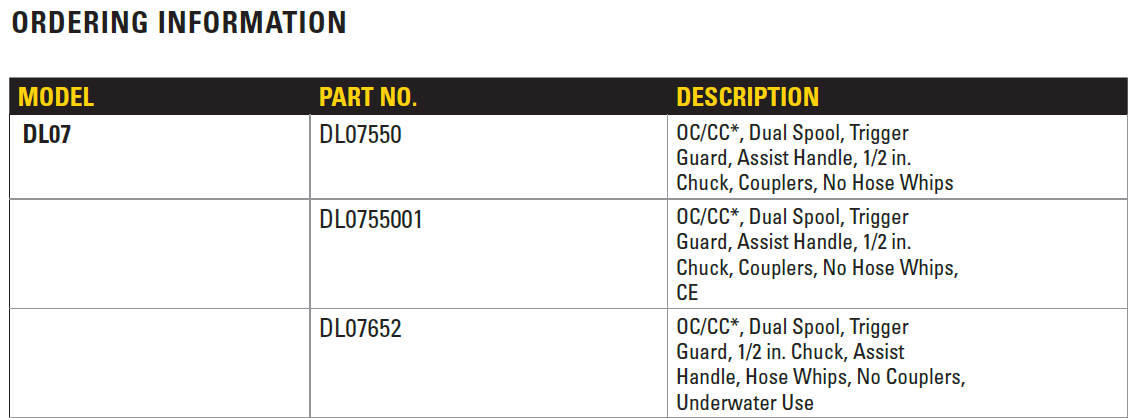

Ordering Information:
The DL07 Hydraulic Drill is available in multiple configurations to suit different needs, including options for dual spool, trigger guard, assist handle, and underwater use.
For more information or to place an order, please contact Intermountain Sales Inc.
