ERV_750_Low_Stack
In stock
SKU
ERV_750_Low_Stack
₹999,999.00
ERV-750 Extended Reach Valve Exerciser - Low Stack Version

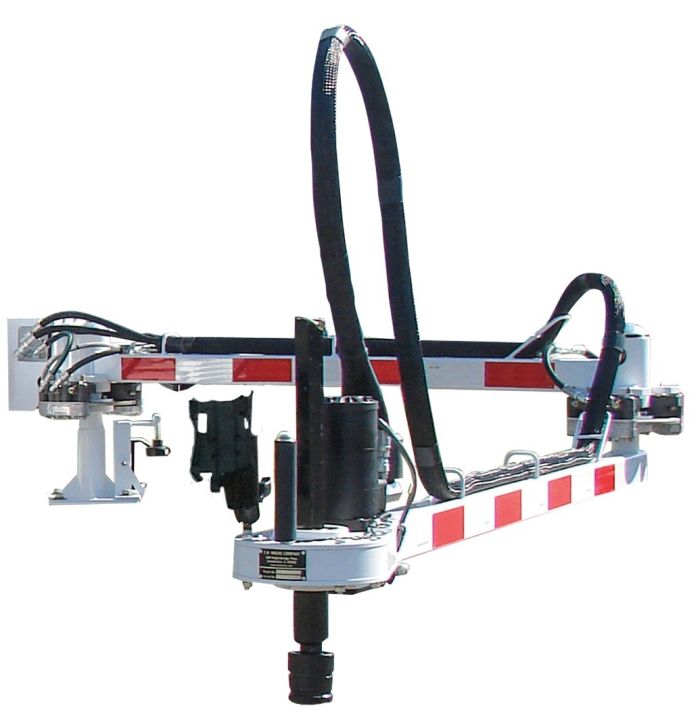

E.H. Wachs ERV-750 Extended Reach Valve Exerciser
Part Number: 79-000-01
The E.H. Wachs ERV-750 Extended Reach Valve Exerciser is a trusted choice for water system operators worldwide. Its name reflects its impressive 750 ft/lbs. (1015 Nm) of torque, which it delivers even when fully extended. Designed for both power and flexibility, the ERV-750 features a rotating and extendable arm that reaches up to 13 ft (3.96 m), providing the reach and performance you need.
The ERV-750 pivots effortlessly to access curbside valve boxes or hydrants. Its dual hydraulic locking disc brakes with a push-button release ensure the machine maintains its full torque force during operation. Built for durability, its arm is constructed from a robust 3-inch square steel box section, designed to resist twisting forces.
Available as a standalone option, the ERV-750 is ideal for water organizations of all sizes. The Low Stack model, designed for mounting on trailers, skids, and flatbed trucks, includes a mechanical lock to secure the exerciser during transit. The ERV-750 Low Stack is standard equipment on Compact LX, Standard LX, and Grand LX Trailers, as well as the Standard LX Skid system.
Key Features
- 750 ft/lbs. of torque with hands-free, "no-assumption" operation
- Dual hydraulic locking disc brakes with push-button release
- 13 ft reach from the mounting pedestal
- 3-inch square steel tube construction for maximum durability
- Mechanical lock system for secure storage during travel
- Variable speed operation: 5-30 RPM (30 RPM at recommended flow)
- Optional Bluetooth connectivity* for enhanced functionality
- Modular design with a single hydraulic motor and drive gear on a ball-bearing lockable slide for increased efficiency and compact dimensions
- Power requirements: 4-12 GPM @ 2000 PSI (8 GPM recommended)
- Fully compatible with VITALS software, enabling comprehensive data logging and synchronization between the HC-100 controller and your networked PC*
- Telescoping valve key operates standard AWWA 2-inch nuts
Additional Information
- Requires a ruggedized controller/data logger with built-in GPS, sold separately.
The ERV-750 Extended Reach Valve Exerciser delivers unmatched performance, durability, and efficiency, making it a versatile tool for any water maintenance operation.
