HD01 Hydraulic Hammer Drill – Versatile Power for Any Job
Part Numbers:
- HD01531
- HD0153101
- HD0153101D
The Stanley HD01 Hydraulic Hammer Drill is a high-performance tool designed for maximum versatility and efficiency across a range of applications. Whether you’re drilling in rock, concrete, wood, or masonry, the HD01 delivers exceptional results with a powerful hammer function and lightweight, maneuverable design. Its innovative features and robust build make it ideal for professionals in construction, utility, and industrial environments.
Key Features
- Powerful Performance:
- Delivers 4,200 blows per minute (bpm) and 800 rotations per minute (rpm) at 5 GPM for efficient drilling in tough materials.
- Three Operational Modes:
- Drill Mode: For precise drilling in wood and metal.
- Hammer Drill Mode: Combines drilling with percussion for rock and masonry applications.
- Hammer Only Mode: For chiseling or breaking.
- SDS Plus Chuck:
- Accepts SDS Plus bits and accessories for a wide range of drilling applications.
- Optional geared drill chuck and adapter are available for wood auger bits or twist drills.
- Built for Maneuverability:
- Lightweight design at 8.4 lbs (4.1 kg) with a D-handle and assist handle for superior control and reduced operator fatigue.
- Hydraulic Efficiency:
- Compatible with hydraulic circuits ranging from 3 to 9 GPM (11–34 lpm) at 750–2,000 psi (50–114 bar).
- Built-in flow control ensures optimal performance.

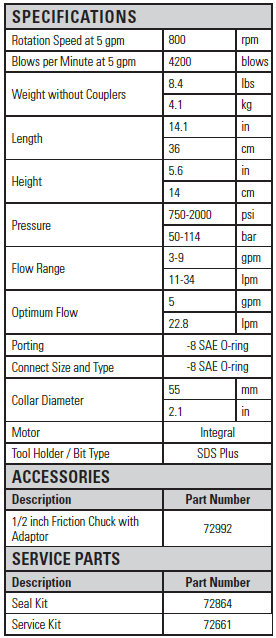

Specifications
- Weight: 8.4 lbs. (4.1 kg)
- Dimensions:
- Length: 14.1 inches (36 cm)
- Height: 5.6 inches (14 cm)
- Blows Per Minute: 4,200 bpm
- Rotation Speed: 800 rpm
- Pressure Range: 750–2,000 psi (50–114 bar)
- Flow Range: 3–9 GPM (11–34 lpm)
- Bit Compatibility: SDS Plus
- Service Kits:
- Seal Kit (Part Number: 72864).
- Service Kit (Part Number: 72661). Porting: -8 SAE O-ring
Applications
- Construction:
- Drilling and chiseling in concrete and rock.
- Utility Work:
- Ideal for applications requiring precision and power in confined spaces.
- Industrial Maintenance: Versatile for metal drilling, masonry work, and more.
Accessories and Service Parts
- Included:
- SDS Plus chuck and depth gauge attachment.
- Optional:
- ½-inch friction chuck with adapter (Part Number: 72992).
