Diamond Wire Guillotine® 416 Pipe Saw

E.H. Wachs DW Guillotine® 416 Diamond Wire Saw
Part Number: 29-000-16

The DW Guillotine® 416 is the larger counterpart to the DWG 208, engineered to cut 4-inch to 16-inch (DN100-400) pipes. It handles a wide variety of materials, including steel, ductile iron, cast iron, concrete (CA), poly, PVC, and mixed media. Built with stainless steel and aluminum for corrosion resistance, its collapsible, folding arm design ensures easy transport and storage.

The DWG 416 features Wachs' signature quick and secure chain mounting system, preventing kickback caused by binding during pipe compression or shifting. Hydraulically powered with a sealed loop, it can operate in extreme conditions, including full water immersion, making it ideal for tight or restrictive spaces.

The diamond wire technology delivers exceptional durability, providing the DWG 416 with one of the lowest costs per cut in the industry. The high-speed diamond-infused wire rotates radially during cutting, ensuring all diamond elements engage with the material for efficient, clean cuts. Beyond safety, the reduced consumable costs over the machine's life offset its initial investment, offering long-term value.

Key Features

User-Friendly Operation: Easy setup and top-mounted controls for feed and wire speed.
Versatile Cutting Capability: Cuts 4-inch to 16-inch (DN100-400) pipe. Including steel, ductile iron, PVC, and cast iron.
Safe and Efficient: No binding or kickback like traditional saws; produces clean, straight cuts.
Durable Construction: Corrosion-resistant aluminum and stainless steel.
Compact Design: Collapsible arms reduce excavation needs and improve portability.

Ease of Operation
The load-sensing feature enhances wire life and cutting speed.
Feed pressure indicator monitors wire stress.
Hand grips for two-person mounting, with lightweight construction enabling single-person operation.
User-replaceable clamp contact pads and wheel inserts.
Mounts vertically or horizontally for flexibility.
Compatible with Wachs TM-7 or standard hydraulic power units (HPUs).

Standard Equipment
(Qty - 1) Hydraulic Diamond Wire Guillotine
(Qty - 1) High-density diamond wire loop assembly
(Qty - 1) Operations manual
(Qty - 1) Spray coolant and washdown system

Optional Equipment
Powder-coated tube steel/stainless wheeled storage/transport carrier (DWG 416 Carrier 29-4020-16).
Spare/replacement diamond wire loop assembly (DWG 416 Wire 29-616-00).

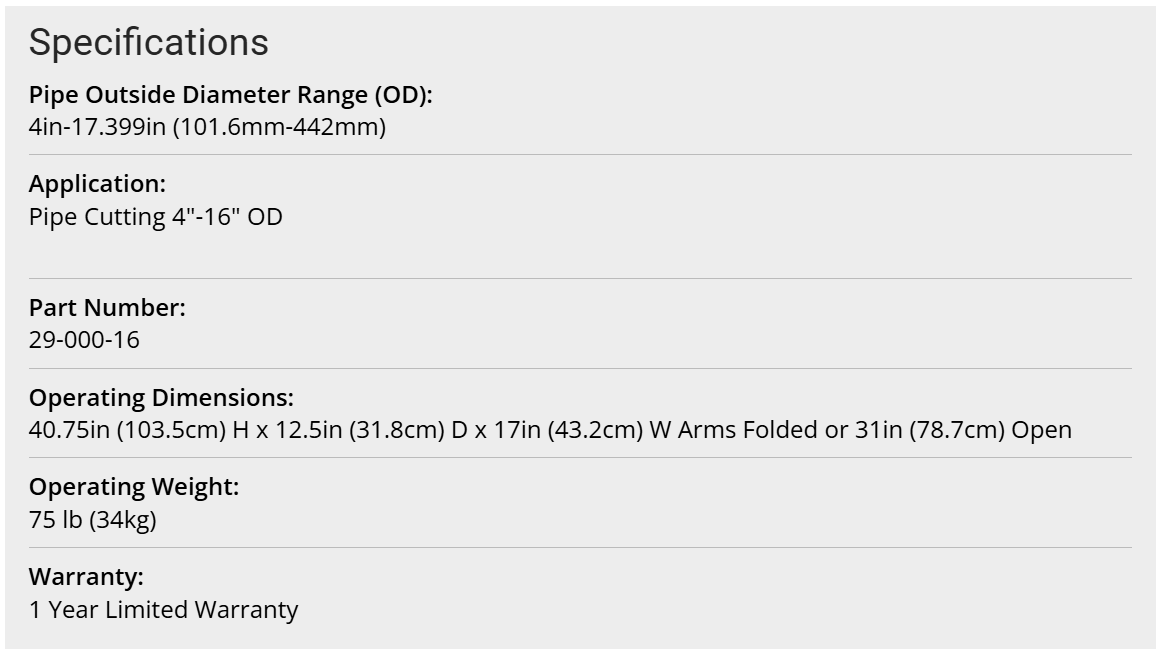

Specifications
Cutting Wire: Quick-change continuous loop diamond wire cutting element.
Hydraulic Drive: HTMA Class II, 8 GPM @ 2000 psi (30 LPM @ 137.9 bar).
Material Compatibility: Cold cuts all pipe and bar materials.
Machine Capacity: 16 inches (DN400) width and height.
Feed Rate: Variable, depending on material and density.
Installation Method: Standard mounting chain.
Controls: Single crank manual feed; motor on/off.
Construction: Aluminum and stainless steel.
Clamping Pads: User-replaceable, crush-resistant nylon pads.
Finish: Natural satin.
