Stanley TP 08

In stock

SKU

Stanley TP 08

₹999,999.00

TP08 Trash Pump – Built for High-Volume Performance

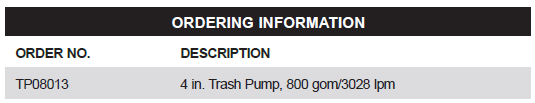

Part Numbers:

TP08013

The Stanley TP08 Trash Pump (Part Number: TP08013) is a lightweight, heavy-duty hydraulic pump designed to handle challenging dewatering tasks with ease. Engineered to manage water, sand slurries, gravel, sludge, and solids up to 3 inches (75 mm) in diameter, the TP08 combines powerful performance with exceptional durability. Its submersible and self-priming design allows it to run dry without damage, ensuring reliability in demanding conditions.

Key Features

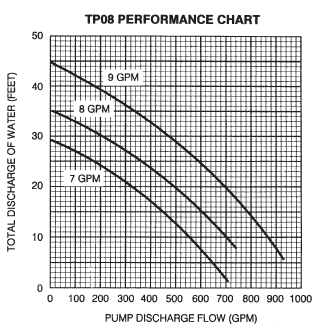

High Capacity: Pumps up to 800 GPM (3,028 LPM) at a 10-foot (2.54 m) head, providing efficient operation for high-volume applications.
Self-Priming and Submersible: Eliminates the need for priming, making it easy to deploy in any environment.
Robust Construction:
Volute: Fabricated from all-steel for durability, with replaceable UHMW polyethylene wear plates to extend pump life.
Impeller: Abrasion-resistant cast iron impeller withstands tough conditions.
Powerful Hydraulic Motor: Stanley's HYREVZ™ hydraulic motor is self-lubricating for dependable, long-term performance.
Portable Design: Weighs only 59 lbs. (27 kg) and features a convenient handle for easy single-operator transport.
Low Hydraulic Flow Requirement: Operates efficiently with as little as 9 GPM (34 LPM) from an HTMA Type II hydraulic circuit.

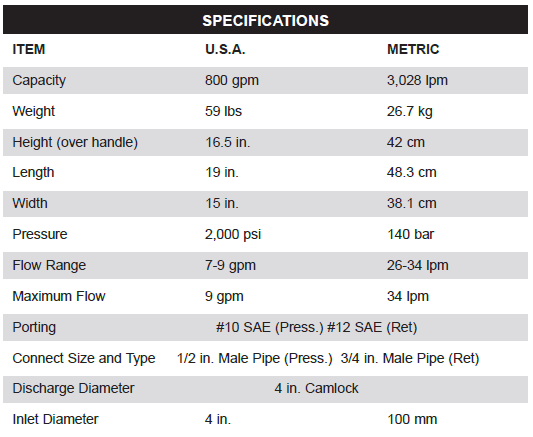

Specifications

Weight: 59 lbs. (27 kg)
Dimensions:
Height: 16.5 in. (42 cm)
Length: 19 in. (48.3 cm)
Width: 15 in. (38.1 cm)
Discharge and Inlet:
Discharge Size: 4 in. Camlock
Inlet Diameter: 4 in. (100 mm)
Hydraulic Requirements:
Flow Range: 7–9 GPM (26–34 LPM)
Pressure: 2,000 PSI (140 Bar)
Solid Handling Capacity: Up to 3 in. (75 mm) diameter.
Connections:
Pressure Port: 1/2 in. Male Pipe (#10 SAE) Return Port:
3/4 in. Male Pipe (#12 SAE)

Applications

Construction Sites: Efficiently dewater trenches, foundations, and excavations.
Manhole Pumping: Removes water and sludge with ease in confined spaces.
Oil Skimming: Handles industrial cleanup and environmental remediation tasks.
Flood Control: Ideal for emergency water removal in disaster recovery scenarios.

Warranty

The TP08 Trash Pump is backed by Stanley Hydraulic Tools' 12-month warranty against defects in materials and workmanship, ensuring peace of mind and reliable performance. Warranty coverage may be void if maximum flow and pressure ratings are exceeded.
