Stanley EPX10 Pin Brazer
In stock
SKU
EPX10 Pin Brazer
₹999,999.00
Stanley Infrastructure EPX10 Pin Brazer

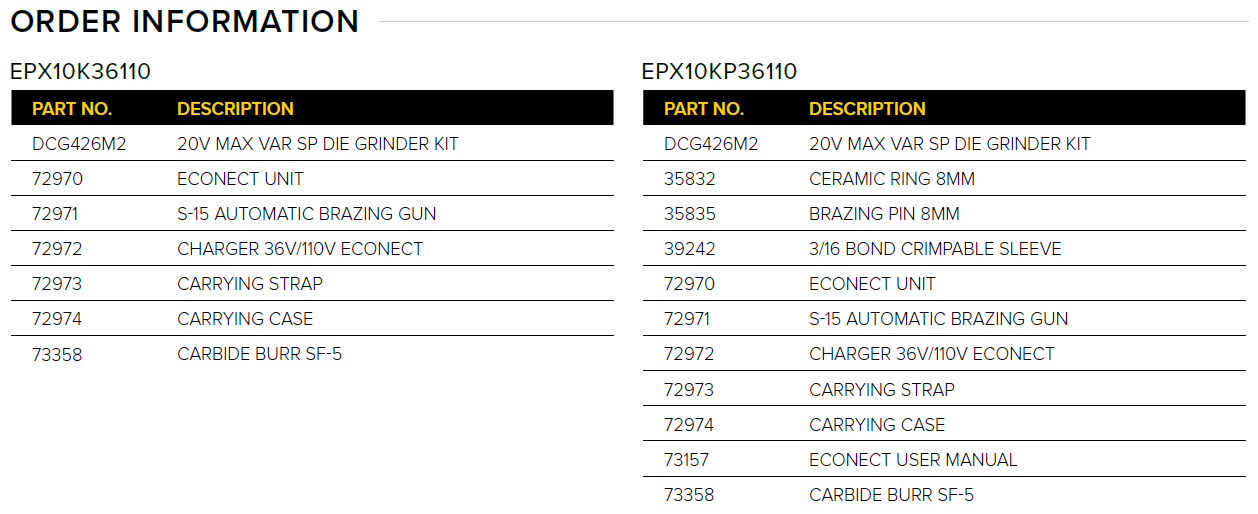

Part Number: EPX10K36110
Revolutionizing Signal and Track Connections for Enhanced Safety and Reliability
The Stanley Infrastructure EPX10 Pin Brazer is a professional pin brazing system engineered for
creating permanent, low-resistance electrical connections on underground utilities. Designed
for utility contractors, municipalities, and public works departments, the EPX10 delivers fast,
repeatable, and code-compliant pin brazing connections that outperform mechanical grounding methods
in long-term reliability.
Built for tracer wire grounding, cathodic protection, and underground utility bonding, the EPX10
Pin Brazer provides a proven solution for maintaining electrical continuity on steel, cast iron,
and ductile iron pipe systems in harsh underground environments.Professional Pin Brazing for Permanent Utility Grounding
Pin brazing creates a molecular bond between the brazing pin and the base metal, producing a
stronger and more reliable electrical connection than clamps or compression fittings. The EPX10
Pin Brazer is designed to deliver consistent, low-resistance conductivity that remains stable
over time, even in corrosive soil conditions.Unlike mechanical grounding methods that can loosen, corrode, or degrade, pin brazing provides a
permanent electrical bond essential for accurate underground utility locating and long-term system
performance.Why Utility Professionals Choose the EPX10 Pin Brazer
Fast, One-Step Pin Brazing
Create permanent pin brazed connections in seconds with no soldering, no preheating, and minimal
surface preparation. The EPX10 significantly reduces installation time while delivering consistent,
high-quality brazes in the field.Consistent Low-Resistance Electrical Bonds
Each pin braze produces uniform electrical conductivity, improving tracer wire signal strength and
ensuring dependable grounding for underground utility locating applications.Designed for Underground Utility Applications
The EPX10 is purpose-built for water, gas, electric, and telecom utilities where reliable grounding
and bonding are critical to safety, compliance, and operational efficiency.Safer Alternative to Open-Flame Methods
Pin brazing with the EPX10 reduces fire risk compared to open-flame welding or soldering, making it
ideal for confined spaces, valve vaults, and utility corridors.Common Pin Brazing Applications
- Tracer wire grounding for underground utilities
- Cathodic protection system connections
- Valve boxes and valve assemblies
- Fire hydrants and fittings
- Steel, cast iron, and ductile iron pipe
- Permanent underground electrical bonding
Built for Utility Crews and Municipal Use
The EPX10 Pin Brazer is engineered for demanding jobsite conditions. Its rugged construction supports
reliable performance in wet, dirty, and high-traffic environments. Straightforward operation minimizes
training requirements while delivering consistent, professional pin brazing results across utility
systems.
Improve Tracer Wire Performance and Utility Locating Accuracy
Proper pin brazing directly impacts tracer wire signal strength and underground utility locating
accuracy. Poor grounding connections lead to weak signals, false readings, and costly rework. The
EPX10 eliminates these issues by delivering permanent, corrosion-resistant pin brazed bonds that
maintain electrical continuity for the life of the utility.
Stanley Infrastructure Pin Brazing Technology
Stanley Infrastructure is a trusted name in professional utility tools, and the EPX10 Pin Brazer
reflects that legacy. Designed for real-world utility grounding and bonding, the EPX10 provides
pin brazing performance utility professionals rely on every day.

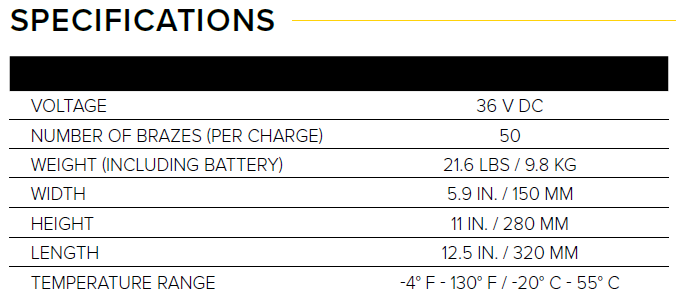

Specifications
- EPX10 Pin Brazing System
- Voltage: 36 V DC
- Weight (with battery): 21.6 lbs. (9.8 kg)
- Dimensions: 5.9 in. W x 11 in. H x 12.5 in. L
- Battery Life: 50 brazes per charge
- EP10/EP30/EPX10 Pin Brazers
- SafeBond Brazing Gun (BG20200)
- Heavy-Duty SafeBond Brazing Gun (BG20400) Charging Time: Fully charged in 2-3 hours
Shear Strength:
Pin Brazing Application: 838 lbs (3730 N)
SafeBond Application: 1852 lbs (8240 N)

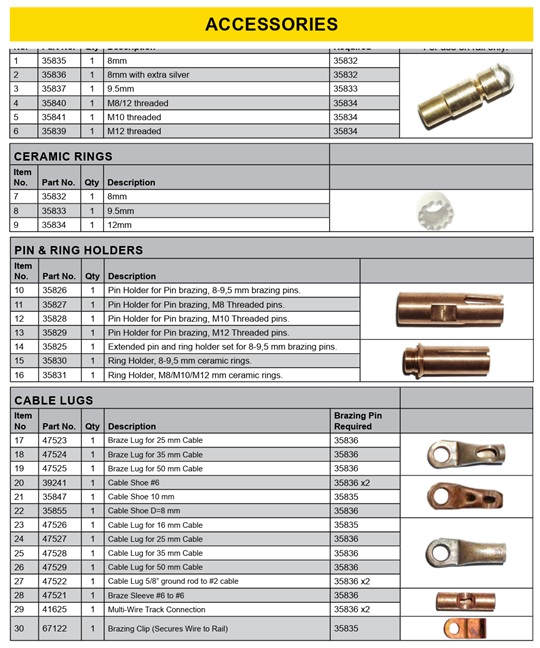

Accessories
- Ceramic Rings (8mm, 12mm)
- Brazing Pins (Standard, Extra Silver)
- Ground Clamp Assemblies
- Rail Bond Wires and Connectors
Applications
Pin Brazing and SafeBond systems are ideal for:
- Signal Bonding
- Power Return and Traction Bonding
- Grounding Connections
These systems are trusted for their unmatched safety, durability, and performance, providing reliable solutions for railways, utilities, and beyond.
Order Your System Today
Intermountain Sales Inc. is your trusted distributor of Stanley Pin Brazing and SafeBond systems. Contact us to learn more or request a quote for your next project.
Stanley Infrastructure EPX10 Pin Brazer
Part Number: EPX10
The Stanley Infrastructure EPX10 Pin Brazer is a professional pin brazing system engineered for creating permanent, low-resistance electrical connections on underground utilities. Designed for utility contractors, municipalities, and public works departments, the EPX10 delivers fast, repeatable, and code-compliant pin brazing connections that outperform mechanical grounding methods in long-term reliability.
Built for tracer wire grounding, cathodic protection, and underground utility bonding, the EPX10 Pin Brazer provides a proven solution for maintaining electrical continuity on steel, cast iron, and ductile iron pipe systems in harsh underground environments.
Professional Pin Brazing for Permanent Utility Grounding
Pin brazing creates a molecular bond between the brazing pin and the base metal, producing a stronger and more reliable electrical connection than clamps or compression fittings. The EPX10 Pin Brazer is designed to deliver consistent, low-resistance conductivity that remains stable over time, even in corrosive soil conditions.
Unlike mechanical grounding methods that can loosen, corrode, or degrade, pin brazing provides a permanent electrical bond essential for accurate underground utility locating and long-term system performance.
Why Utility Professionals Choose the EPX10 Pin Brazer
Fast, One-Step Pin Brazing
Create permanent pin brazed connections in seconds with no soldering, no preheating, and minimal surface preparation. The EPX10 significantly reduces installation time while delivering consistent, high-quality brazes in the field.
Consistent Low-Resistance Electrical Bonds
Each pin braze produces uniform electrical conductivity, improving tracer wire signal strength and ensuring dependable grounding for underground utility locating applications.
Designed for Underground Utility Applications
The EPX10 is purpose-built for water, gas, electric, and telecom utilities where reliable grounding and bonding are critical to safety, compliance, and operational efficiency.
Safer Alternative to Open-Flame Methods
Pin brazing with the EPX10 reduces fire risk compared to open-flame welding or soldering, making it ideal for confined spaces, valve vaults, and utility corridors.
Common Pin Brazing Applications
- Tracer wire grounding for underground utilities
- Cathodic protection system connections
- Valve boxes and valve assemblies
- Fire hydrants and fittings
- Steel, cast iron, and ductile iron pipe
- Permanent underground electrical bonding
Built for Utility Crews and Municipal Use
The EPX10 Pin Brazer is engineered for demanding jobsite conditions. Its rugged construction supports reliable performance in wet, dirty, and high-traffic environments. Straightforward operation minimizes training requirements while delivering consistent, professional pin brazing results across utility systems.
Improve Tracer Wire Performance and Utility Locating Accuracy
Proper pin brazing directly impacts tracer wire signal strength and underground utility locating accuracy. Poor grounding connections lead to weak signals, false readings, and costly rework. The EPX10 eliminates these issues by delivering permanent, corrosion-resistant pin brazed bonds that maintain electrical continuity for the life of the utility.
Stanley Infrastructure Pin Brazing Technology
Stanley Infrastructure is a trusted name in professional utility tools, and the EPX10 Pin Brazer reflects that legacy. Designed for real-world utility grounding and bonding, the EPX10 provides pin brazing performance utility professionals rely on every day.
