SPL-31 Spike Puller

In stock

SKU

SPL-31 Spike Puller

₹999,999.00

SPL31 Hydraulic Spike Puller

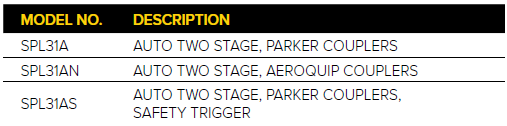

Part Numbers:

SPL31A: Auto Two-Stage with Parker Couplers.
SPL31AN: Auto Two-Stage with Aeroquip Couplers.
SPL31AS: Auto Two-Stage with Parker Couplers and Safety Trigger.

The SPL31 Hydraulic Spike Puller from Stanley sets the industry standard for efficient and safe spike removal in railroad maintenance. With its automatic dual-stage valve, ergonomic design, and powerful pulling force, this tool ensures maximum productivity while minimizing operator fatigue.

Key Features:

Industry-Leading Pulling Force: Delivers an impressive 16,647 lbs (7,550 kg) of pulling force, ensuring effortless spike removal in all rail maintenance tasks.
Automatic Dual-Stage Valve: Reduces spike kick-back, enhancing safety and operator control.
Enhanced Ergonomics: Redesigned handle improves durability, comfort, and ease of use, offering precise alignment and a superior grip.
Versatile Operation: Spike extraction can be performed from any position, simplifying even the most challenging tasks.
Durable Construction: Composite hydraulic cylinder and updated seal design provide maximum strength, extended lifespan, and longer service intervals.

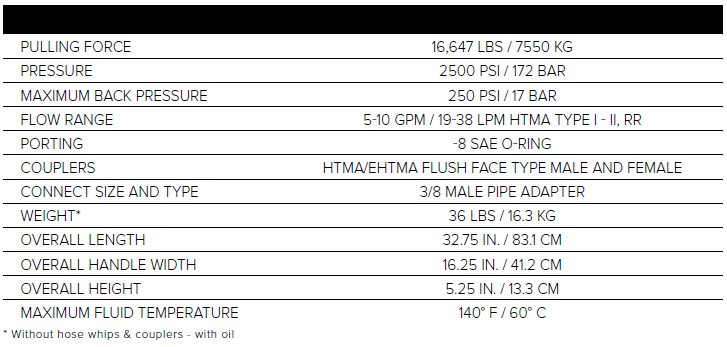

Specifications:

Pressure: 2,500 PSI (172 bar).
Flow Range: 5–10 GPM (19–38 LPM) HTMA Type I–II, RR.
Maximum Back Pressure: 250 PSI (17 bar).
Weight: 36 lbs. (16.3 kg) without hose whips and couplers (with oil).
Dimensions:
Length: 32.75 in. (83.1 cm).
Handle Width: 16.25 in. (41.2 cm).
Height: 5.25 in. (13.3 cm).
Maximum Fluid Temperature: 140°F (60°C).
Couplers: HTMA/EHTMA Flush Face Type (Male and Female).

Contact Us for Pricing and Availability
For current pricing, availability, or assistance with selecting the right model for your needs, please contact Intermountain Sales Inc. Our experienced team is here to help you find the perfect solution for your railroad maintenance projects

Contact Us for Pricing and Availability

For current pricing, availability, or assistance with selecting the right model for your needs, please contact Intermountain Sales Inc. Our experienced team is here to help you find the perfect solution for your railroad maintenance projects.
