Hydra Tech HT74DKV Hydraulic Power Unit

In stock

₹999,999.00

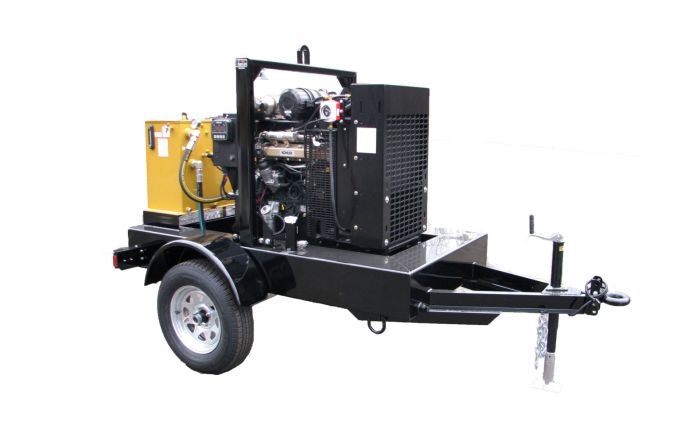

HT74DKV Portable Hydraulic Power Unit

Part Number: HT74DKV

The HT74DKV Portable Hydraulic Power Unit is a high-capacity diesel-powered solution, engineered to deliver exceptional hydraulic performance in demanding environments. Featuring a 74 HP Kohler KDI2504T diesel engine compliant with EPA Tier 4 Final emission standards, this unit offers variable hydraulic output up to 28 GPM at 2900 PSI. Its robust design, combined with sound attenuation features, makes it ideal for applications requiring powerful yet quiet operation.

Key Features:

High-Performance Engine: Equipped with a Kohler KDI2504T diesel engine delivering 74 HP at 2200 RPM, meeting stringent EPA Tier 4 Final standards.
Variable Hydraulic Output: Adjustable flow rates up to 28 GPM (106 LPM) and operating pressure up to 2900 PSI for versatile hydraulic tool and pump applications.
Large Reservoir and Fuel Capacity: Features a 50-gallon (190 liters) hydraulic oil reservoir and 81-gallon (307 liters) fuel tank, supporting extended operations with minimal refueling.
Durable Design: Built with a heavy-duty skid frame chassis and a single-point lifting bracket for secure transport and stability.
Sound Attenuation: Includes an enclosure with soundproofing to reduce noise levels, making it suitable for residential and noise-sensitive areas.
Safety and Monitoring:
System relief valve for operational safety.
Liquid-filled pressure gauge and fluid level/temperature gauge for real-time monitoring.
Automatic engine safety shutdown for protection.

Specifications:

Engine: Kohler KDI2504T Diesel (EPA Tier 4 Final)
Power Output: 74 HP (55 kW) @ 2200 RPM
Hydraulic Output: Variable, max. 28 GPM (106 LPM)
Operating Pressure: Up to 2900 PSI (199 Bar)
Hose Port Size: 1" NPT (Pressure), 1" (Return), 1/2" (Case Drain)
Oil Filtration: 10 Micron (Standard)
Reservoir Capacity: 50 U.S. gallons (190 liters)
Fuel Tank Capacity: 81 U.S. gallons (307 liters)
Fuel Consumption: Approx. 3 U.S. gallons/hour (11.4 liters/hour)
Weight: 3,426 lbs. (1,554 kg)

Applications:

Driving hydraulic pumps for dewatering, slurry handling, and fluid management.
Operating hydraulic tools and equipment in construction, industrial, and utility environments.

Why Choose the HT74KV?

With its powerful engine, variable hydraulic output, and advanced sound attenuation features, the HT74DKV Hydraulic Power Unit is the perfect solution for demanding projects requiring both performance and noise control. Its durable construction and safety features ensure reliable operation in challenging conditions.

Contact Intermountain Sales Inc. today to learn more about the HT74DKV Portable Hydraulic Power Unit or to request a quote!
