Hydra-Tech_HT_20_G_Hydraulic_Power_Unit

In stock

₹999,999.00

HT20G Hydraulic Power Unit

Part Number: HT20G

Overview

The HT20G Hydraulic Power Unit by Hydra-Tech and sold at Intermountain Sales Inc. is a robust and efficient solution designed for continuous duty applications. Powered by a reliable 22 HP Honda GX690 gasoline engine, this unit is perfect for powering hydraulic pumps and other equipment. Its extended run fuel tank and extra oil cooling ensure optimal performance and ease of handling.

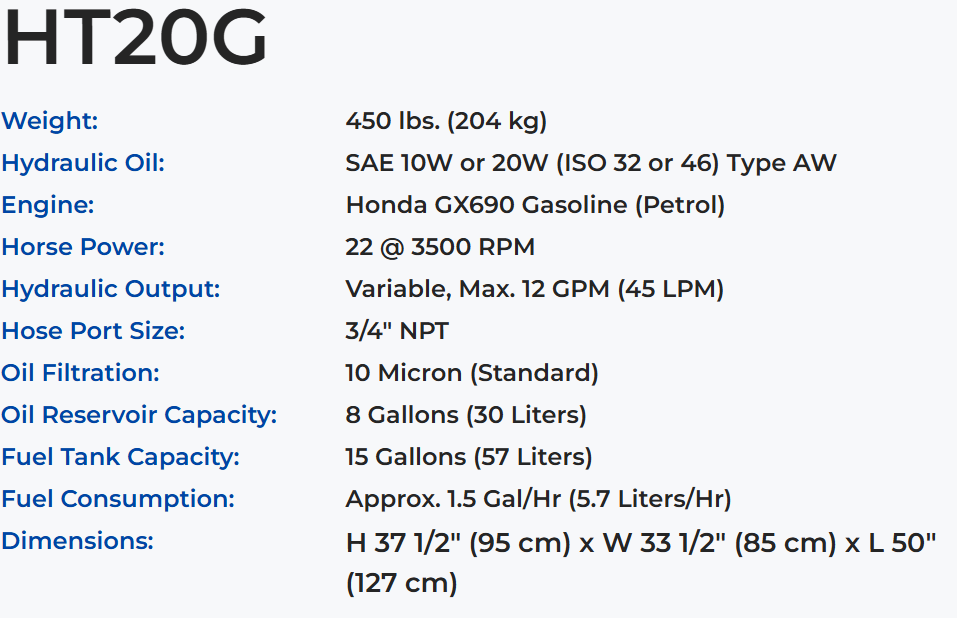

Key Specifications

Weight: 450 lbs. (204 kg)
Hydraulic Oil: SAE 10W or 20W (ISO 32 or 46) Type AW Engine: Honda GX690 Gasoline (Petrol)
Horsepower: 22 @ 3500 RPM
Hydraulic Output: Variable, Max. 12 GPM (45 LPM)
Hose Port Size: 3/4" NPT
Oil Filtration: 10 Micron (Standard)
Oil Reservoir Capacity: 8 Gallons (30 Liters)
Fuel Tank Capacity: 15 Gallons (57 Liters)
Fuel Consumption: Approx. 1.5 Gal/Hr. (5.7 Liters/Hr.)
Dimensions: H 37 1/2″ (95 cm) x W 33 1/2″ (85 cm) x L 50″ (127 cm)

Features
- Powerful Engine: Equipped with a 22 HP Honda OHV gas engine, ensuring reliable performance.
- Extended Run Fuel Tank: Allows for longer operation periods without frequent refueling.
- Extra Oil Cooling: Enhances the unit's efficiency and longevity.
- Versatile Pump Options: Available with a fixed displacement gear pump or a pressure compensated piston pump.
- Variable Speed Throttle: Controls hydraulic output for precise operation.
- Easy Handling: Designed for ease of use with features like a roll cage frame and single point lifting eye.
- High Efficiency: Includes a hydraulic oil cooler with thermostatic fan control and quick-disconnect hose couplings.
- Safety and Maintenance: Features such as a system relief valve, tank top filler/strainer, liquid-filled pressure gauge, spin-on return filter with indicator, and fluid level and temperature gauges ensure safe and easy maintenance.
Applications
The HT20G is ideal for powering hydraulic tools and equipment in various industrial and construction settings. Its robust design and efficient performance make it suitable for continuous duty applications.
