Diamond Wire Guillotine® 208 Pipe Saw

Part Number: 29-000-08

The Wachs DW Guillotine® 208 is a fast, safe, and efficient tool for cutting 2-inch to 8-inch (DN50-200) pipes. It works with various materials, including steel, ductile iron, cast iron, concrete (CA), poly, PVC, and mixed media. Secured directly to the pipe, the DWG 208 utilizes a fully enclosed, high-speed diamond-infused cutting wire, delivering precise and rapid cuts. Its compact, collapsible design features durable stainless-steel construction, making it easy to store and transport.

Every DWG 208 includes a custom protective carrier, a carrier-mounted water tank, and spray lubricant. Unlike traditional saws, it avoids binding and eliminates kickback risks caused by pipe compression or shifting, making it far safer than gasoline-powered chain saws or abrasive wheel devices. Powered hydraulically via a sealed loop, the DWG 208 can operate underwater and eliminates the dangers of gas fumes in confined spaces.

The diamond wire is fully enclosed for safety, except at the cutting area, and rotates slightly during operation to ensure all diamond elements contact the workpiece. This design ensures exceptional wire longevity, giving the DW series one of the lowest costs per cut and significantly reducing consumable expenses over the life of the machine.

Key Features

Safety First: Fully enclosed diamond wire, pivoting safety shield, and no internal support mechanisms that could pinch during cutting.
Compact Design: Collapsible arms for restricted spaces and easy storage.
Secure Mounting: Chain mount system for stable pipe or beam attachment.
Wide Application Range: Cuts 2-inch to 8-inch (DN50-200) pipe and bar (up to 9.6-inch diameter).
Hydraulic Power Compatibility: Connects to Wachs Utility Power units, Class II HPUs, or truck/tractor tool circuits.
Durable Construction: Corrosion-resistant aluminum and stainless steel for long-lasting reliability.
Ease of Maintenance: Detachable swing-away front cover, user-serviceable drive and guide wheel assemblies, and tool-free operation.

Ease of Use
Single-person operation.
Top-mounted controls and feedback gauge keep the operator away from the cutting action.
Tool-free setup and maintenance with quick-release levers and latches.
Narrow profile minimizes excavation needs.
Fast performance: cuts an 8-inch ductile pipe in under 3 minutes.
Operates on live mains or fully submerged.
Two settings for wall thickness and mounts vertically or horizontally.
The load-sensing feature increases wire life and cutting speed.

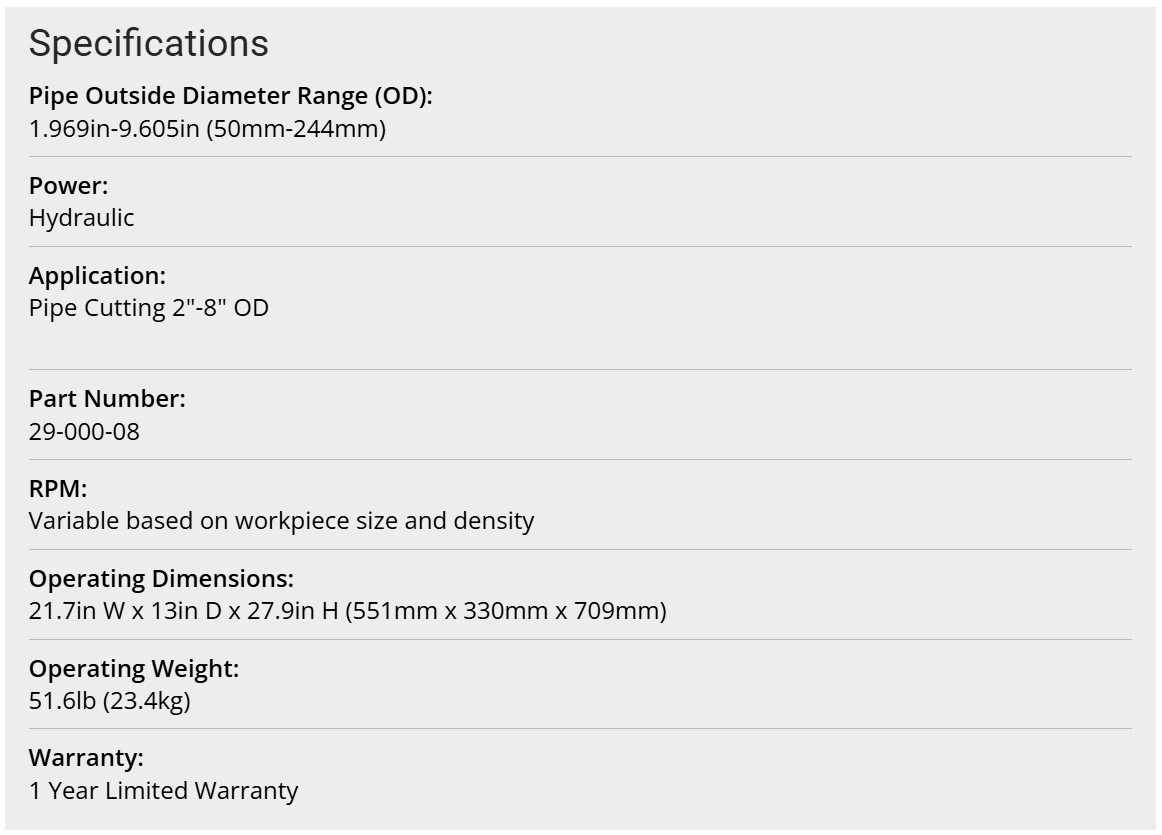

Specifications

Cutting Wire: Quick-change continuous loop diamond wire element.
Hydraulic Drive: HTMA Class II, 8 GPM @ 2000 psi (30 LPM @ 137.9 bar).
Machine Capacity: Cold cuts all pipe materials.
Feed Rate: Variable based on pipe size and material density.
Mounting Method: Standard chain system.
Controls: Single crank manual feed with gauge; motor on/off.
Construction: Aluminum and stainless steel.

Standard Equipment

(Qty - 1) Hydraulic-Powered Diamond Wire Guillotine.
(Qty - 1) High-density diamond wire loop assembly.
(Qty - 1) Operations manual.
(Qty - 1) Spray coolant and washdown system.

Optional Equipment

Powder-coated tube steel/stainless wheeled storage/transport carrier (DWG 208 Carrier 29-4020-08).
Spare/replacement diamond wire loop assembly (DWG 208 Wire 29-608-00).
