Stanley CD12 Core Drill

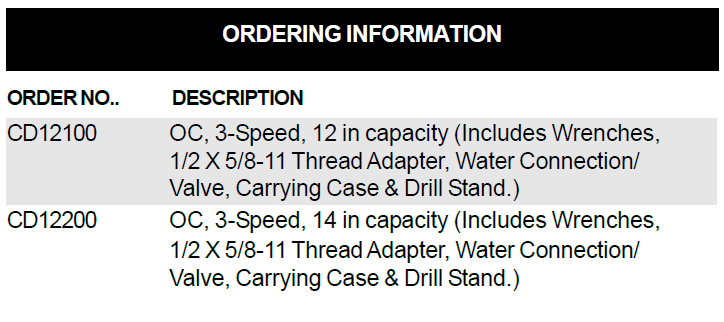

Part Numbers: CD12100 & CD12200
The Stanley CD12 Core Drillis engineered to deliver outstanding performance and durability for professionals working with concrete, masonry, and asphalt materials. Designed for precision and ease of use, the CD12 operates mounted on a drill stand that comes standard with the drill motor, ensuring stability and accuracy during operation.
Unmatched Performance
The CD12 is equipped with a powerful three-speed gearbox, offering speed selections of 500, 1200, and 2400 RPM to accommodate a range of drill bit sizes from 5/8 to 12 inches (15 to 300 mm). Its advanced design maintains consistent speed under load, extending the life of drill bits and delivering dependable performance even in challenging conditions. The gearbox includes a clutch to protect internal components from overload while providing sufficient torque for larger bits.
Ergonomic and Efficient Operation
The ON/OFF directional spool valve stays in the ON position, reducing operator fatigue during extended use. For added flexibility, the feed handle can be installed on either side, accommodating both right-hand and left-hand operation. The included wrenches make it easy to loosen and remove drill bits, further enhancing operational efficiency.
Versatile Water Delivery System
The CD12 includes a water connection fitted with a valve, allowing precise control over water delivery directly at the drill. Water can be supplied through a hydrant connection or an optional 4-gallon pressure tank accessory, ensuring optimal dust suppression and clean drilling.
Adjustable Drill Stand
The drill stand provides unmatched versatility, enabling drilling at angles from perpendicular to 45 degrees. It can be securely anchored using an anchor screw or a vacuum pump, and its leveling screws allow for a stable and solid setup on any surface. A model with a spacer block is also available, increasing drill capacity to accommodate 14-inch diameter bits.

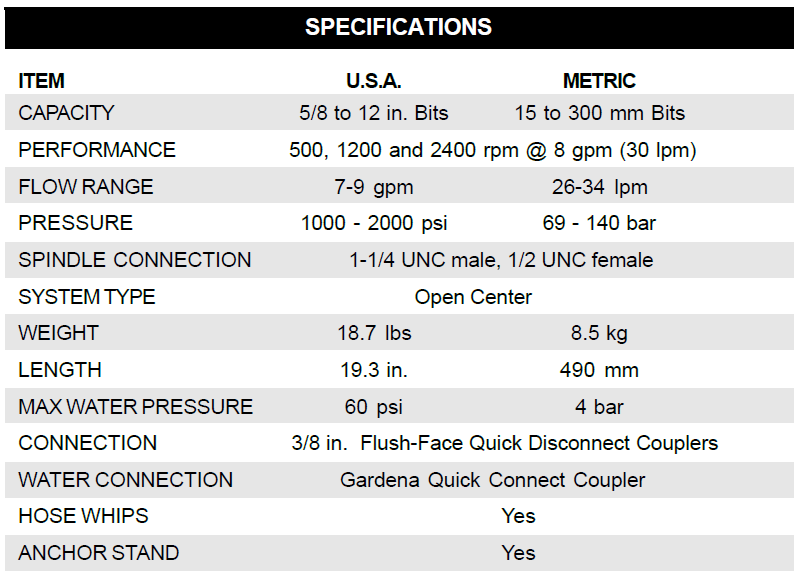

Technical Specifications
- Capacity: 5/8 to 12 inches (15 to 300 mm)
- Performance: 500, 1200, 2400 RPM @ 8 GPM (30 LPM)
- Flow Range: 7-9 GPM (26-34 LPM)
- Pressure: 1000-2000 PSI (69-140 Bar)
- System Type: Open Center
- Weight: 18.7 lbs. (8.5 kg)
- Length: 19.3 inches (490 mm)
- Max Water Pressure: 60 PSI (4 Bar)
- Connection: 3/8-inch Flush-Face Quick Disconnect Couplers
- Water Connection: Gardena Quick Connect Coupler
- Anchor Stand: Included
With its combination of advanced features, ergonomic design, and superior performance, the Stanley CD12 Core Drill is the ideal choice for professionals seeking a reliable and versatile drilling solution.
