D18 Camera Head

Skip to the beginning of the images gallery

D18 Camera Head

In stock

SKU

D18 Camera Head

$999,999.00

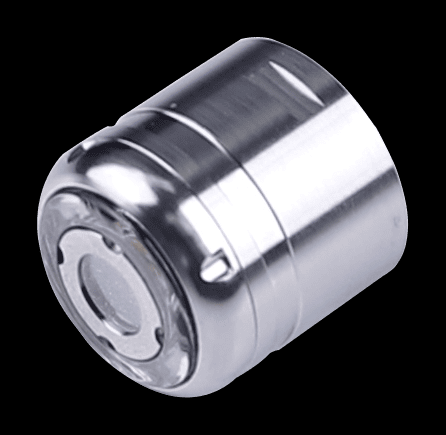

Vivax-Metrotech D18-HD Camera Head for vCam-Drain and vCamMX-2+

Replacement 18mm high-definition camera head for the Vivax-Metrotech vCam-Drain and vCamMX-2+ inspection systems. Designed for pipes from 1½ in. to 3 in. (38 mm to 75 mm), the D18-HD delivers clear video in tight residential drain lines, roof vents, and small-diameter commercial pipes where larger camera heads cannot reach.

Part Number: 1.113.02.00001

About the D18-HD Camera Head

The D18-HD features stainless-steel housing with a scratch-resistant Sapphire lens and water resistance for professional drain and pipe inspection. It is a fixed-position, non-leveling camera with a 90° field of view and 69 lumens of lighting measured at 1 meter in 4-inch cast iron pipe. Indepthutilitysolutions Cablelocatorsandsurvey

Compatible with the vCam-Drain and vCamMX-2+ systems. The D18-HD also offers backward compatibility with the vCam-6 Control Module, producing standard definition video on that hardware. Cablelocatorsandsurvey

Specifications

Model Name: D18-HD

Part Number: 1.113.02.00001

Pipe Range: 1½ in. to 3 in. (38 mm to 75 mm)

Resolution: 720p

Field of View: 90°

Lighting: 69 Lumens

Auto Upright: None — fixed position, non-leveling

Construction: Stainless-steel housing with scratch-resistant Sapphire lens

Water Resistance: Up to 11 BAR

Operating Temperature: 14°F to 122°F (-10°C to 50°C)

Storage Temperature: -4°F to 158°F (-20°C to 70°C)

Dimensions (without skid): 0.73 in. dia. x 0.71 in. L (18.6 mm x 18.1 mm)

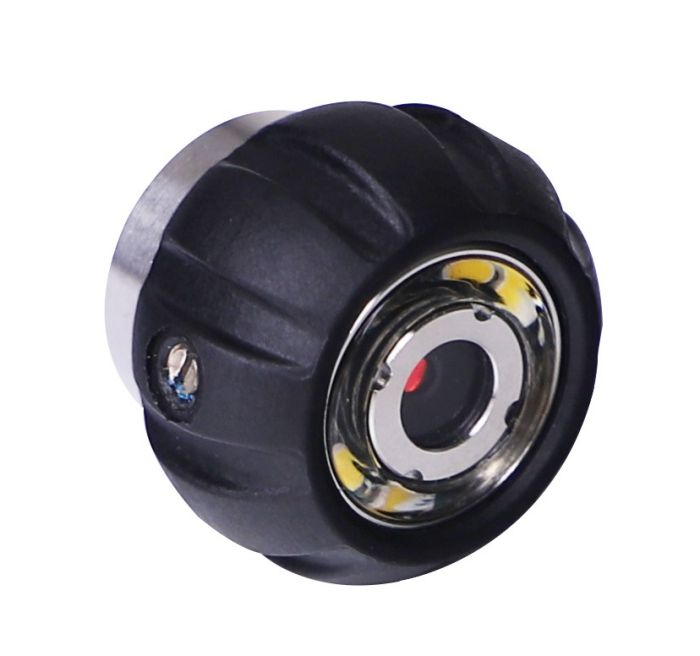

Dimensions (with standard skid): 1.0 in. dia. x 0.73 in. L (25.6 mm x 18.6 mm)

Weight (without skid): 0.029 lbs (0.013 kg)

Compatible Systems: vCam-Drain, vCamMX-2+

Camera Head Exchange Program

If your D18-HD is damaged, Vivax-Metrotech's exchange program may allow you to replace it at a fraction of full replacement cost. Contact Intermountain Sales with your camera serial number and we'll walk you through the process.

Exchange part number: 1.113.02.00001-E
