D46 Camera Head
In stock
SKU
D46 Camera Head
$999,999.00

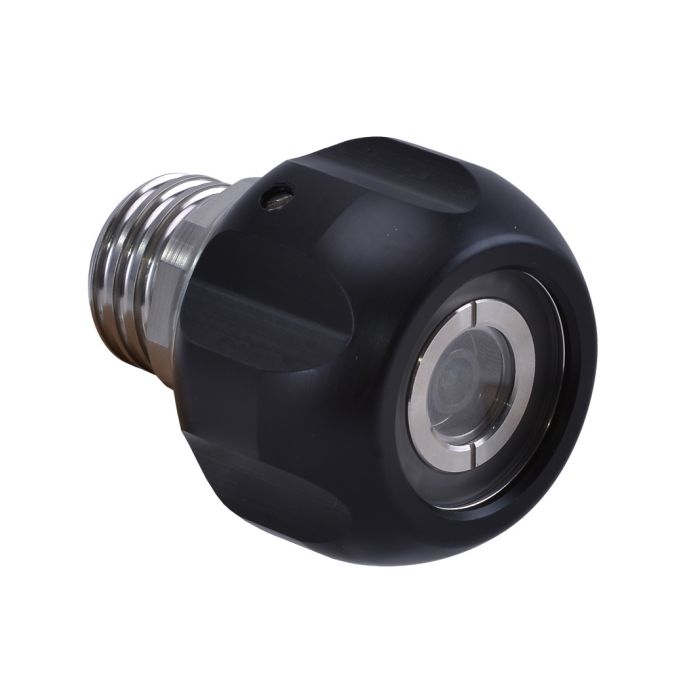

Vivax-Metrotech D46-HD Camera Head for vCam-6 Pipe and Sewer Inspection
Replacement 1.8 in. (46mm) high-definition camera head for the Vivax-Metrotech vCam-6 inspection system. Designed for pipes from 3 in. to 8 in. (75 mm to 200 mm), the D46-HD delivers self-leveling 1080p color video for professional main line, storm drain, and larger diameter pipe inspections. Compatible exclusively with the vCam-6 HD system and Type-CP reel.
Part Number: 1.111.03.00001
About the D46-HD Camera Head
The D46-HD is the large-pipe camera head for the vCam-6 system. At 1.8 in. diameter it is built for mains, storm lines, and manhole-to-manhole runs where the D34-HD would be undersized. It features stainless-steel housing with a scratch-resistant Sapphire lens, self-leveling auto-upright image, and full 1080p high-definition video with increased light output for larger pipe diameters.
The D46-HD is field-swappable — the head threads onto the termination spring and can be exchanged in minutes at the truck. One vCam-6 reel can run both the D34-HD and D46-HD depending on the job.
Note: When using the D46-HD with a standard 14 in. termination spring in pipes 6 in. and larger, the spring can coil on itself and damage the head. The short 7 in. spring is the recommended choice for straight runs in larger pipe.
Specifications
Model Name: D46-HD
Part Number: 1.111.03.00001
Diameter: 1.8 in. (46 mm)
Pipe Range: 3 in. to 8 in. (75 mm to 200 mm)
Resolution: 1080p
Auto Upright: Yes — self-leveling
Construction: Stainless-steel housing with scratch-resistant Sapphire lens
Water Resistance: Up to 11 BAR
Compatible Systems: vCam-6 HD
Compatible Reel: Type-CP
Camera Head Exchange Program
If your D46-HD is damaged in the field, Vivax-Metrotech's exchange program may allow replacement at a fraction of full cost. Contact Intermountain Sales with your camera serial number and we'll walk you through the process.
Exchange part number: 1.111.03.00001-E
Pricing and Availability
Contact Intermountain Sales Inc. for current pricing and availability. Call (303) 762-1070 or use the Request for Quote button above.
