ERV-750 Extended Reach Valve Exerciser – High Stack Version
High Stack Version

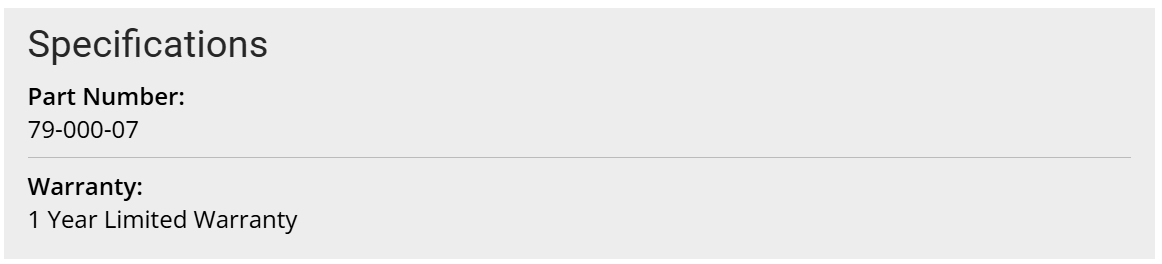

Part Number: 79-000-07
The E.H. Wachs ERV-750 Extended Reach Valve Exerciser delivers 750 ft/lbs. (1015 Nm) of torque, even at full extension. Its rotating, extendable arm reaches up to 13 feet (3.96 m), providing the power and versatility needed for tough valve operations.
Designed for curbside access, the ERV-750 features a pivoting arm for valve boxes or hydrants and utilizes dual hydraulic locking disc brakes with push-button release to securely hold its full torque force during operation. Constructed with a durable 3-inch square steel box section, the arm resists twisting forces, ensuring long-lasting reliability.
The High Stack Version is optimized for vehicle bumper mounting and includes a mechanical lock for secure storage during travel, making it an ideal solution for water organizations of any size.
Key Features
- Powerful Torque: 750 ft/lbs. of torque for reliable, hands-free operation.
- Extended Reach: 13 feet of reach from the mounting pedestal.
- Durable Construction: 3-inch square steel tubing resists twisting forces.
- Secure Operation: Dual hydraulic locking disc brakes with push-button release.
- Travel Safety: Mechanical lock system ensures secure storage during transport.
- Variable Speed: Operates at 5–30 RPM (30 RPM at recommended flow).
- Modular Efficiency: Single hydraulic motor and drive gear on a ball-bearing lockable slide for compact dimensions and increased efficiency.
- Telescoping Valve Key: Operates standard AWWA 2-inch nuts.
Technical Specifications
- Power Supply Requirements: 4–12 GPM @ 2000 PSI (8 GPM recommended).
- Compatibility: Fully compatible with VITALS software for data logging and syncing between the HC-100 controller and your network PC. *
- Optional Bluetooth Connectivity: Enhances functionality. *
*Requires a ruggedized controller/data logger with built-in GPS, sold separately.
The ERV-750 is a robust and versatile valve exerciser, perfect for organizations seeking extended reach, high torque, and dependable performance.
