GD-50
In stock
SKU
GD-50
$999,999.00

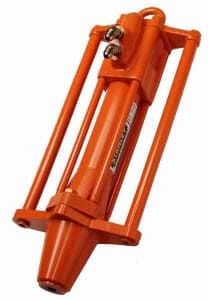

Hydraulic Ground Rod Driver for ¾–1 in. Rods
The STANLEY GD50133RF hydraulic ground rod driver drives ¾–1 in. (19–25 mm) ground rods from the top. Its lifting eye lets the operator suspend the driver above the rod, while long side handles provide control during installation. A rod-fitting anvil receives the impacts and helps minimize damage to the rod end.
The GD50133RF includes 8-foot hose whips, flush-face quick-disconnect couplers, and an in-line ON/OFF valve for control from the hose position.
Features
- Designed for ¾–1 in. (19–25 mm) ground rods
- Top-drive hydraulic impact
- Lifting eye for suspending the driver above the rod
- Long side handles for operator control
- Rod-fitting anvil that helps minimize damage to rod ends
- In-line ON/OFF valve on 8-foot hose whips
- Flush-face quick-disconnect couplers
GD50133RF Specifications
| Specification | GD50133RF |
|---|---|
| Ground rod diameter | ¾–1 in. (19–25 mm) |
| Hydraulic flow | 5–9 gpm (19–34 lpm) |
| Operating pressure | 1,500–2,000 psi (105–140 bar) |
| Hydraulic system | Open center or closed center |
| Ports | −8 SAE straight-thread O-ring |
| Connection | ⅜ in. flush-face quick-disconnect couplers |
| Hose whips | 8 ft., with in-line ON/OFF valve |
| Weight | 52 lb. (24 kg) |
| Length | 25.5 in. (64.8 cm) |
