Hydra Tech S4TLP 4 Inch Pump
In stock
SKU
Hydra Tech S4TLP 4 Inch Pump
₹999,999.00
S4TLP Hydraulic Submersible Trash Pump
Part Number:
- S4TLP
The S4TLP Hydraulic Submersible Trash Pump is a compact, high-performance pump designed for demanding dewatering and transfer tasks. Built with versatility and durability in mind, the S4TLP is ideal for confined spaces and applications requiring tank truck mounting or on-board hydraulic systems. With its ability to handle solids up to 3 inches (8 cm) in diameter and its lightweight design, this pump is perfect for professionals in construction, industrial, and utility sectors.
Key Features
- Compact and Versatile Design:
- Fits into tight spaces for flexible applications.
- Can be mounted on tank trucks for direct loading and offloading.
- Solid Handling Capability:
- Pumps water, sludge, and debris with solids up to 3 inches (8 cm) in diameter.
- Durable Construction:
- Pump body and hose ports constructed from robust ductile iron for extended service life.
- Optional lightweight aluminum body available for increased portability.
- Hydraulic Efficiency:
- Operates on smaller hydraulic tool power units.
- Compatible with any open-center hydraulic system delivering up to 10 GPM (38 LPM) at a maximum pressure of 2,800 PSI (190 Bar).
- Ease of Maintenance:
- Simple design and high-quality materials ensure long-term reliability with minimal upkeep.

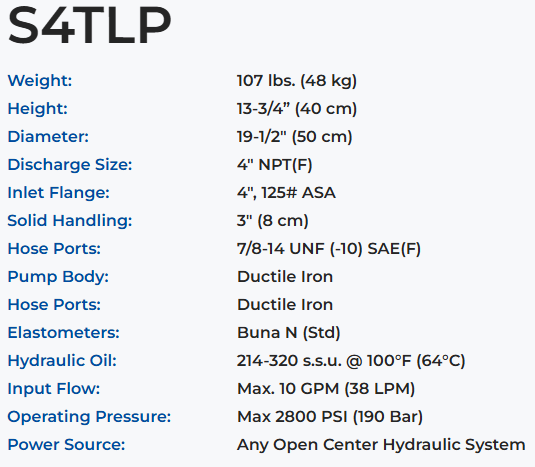

Specifications
- Weight: 107 lbs. (48 kg)
- Dimensions:
- Height: 13-3/4” (35 cm)
- Diameter: 19-1/2” (50 cm)
- Discharge Size: 4” NPT(F)
- Inlet Flange: 4”, 125# ASA
- Solid Handling: Up to 3” (8 cm)
- Hydraulic Flow: Max. 10 GPM (38 LPM)
- Operating Pressure: Max. 2,800 PSI (190 Bar)
- Hydraulic Oil: 214-320 S.S.U. @ 100°F (64°C)
- Hose Ports: 7/8-14 UNF (-10) SAE(F)
- Elastomers: Buna N (Standard)
Applications
- Construction Sites:
- Efficiently dewaters flooded areas, trenches, and foundations.
- Utility and Maintenance:
- Perfect for manhole and vault dewatering.
- Industrial Use:
- Handles sludge, slurry, and debris with ease.
- Tank Truck Operations:
- Direct loading and offloading using on-board hydraulic systems.
Why Choose the S4TLP Trash Pump?
The S4TLP Hydraulic Submersible Trash Pump combines compact design, powerful performance, and durable construction, making it an all-around choice for dewatering and liquid transfer tasks. Its ability to fit into tight spaces, coupled with robust solid-handling capabilities, ensures reliability in a wide range of applications.
Contact Intermountain Sales Inc. today to download the spec sheet or request a quote for the S4TLP Hydraulic Trash Pump!
