Hydra-Tech_S6V_6_Inch_Pump

In stock

₹999,999.00

S6V Hydraulic Submersible Sewage Pump

Part Numbers:

S6V (Ductile Iron Body)
S6VAL (Aluminum Body)

The S6V Hydraulic Submersible Sewage Pump is a robust and efficient solution designed for high-capacity sewage and dewatering applications. Engineered to pass through a 21-inch manhole and handle challenging materials like large solids, stringy debris, and slurries with entrained gases, the S6V is ideal for sewer bypass jobs and other demanding environments. Its compact design and powerful performance make it a top choice for utility, construction, and industrial professionals.

Key Features

Manhole-Optimized Design:
Compact and slim, designed to pass easily through a 21-inch (53 cm) manhole opening.
High Flow Capacity:
Delivers flows up to 1,550 GPM (5,867 LPM), making it ideal for large-scale dewatering and sewage bypass applications.
Solid Handling:
Without a strainer: Handles solids up to 5 inches (12.7 cm) in diameter.
With a strainer: Handles solids up to 2.5 inches (6.3 cm).
Durable Construction:
Pump body made from ductile iron for superior strength and abrasion resistance.
Stainless steel hose ports for enhanced corrosion resistance.
Efficient Hydraulic Power:
Operates on hydraulic systems delivering up to 30 GPM (114 LPM) at 3,000 PSI (204 Bar).
Versatile Operation:
Handles slurries, stringy materials, and liquids with entrained gases effectively.
Compact and Portable:
Lightweight at 247 lbs. (112 kg) and compact for easy handling and setup.

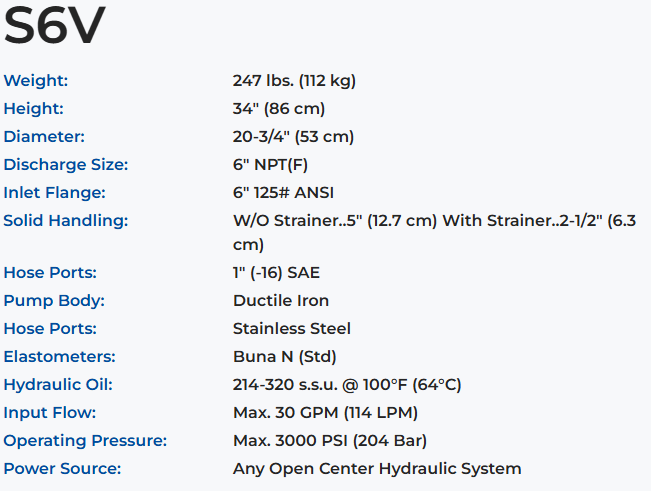

Specifications

Weight: 247 lbs. (112 kg)
Dimensions:
Height: 34" (86 cm)
Diameter: 20-3/4" (53 cm)
Discharge Size: 6" NPT(F)
Inlet Flange: 6" 125# ANSI
Solid Handling:
Without Strainer: 5" (12.7 cm)
With Strainer: 2.5" (6.3 cm)
Hydraulic Flow: Max. 30 GPM (114 LPM)
Operating Pressure: Max. 3,000 PSI (204 Bar)
Hydraulic Oil: 214-320 S.S.U. @ 100°F (64°C)
Hose Ports: 1" (-16) SAE

Applications

Sewer Bypass:
Perfect for bypass pumping during sewer maintenance or repairs.
Utility and Construction:
Ideal for dewatering trenches, pits, and large excavation sites.
Industrial Use:
Handles slurries and debris-laden liquids in industrial settings.
Emergency Response:
Effective for flood control and disaster recovery operations.

Why Choose the S6V Hydraulic Sewage Pump?

The S6V Hydraulic Submersible Sewage Pump combines power, portability, and durability to meet the needs of the most demanding environments. Its ability to handle large solids, slurries, and challenging materials ensures reliable performance for a wide range of applications.

Contact Intermountain Sales Inc. today to learn more about the S6V Hydraulic Submersible Sewage Pump or to request a quote!
