Hydra Tech HT74DVDQ Hydraulic Power Unit

In stock

₹999,999.00

HT74DVDQ Sound Attenuated Hydraulic Power Unit

Part Number: HT74DVDQ

The HT74DVDQ Hydraulic Power Unit combines robust performance and quiet operation, making it an ideal choice for residential and noise-sensitive areas. Powered by a 74 HP Deutz TD 2.9 L4 diesel engine, this unit delivers variable hydraulic output up to 29 GPM at 2900 PSI. Its sound-attenuated enclosure and advanced features ensure compliance with emissions and noise standards while meeting demanding hydraulic requirements.

Key Features:

High-Performance Engine: Equipped with a Tier 4 Final-compliant Deutz TD 2.9 L4 diesel engine delivering 74 HP at 2500 RPM.
Variable Hydraulic Output: Adjustable flow rates up to 29 GPM (109 LPM) and maximum pressure of 2900 PSI for a variety of applications.
Sound Attenuation: Full enclosure with soundproofing and lockable doors reduces noise levels to 85 dB at 3 feet and 70 dB at 23 feet.
Large Capacity: Includes a 60-gallon hydraulic oil reservoir and 115-gallon fuel tank for extended operation.
Durable Construction: Features a skid frame chassis with a built-in fuel tank and a single-point lifting bracket for easy transport.
Enhanced Safety and Monitoring:
System relief valve and automatic engine safety shutdown.
Liquid-filled pressure gauge and fluid level/temperature gauge for real-time monitoring.
Recessed hose connections for protection and convenience.

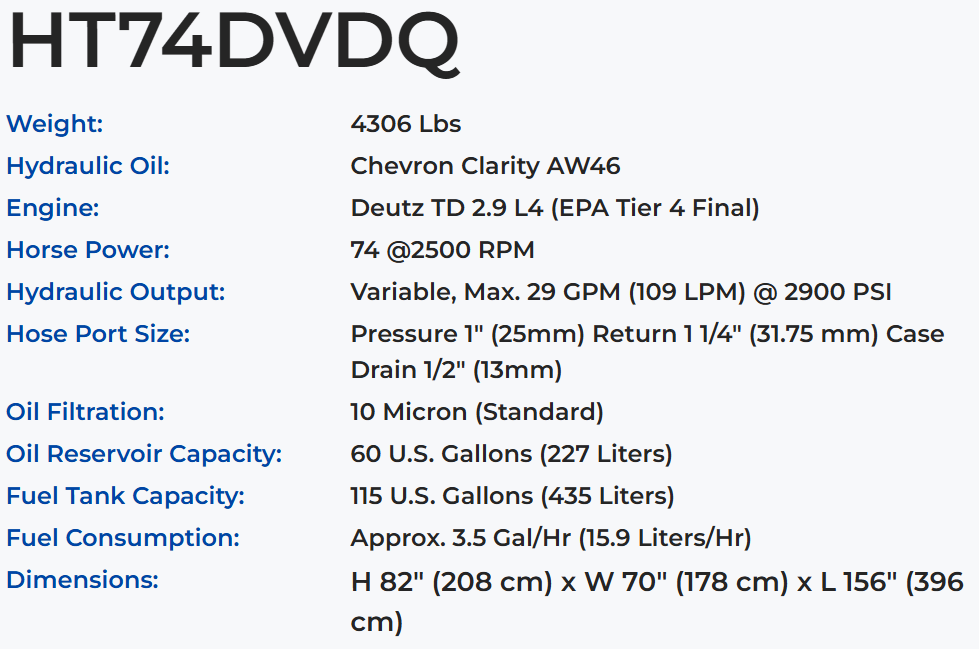

Specifications:

Engine: Deutz TD 2.9 L4 Diesel (EPA Tier 4 Final)
Power Output: 74 HP (55 kW) @ 2500 RPM
Hydraulic Output: Variable, max. 29 GPM (109 LPM) @ 2900 PSI
Hose Port Size: 1" (Pressure), 1 1/4" (Return), 1/2" (Case Drain)
Oil Filtration: 10 Micron (Standard)
Reservoir Capacity: 60 U.S. gallons (227 liters)
Fuel Capacity: 115 U.S. gallons (435 liters)
Fuel Consumption: Approx. 3.5 U.S. gallons/hour (15.9 liters/hour)
Dimensions: 156" L x 70" W x 82" H (with trailer)
Weight: 4306 lbs. (1953 kg)

Applications:

Driving submersible pumps for dewatering and fluid transfer.
Powering hydraulic tools and equipment in industrial, utility, and construction settings.
Ideal for projects in residential areas requiring reduced noise levels.

Why Choose the HT74DVDQ?

The HT74DVDQ Hydraulic Power Unit delivers unmatched performance, efficiency, and quiet operation. Its advanced design and compliance with Tier 4 Final emission standards make it a reliable solution for demanding hydraulic applications in noise-sensitive environments.

Contact Intermountain Sales Inc. today to request a quote or learn more about the HT74DVDQ Sound Attenuated Hydraulic Power Unit!
