Stanley SM 20

In stock

SKU

Stanley SM 20

₹999,999.00

SM20 Hydraulic Water Pump

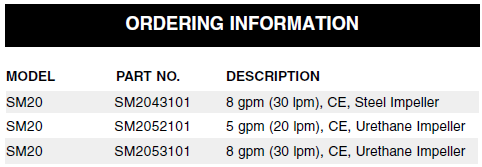

Part Numbers:

SM2043101
SM2052101
SM2053101

The Stanley SM20 Hydraulic Water Pump is a lightweight, durable, and high-performance submersible pump designed to meet the toughest demands of utility and construction applications. Whether you need to dewater manholes, vaults, or other confined spaces, the SM20 delivers reliable performance with minimal maintenance.

Key Features

Exceptional Pumping Power:
Capable of pumping 250 GPM (946 LPM) at a 10-foot head.
Handles solids up to 5/16 inch (8 mm) in diameter.

Durable and Reliable:
Constructed with an abrasion-resistant urethane impeller for longevity.
Features a cast iron inlet wear ring, easily replaceable for extended service life.

Lightweight and Portable:
Weighs only 13.7 lbs. (6.3 kg), making it easy to transport and deploy.

Maintenance-Free Operation:
Designed with minimal moving parts, requiring virtually no maintenance.

Effortless Operation:
Submersible and self-priming, eliminating the need for recoil starting, priming, or suction hoses.
Can run dry without damaging the motor, bearings, or impeller.

Flexible Power Compatibility:
Operates with HTMA-approved hydraulic systems delivering 4–9 GPM at 1000–2000 PSI.

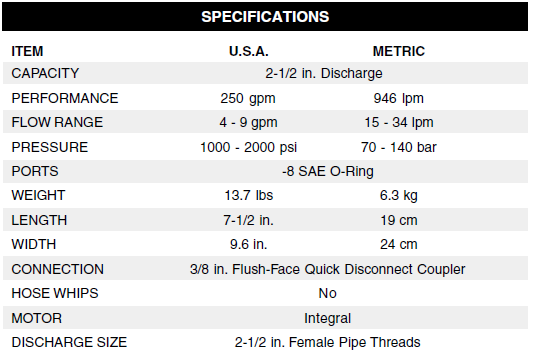

Specifications

Discharge Size: 2.5 inches (6.35 cm) Female Pipe Threads
Flow Range: 4–9 GPM (15–34 LPM)
Operating Pressure: 1000–2000 PSI (70–140 Bar)
Dimensions:
Length: 7.5 in. (19 cm)
Width: 9.6 in. (24 cm)
Weight: 13.7 lbs. (6.3 kg)
Hydraulic Porting: -8 SAE O-Ring
Connections: 3/8-inch flush-face quick-disconnect couplers

Applications

Utility and Construction Sites:
Efficiently dewaters trenches, sumps, vaults, and manholes.

Flood Control:
Quickly removes water in emergency scenarios.

Industrial Settings:
Handles sludge, slurry, and other challenging conditions.

Warranty

The SM20 Hydraulic Water Pump is backed by a 12-month warranty against defects in materials and workmanship. Stanley Hydraulic Tools ensures quality, performance, and peace of mind for demanding professionals.
