Part Number: 18-FFK1

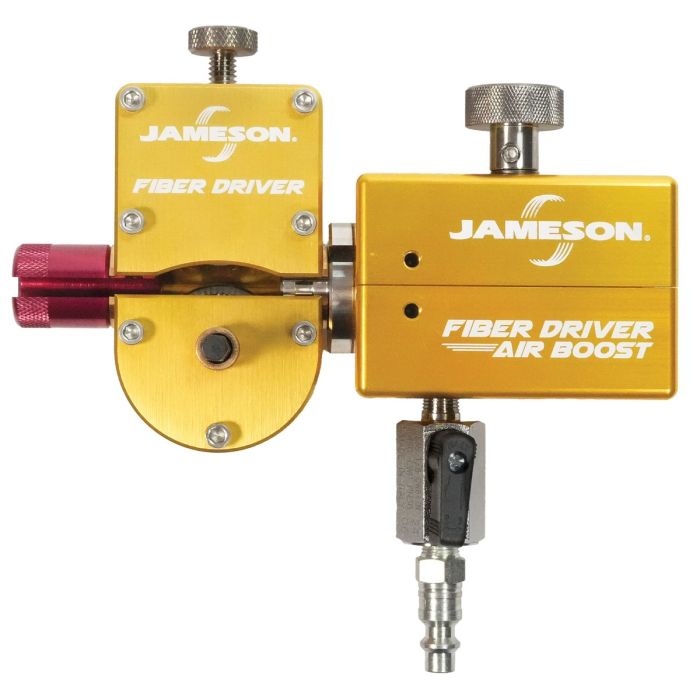

The Jameson 18-FFK1 Fiber Driver with Air Boost Kit combines drill-powered mechanical cable feeding with compressed-air assistance for faster, longer FTTH fiber installations.
The handheld Fiber Driver grips and advances compatible 0.3-inch flat-drop cable while the Air Boost introduces compressed air into the duct to help reduce friction. Together, these tools allow a single operator to install fiber more efficiently than conventional hand feeding — without eliminating mid-span access, direct-reel payout, or reverse operation.
The complete system is supplied in two rugged plastic cases and includes Fiber Driver duct adapters, Air Boost conduit clamps, flat-fiber inserts, seals, tools, and other essential components.
Long fiber pushes can become difficult as friction builds between the cable and the inside of the duct. Bends, elevation changes, duct condition, cable construction, and route length can further increase resistance.
The Jameson Fiber Driver supplies the mechanical force needed to advance the cable. The Air Boost complements that force by introducing compressed air around the fiber, helping reduce friction and extend the practical installation distance.
Unlike a conventional high-volume cable-blowing machine, the 18-FFK1 remains compact and portable. Jameson recommends a compressor with a minimum 20-gallon tank for operation.
The included 18-FFB1 Air Boost Unit introduces compressed air into the duct while the Fiber Driver advances the cable. The moving air helps reduce contact and friction between the fiber and duct, allowing the mechanical driver to work more efficiently.
This combination can help crews complete longer or more demanding installations while maintaining a compact, field-portable equipment setup.
Actual installation performance depends on:
Always confirm that the cable, duct, inserts, clamps, compressor, and other components are compatible before beginning an installation.
The Fiber Driver’s included drive and idle wheels are optimized for compatible fiberglass-reinforced optical cable approximately 0.3 inches wide.
The Air Boost Kit includes two flat-fiber insert sizes — 0.11 inch and 0.14 inch — to help form an appropriate air seal around compatible cable. Proper insert selection and preparation are essential for efficient air-assisted operation.
Cable width, thickness, construction, and minimum bend radius should be confirmed before use.
A compatible cordless drill powers the Fiber Driver, giving the operator control over cable speed and direction without requiring a dedicated hydraulic or electrical power unit.
The driver can pull cable from a properly supported reel while advancing it into the duct. Forward and reverse operation also allows compatible cable to be pushed or retracted as installation conditions require.
The Fiber Driver can be installed or removed at a mid-span location, allowing crews to work around cable reels, access points, buildings, handholes, and existing cable routes.
The Air Boost Unit operates with a suitable compressed-air source. Jameson specifies a minimum recommended compressor tank size of 20 gallons.
A portable compressor may be used when it meets the system’s pressure, airflow, tank-capacity, and connection requirements. Compressor performance directly affects the amount of air available to reduce friction during the installation.
The compressor, air hose, fittings, and other compressed-air equipment are not included unless otherwise specified.
The complete 18-FFK1 system includes components for several commonly used FTTH duct sizes.
The Fiber Driver kit contains adapters for:
The Air Boost kit contains conduit clamps for:
Jameson also lists the complete system as accommodating 3/4-inch duct applications. Confirm the correct adapter, clamp, seal, and connection requirements for the specific duct being used.
The Jameson 18-FFK1 Fiber Driver with Air Boost Kit is designed for professional applications including:
The Jameson 18-FFK1 combines two complete equipment packages.
18-FFPC1 Fiber Driver Kit
18-FFB1 Air Boost Kit
A cordless drill, compressor, air hose, cable reel, fiber cable, duct, and installation consumables are not included unless otherwise specified.
| Specification | Details |
|---|---|
| Manufacturer | Jameson |
| Model | 18-FFK1 |
| Product Type | Drill-powered fiber cable pusher with compressed-air assistance |
| Recommended Cable Profile | Compatible 0.3-inch flat-drop fiber cable |
| Fiber Driver Power Source | Compatible cordless drill |
| Air Boost Power Source | Suitable air compressor |
| Minimum Recommended Compressor Tank Size | 20 gallons |
| Fiber Driver Duct Adapters | 10 mm, 12.7 mm, 14 mm, 16 mm, and 18 mm |
| Air Boost Conduit Clamps | 10 mm, 14 mm, 16 mm, 18 mm, and 19 mm |
| Flat-Fiber Inserts | 0.11 inch and 0.14 inch |
| Listed Duct Compatibility | 10 mm, 14 mm, 16 mm, 18 mm, 19 mm, and 3/4 inch, depending on the component and configuration |
| Operation | Handheld, single operator |
| Direction | Forward and reverse |
| Mid-Span Fiber Driver Access | Yes |
| Storage | Two rugged plastic carrying cases |
| Listed Case Dimensions | 11″ L x 10″ W x 5″ H |
| Listed Weight | 5 lb. |
| UPC | 810075963236 |
The Fiber Driver and Air Boost systems are designed with serviceable components for long-term professional use. Fiber Driver wheels can be removed for service or replacement, while the Air Boost kit includes an extra rubber rope seal, files, and an Allen key for setup and maintenance.
Replacement seals, inserts, wheels, adapters, and other components may be available separately. Contact Intermountain Sales to confirm the correct service parts for your equipment.
Intermountain Sales supplies Jameson fiber installation and cable-handling equipment to broadband contractors, telecommunications crews, utilities, municipalities, and professional installers throughout Colorado, Utah, Wyoming, Montana, and Idaho.
Our team can help determine whether the 18-FFK1 is appropriate for your cable profile, duct size, route length, compressor, and installation conditions. Product demonstrations are available so operators can see how the Fiber Driver and Air Boost work together before deploying the system in the field.
The 18-FFK1 is a complete fiber installation system that combines the drill-powered Jameson Fiber Driver with the compressed-air-powered 18-FFB1 Air Boost Unit. It is designed to install compatible flat-drop fiber through duct.
The Fiber Driver mechanically advances the cable while the Air Boost introduces compressed air into the duct. The airflow helps reduce friction between the cable and duct, allowing the driver to push more efficiently under suitable conditions.
The system is designed for compatible 0.3-inch-wide flat-drop fiber cable. The Air Boost kit includes 0.11-inch and 0.14-inch flat-fiber inserts. Cable dimensions and compatibility must be verified before use.
Yes. A suitable compressor is required to operate the Air Boost Unit. Jameson specifies a minimum recommended compressor tank size of 20 gallons.
No. The compressor, air hose, and related compressed-air connections are not included unless otherwise specified.
No dedicated power unit is required. The Fiber Driver is powered by a compatible cordless drill, which is sold separately.
The Fiber Driver is designed for handheld, single-operator use. Depending on the installation, another crew member may be needed to monitor the compressor, manage the cable reel, observe an access point, or coordinate the receiving end.
Yes. The Fiber Driver can be loaded onto or removed from compatible fiber at a mid-span location. This flexibility is retained when the Fiber Driver is used as part of the Air Boost system.
The Fiber Driver operates in both forward and reverse, allowing the operator to push or retract compatible cable. The Air Boost Unit is intended to assist cable installation by reducing friction during the push.
The Fiber Driver kit includes adapters for 10 mm, 12.7 mm, 14 mm, 16 mm, and 18 mm duct. The Air Boost kit includes clamps for 10 mm, 14 mm, 16 mm, 18 mm, and 19 mm conduit. Jameson also lists 3/4-inch duct compatibility for the complete system. Verify the correct components before use.
The 18-FFPC1 contains the Fiber Driver, five duct adapters, and a fitted hard case. The 18-FFK1 includes that complete Fiber Driver Kit plus the 18-FFB1 Air Boost Unit, conduit clamps, flat-fiber inserts, spare seal, setup tools, and a second hard case.
Yes. The system includes serviceable components. The Fiber Driver wheels can be removed for maintenance, and the Air Boost kit includes tools and an extra seal for setup and routine service.
Contact Intermountain Sales for 18-FFK1 availability, compressor requirements, cable and duct compatibility, service parts, and a Fiber Driver with Air Boost demonstration.
