Part Number: 18-FFPC1
The Jameson 18-FFPC1 Fiber Driver Kit provides a faster, more efficient way to install compatible flat fiber optic drop cable through duct. Powered by a cordless drill, this lightweight fiber installation tool replaces repetitive hand-over-hand feeding with a controlled mechanical drive.
Designed for single-operator use, the Fiber Driver can pull cable directly from a supported reel while pushing it into the duct. The complete kit includes multiple duct adapters and a fitted hard case that protects and organizes the tool between installations.
Faster FTTH Drop Cable Installation
Manual fiber feeding can be slow, physically demanding, and prone to cable buckling. The Jameson Fiber Driver applies consistent mechanical force to help crews complete final-drop installations faster and with less operator fatigue.
Under suitable conditions, the 18-FFPC1 can push compatible fiber more than 300 feet in less than 30 seconds. Actual speed and distance depend on the cable, duct size, duct condition, bends, elevation changes, friction, and overall route design.
Because the Fiber Driver can be loaded onto or removed from the cable mid-span, operators are not limited to beginning at the end of the fiber.
Jameson 18-FFPC1 Features
Optimized for Flat Fiber Drop Cable
The included drive and idle wheels are optimized for fiberglass-reinforced optical cable approximately 0.3 inches wide. The Fiber Driver may also accommodate cables with similar dimensions.
The wheels are removable and serviceable. Additional wheels, rollers, inserts, and adapters may be available for other cable profiles and duct sizes. Confirm cable and duct compatibility before beginning an installation.

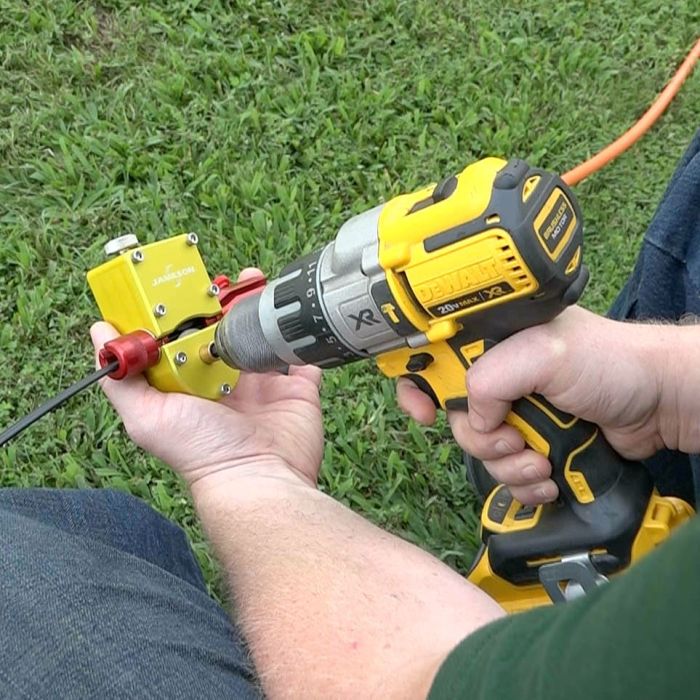

Cordless Drill Powered Operation
The 18-FFPC1 does not require a dedicated hydraulic power unit or specialized drive system. A compatible cordless drill powers the Fiber Driver and gives the operator control over installation speed and direction.
Forward and reverse operation allows technicians to push or retract compatible cable as jobsite conditions require. The handheld design also makes the tool easy to transport between residential and commercial fiber installations.
Applications
The Jameson 18-FFPC1 Fiber Driver Kit is designed for professional fiber installation applications, including:
What Is Included?

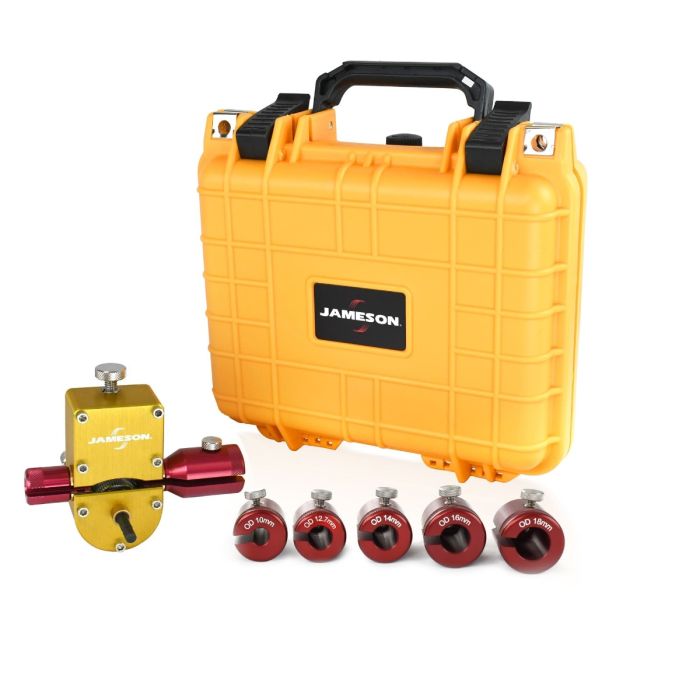

The Jameson 18-FFPC1 Fiber Driver Kit includes:
A cordless drill, fiber cable, cable reel, and optional accessories are not included unless otherwise specified.
Product Specifications
Manufacturer - Jameson
Model - 18-FFPC1
Product Type - Fiber optic cable installation tool kit
Recommended Cable Profile - Fiberglass-reinforced optical cable approximately 0.3 inches wide and compatible cables with similar dimensions
Operation - Handheld, single operator
Power Source - Compatible cordless drill
Direction - Forward and reverse
Mid-Span Loading - Yes
Fiber Driver Weight - Approximately 1.4 pounds
Storage - Fitted hard carrying case
UPC - 810075962499
Serviceable Wheels and Optional Accessories
The drive and idle wheels can be removed for service or replacement. Jameson offers additional components for different fiber profiles and installation requirements.
When equipped with a urethane drive wheel and the optional Jameson Little Buddy Adapter, the Fiber Driver can also push and retract compatible Jameson fish tapes. These accessories are sold separately.
Contact Intermountain Sales to confirm the correct wheels, inserts, duct adapters, and accessories for your application.
Why Buy the Jameson Fiber Driver from Intermountain Sales?
Intermountain Sales supplies Jameson fiber installation tools to broadband contractors, telecommunications crews, utilities, municipalities, and professional installers throughout Colorado, Utah, Wyoming, Montana, and Idaho.
Our team can help you match the Fiber Driver to your cable profile, duct size, installation distance, and jobsite conditions. Product demonstrations are also available so your crew can see how the Fiber Driver operates before putting it to work in the field.
Frequently Asked Questions
What is included with the Jameson 18-FFPC1 Fiber Driver Kit?
The kit includes the Jameson Fiber Driver, drive and idle wheels, five duct adapters, and a fitted hard carrying case.
What type of fiber cable is the 18-FFPC1 designed for?
The included wheels are optimized for fiberglass-reinforced optical cable approximately 0.3 inches wide. They may accommodate other cables with similar dimensions, but compatibility should be verified before installation.
How far can the Fiber Driver push fiber?
Jameson states that the Fiber Driver can push compatible fiber more than 300 feet in less than 30 seconds under suitable conditions. Actual results depend on cable compatibility, duct diameter, bends, friction, elevation changes, route design, and other jobsite factors.
Does the Fiber Driver require a special power unit?
No dedicated power unit is required. The 18-FFPC1 is driven by a compatible cordless drill.
Can one person operate the 18-FFPC1?
Yes. The Fiber Driver is designed for handheld, single-operator use. Some installations may still require additional personnel to manage the cable reel or coordinate access points.
Can the Fiber Driver be loaded onto the cable mid-span?
Yes. The Fiber Driver can be loaded onto or removed from compatible fiber at a mid-span location.
Does the Fiber Driver operate in reverse?
Yes. The tool operates in both forward and reverse, allowing the operator to push or retract compatible cable.
Are the drive and idle wheels replaceable?
Yes. The wheels are removable and serviceable. Alternative wheels and accessories may be available for different cable profiles.
What is the difference between the 18-FFPC1 and 18-FFP1?
The 18-FFPC1 is a complete kit with multiple duct adapters and a fitted hard case. Its included drive and idle wheels are optimized for compatible flat fiber approximately 0.3 inches wide.
The 18-FFP1 includes a urethane drive wheel intended to provide improved performance with compatible round fiber, one 12.7 mm duct adapter, and a cloth storage bag.
Request a Jameson Fiber Driver Demonstration
Contact Intermountain Sales for 18-FFPC1 availability, product information, compatible accessories, and a Fiber Driver demonstration.
Contact Intermountain Sales for Product Demo
