Part Number: RB-36

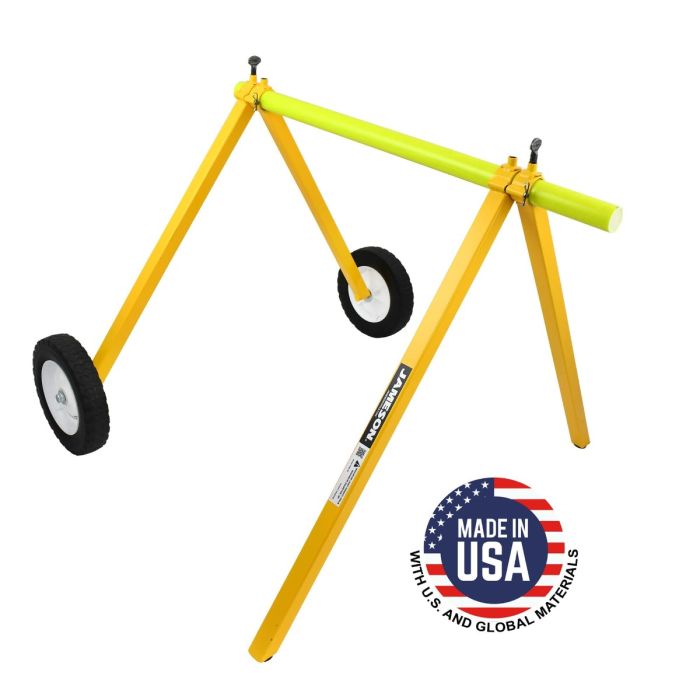

The Jameson RB-36 Spool Mule is a portable, collapsible cable reel stand designed to organize and dispense fiber cable, microduct, power cable, coax, Cat-6, pull tape, rope, and other spooled materials.
Its heavy-duty steel frame supports reels weighing up to 100 pounds and measuring up to 36 inches in diameter. Built-in wheels make loaded reels easier to reposition around the jobsite, while the folding design simplifies transportation and storage.
The Spool Mule includes a 27-inch foam-core fiberglass axle, eliminating the need to find scrap conduit or supply a separate axle before beginning an installation.
Managing cable directly from an unsecured spool can create tangles, unwanted movement, and unnecessary setup work. The Jameson Spool Mule provides a stable platform that allows compatible reels to rotate as material is dispensed.
The RB-36 is especially useful for FTTH construction, microduct installation, telecommunications work, electrical projects, and indoor cable installations. Its integrated wheels allow operators to reposition the stand without completely dismantling the setup.
When the job is complete, the frame collapses for easier transport in a service vehicle and compact storage in the shop.
The Jameson RB-36 accommodates compatible cable and material reels measuring up to 36 inches in diameter. This capacity allows crews to work with larger reels without investing in an oversized commercial reel trailer or fixed payout system.
The stand has a maximum rated load capacity of 100 pounds. Both the reel diameter and total loaded weight must remain within the manufacturer’s specified limits.
The Spool Mule includes a 27-inch foam-core fiberglass axle, providing crews with a ready-to-use reel support system. The axle can accommodate multiple compatible narrow spools when their combined dimensions and weight remain within the stand’s limits.
Longer compatible axles may be used for certain multiple-spool configurations. Confirm the proposed axle, reel arrangement, and total load are suitable before operation.
The RB-36 combines a heavy-duty steel frame with a collapsible design. This construction provides a stable platform during cable payout while making the stand easier to transport and store between jobs.
Crews can fold the Spool Mule for placement in a service vehicle, warehouse, or tool-storage area without dedicating permanent space to a fully assembled reel stand.
Integrated wheels make the Spool Mule easier to maneuver around a construction site. The wheels and rubber feet are designed not to damage compatible indoor surfaces, making the RB-36 useful for remodeling, rework, commercial cabling, and other installations performed inside finished buildings.
Always unload or secure the reel as appropriate before moving the stand across uneven surfaces, slopes, stairs, or other jobsite hazards.
The Jameson Spool Mule can organize and dispense many types of spooled material, including:
Reel dimensions, axle opening, material weight, and jobsite conditions should be verified before use.
The Jameson RB-36 Spool Mule is suited for professional applications including:
The Jameson RB-36 Spool Mule includes:
Cable reels and spooled materials are not included.
| Specification | Details |
|---|---|
| Manufacturer | Jameson |
| Model | RB-36 |
| Product Type | Portable cable reel stand and spool holder |
| Maximum Reel Diameter | 36 inches |
| Maximum Load Capacity | 100 pounds |
| Included Axle | 27-inch foam-core fiberglass axle |
| Frame Material | Heavy-duty steel |
| Design | Collapsible |
| Mobility | Built-in wheels |
| Surface Protection | Rubber feet and wheels |
| UPC | 810075961850 |
Intermountain Sales supplies Jameson fiber installation and cable-handling tools to broadband contractors, telecommunications crews, utilities, municipalities, electricians, and professional installers throughout Colorado, Utah, Wyoming, Montana, and Idaho.
Our team can help determine whether the RB-36 Spool Mule is appropriate for your reel diameter, material weight, axle requirements, and installation workflow. Product demonstrations are available for crews that want to evaluate the Spool Mule alongside Jameson Fiber Driver equipment and other fiber installation tools.
The RB-36 is a portable cable reel stand used to organize and dispense fiber cable, microduct, power cable, coax, data cable, pull tape, rope, and other compatible spooled materials.
The Jameson RB-36 has a maximum load capacity of 100 pounds. The combined weight of all reels and materials placed on the stand must not exceed this rating.
The Spool Mule accommodates compatible reels measuring up to 36 inches in diameter. Reel width, axle opening, weight, and overall fit must also be verified.
Yes. The RB-36 includes a 27-inch foam-core fiberglass axle, so crews do not need to provide scrap conduit or purchase a standard axle separately.
The 27-inch axle can hold multiple compatible narrow spools when they fit properly and their combined weight remains within the 100-pound capacity. Longer compatible axles may be used for certain configurations after suitability has been confirmed.
Yes. Its collapsible frame allows the Spool Mule to be broken down for easier transportation and more compact storage.
Yes. Its rubber feet and wheels are designed to avoid damaging compatible indoor surfaces, making it useful for cabling and rework inside finished buildings.
Yes. The Spool Mule can hold compatible reels of flat drop fiber, along with round fiber, microduct, coax, Cat-6, power cable, and other spooled materials.
Yes. The RB-36 can support a compatible fiber reel while an operator uses the Jameson Fiber Driver to feed cable into the duct. Reel size, cable compatibility, route conditions, and safe equipment placement must be confirmed before installation.
Contact Intermountain Sales for RB-36 availability, product information, cable reel compatibility, and a Jameson Spool Mule demonstration.
