RD-12
In stock
SKU
RD-12
₹9,999.00

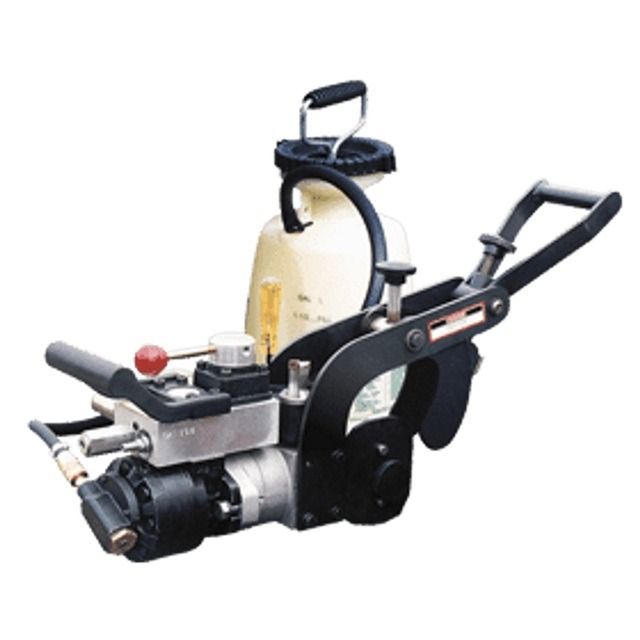

Stanley RD12 Hydraulic Rail Drill
Part Number:
RD12101
The Stanley RD12 Hydraulic Rail Drill is built for power, precision, and the lowest cost-per-hole of any drill on the market. Designed for railroad maintenance crews, the RD12 delivers fast, reliable drilling in all rail profiles with up to 1-9/16 in. (36 mm) bit capacity and carbide-tipped bits that provide long life and maximum efficiency. With its rugged hydraulic design and lightweight aluminum construction, the RD12 is the go-to drill for utility, transit, and rail professionals worldwide.
Key Benefits
- Lowest Cost-Per-Hole – Exclusive indexable carbide inserts extend bit life and reduce consumable costs.
- Lightweight & Portable – Weighs only 58.5 lbs (26.5 kg) for easier handling and transport.
- Fast Setup – Over-center clamp design and tool-free template/bit changes cut setup time dramatically.
- Automatic Feed System – Efficient, clutch-free drilling design eliminates gears, shims, and clutches.
- Integrated Water Cooling – Preset water ports provide consistent coolant flow with no oil required.
- Ergonomic Operation – Balanced design with storage for extra bits keeps crews productive in the field.
Typical Applications
- Railroad track maintenance and repair
- Transit rail infrastructure work
- Drilling for insulated joints, bonding, and maintenance plates
- Utility and industrial rail system upkeep
Specifications
- Bit Capacity: Up to 1-9/16 in. (36 mm) diameter
- Bit Type: Indexable carbide inserts (2) on holder
- Output: 1.5 in. (38 mm) hole in ~40 seconds
- RPM: 900 (at 10 GPM / 38 lpm)
- Flow Range: 8–10 GPM (30–38 lpm)
- Pressure: 2,000 psi (140 bar)
- Feed Rate: .0013 in./rev (0.03 mm/rev)
- Water Capacity: 2 gallons (7.6 liters)
- Weight: 58.5 lbs. (26.5 kg)
- Length: 28 in. (71.1 cm)
- Height: 12 in. (30.5 cm)
- Width: 19 in. (48 cm)
- Connect Size/Type: HTMA Flush-Face Coupler
Accessories
Included with RD12101 Model:
- Water tank, couplers, Torx wrench
(Bits, carbide tips, templates, and hose whips sold separately)
Available Drill Bits:
- 1 in. through 1-9/16 in. trepanning bits
- Metric sizes: 22 mm – 36 mm
- Annular cutters: 3/4 in. – 1-7/16 in.
Other Accessories:
- Ten-piece carbide insert kit
- Pilot pins
- Templates (contact Intermountain Sales for available rail profiles)
Warranty
Stanley Hydraulic Tools warrants the RD12 and its components against defects in materials and workmanship for 18 months from purchase. Warranty becomes void if maximum flow and pressure ratings are exceeded.
Why Choose the RD12?
- Fast, reliable drilling for rail maintenance and transit crews
- Lowest consumable cost per hole with carbide insert technology
- Lightweight, portable, and ergonomic design for long workdays
- Backed by Stanley Hydraulic Tools’ proven reliability
Order the RD12 Rail Drill Today
Call Intermountain Sales Inc. at (303) 762-1070
