VCam Wi-Fi Adapter
In stock
SKU
VCam Wi-Fi Adapter
$999,999.00

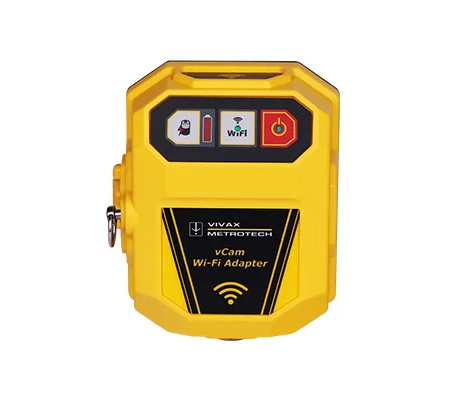

Vivax-Metrotech vCam Wi-Fi Adapter
Part Number: 1.114.03.00001
Wireless Control for Vivax-Metrotech HD Camera Reels
The Vivax-Metrotech vCam Wi-Fi Adapter turns a compatible vCam reel equipped with an HD camera head into a compact wireless pipe inspection system. Instead of using a traditional control module, operators can connect the camera reel to a compatible smartphone or tablet through the vCam Mobile Controller (VMC) App.
Once connected, the mobile device becomes the system’s monitor, controller, recorder and file-management tool. Operators can view live inspection video, control the camera lights, reset the distance counter, activate the sonde, add text and audio commentary, capture images and record inspection videos directly from the app.
The vCam Wi-Fi Adapter is an excellent accessory for contractors, plumbers, municipal crews and utility professionals who want a lighter, more portable camera setup with modern recording and file-sharing capabilities.
Key Features & Benefits
Wireless Camera Viewing and Control
Use a compatible iOS or Android smartphone or tablet as the camera system’s monitor and controller.
Full Reel Control Through the VMC App
Adjust the camera LEDs, reset the distance counter, activate the sonde, add on-screen text and record audio commentary from the connected mobile device.
High-Definition Video Recording
Record MP4 video at 1080p and 30 frames per second, with selectable 720p and 480p recording options available through the app.
Capture and Share Inspection Files
Record videos and JPEG images directly to the mobile device, organize them in the app’s searchable gallery and share completed inspection files from the field.
USB File Storage
Save or copy inspection files to a removable USB thumb drive connected directly to the adapter. The USB-A port supports removable drives up to 128 GB.
Compact, Portable Setup
Eliminate the need for a conventional control module when operating a compatible Vivax-Metrotech camera reel.
Quick-Release Reel Mount
The included mounting bracket attaches to the tube frame of compatible Vivax-Metrotech reels for a clean, secure jobsite setup.
Rechargeable Battery
The internal lithium-ion battery provides up to six hours of intermittent operation from an approximately three-hour charge.
Compatible Vivax-Metrotech Camera Equipment
The vCam Wi-Fi Adapter is designed for Vivax-Metrotech camera reels equipped with an HD camera head. Compatible HD camera heads include:
- D18-HD camera head
- D26-HD camera head
- D34-HD camera head
- D46-HD camera head
The adapter supports current Type-MX and Type-CP reels. It can also be used with legacy Type-C, Type-P, Type-M and Type-M2 reels that have received the appropriate HD camera upgrade.
Compatibility Note: Camera reels, connection cables and camera-head configurations can vary. Contact Intermountain Sales before ordering so we can confirm compatibility with your existing Vivax-Metrotech camera system.
Technical Specifications
| Specification | Details |
|---|---|
| Product | vCam Wi-Fi Adapter |
| Part Number | 1.114.03.00001 |
| Video Format | MP4 |
| Image Format | JPEG |
| Recording Resolution | 1080p at 30 FPS; selectable 720p or 480p |
| Wi-Fi Range | Up to 200 ft. (60 m) |
| File Storage | Mobile device or removable USB drive up to 128 GB |
| Sonde Frequencies | 512 Hz, 640 Hz or 33 kHz |
| Battery | Internal rechargeable lithium-ion battery |
| Battery Runtime | Up to 6 hours of intermittent operation |
| Charging Time | Approximately 3 hours |
| Environmental Rating | IP67 |
| Construction | ABS plastic enclosure |
| Adapter Dimensions | 4.5 × 2.6 × 5.4 in. (115 × 66 × 137 mm) |
| Adapter Weight | Approximately 1.5 lb. (0.66 kg) |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Minimum Mobile OS | iOS 14 or later; Android 10 or later |
What’s Included
- vCam Wi-Fi Adapter
- Ball mount
- Reel mounting bracket and mounting hardware
- Type-MX reel interconnect cable
- Type-CP reel interconnect cable
- Interconnect-cable mounting clips
- Hook-and-loop cable ties
- USB-C charging cable
- Multi-plug AC charger
- Accessory bag
- User manual
- Quick Setup and Connect Guide
Need Pricing or Compatibility Assistance?
The vCam Wi-Fi Adapter is an accessory for compatible Vivax-Metrotech inspection camera systems . Intermountain Sales can help confirm compatibility with your existing reel, camera head and connection cables before you order.
Contact Intermountain Sales Inc. for current pricing, availability, product support and system compatibility assistance.
