Hydro-Vac Skid Gas

In stock
SKU
Hydro-Vac Skid Gas
₹999,999.00

Hydro-Vac Skid, Gas

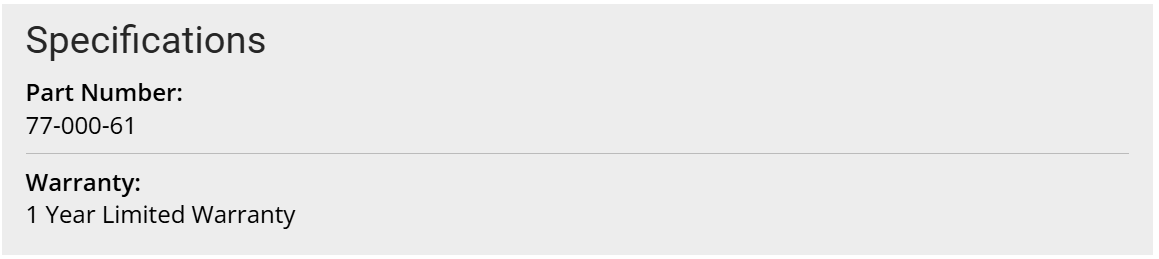

Part Number: 77-000-61

The E.H. Wachs Hydro-Vac Skid Gas is a pre-assembled system mounted on a durable steel skid, designed for quick and easy installation on flatbed trucks. Powered by a 27 HP Kohler overhead cam air-cooled gasoline engine, this unit provides reliable power for all its integrated functions.

Customizable and Upgradeable Design

Built on the versatile Wachs Standard Builder Skid Platform, this system can be tailored to meet your exact needs and budget. Its modular design allows for future upgrades, ensuring you can enhance its functionality as requirements grow. For example, start with a Hydro-Vac Skid equipped with hydraulics today and add an ERV-750 Valve Exerciser later for expanded capabilities.

Pre-Installed for Easy Installation

Wachs skid systems are pre-installed and pre-wired for a ready-to-run solution. The heavy-duty skid is designed for efficiency and durability, featuring:

  • A 3-inch tall formed and welded frame
  • 8-inch full-length fork slot tubes for ease of handling

    Installation is as simple as bolting the skid to your truck flatbed, minimizing labor and installation costs.

    Powerful Features

    The Hydro-Vac Skid, Gas is equipped with:
  • 500 CFM @ 11 in Hg positive displacement blower, ensuring efficient vacuum performance
  • 250-gallon spoils tank with a hydraulic-powered slide, tilt, and dump system. The tank features a powered latching rear door for secure debris containment and easy discharge
  • A 2.5 GPM @ 3000 PSI pressure washer system, ideal for a variety of cleaning tasks
  • 3-gallon anti-freeze tank for cold-weather operations
  • 80-gallon vertical water tank

    Included Accessories
  • Suction wands in 2-1/2 in, 1-1/4 in, and 7/8 in sizes
  • Short and long wash-down guns
  • 20 ft suction hose and 50 ft retractable hose reel

    Valve Exerciser Compatibility

    This unit includes vacuum, spoils tank, and pressure washer systems but does not come with a valve exerciser. Valve exercisers, such as the ERV-750, can be ordered separately. For an integrated solution, consider the Standard LX Valve Maintenance Skid, Gas, which includes the ERV-750 Valve Exerciser.

    The Wachs Hydro-Vac Skid, Gas is a robust, adaptable system designed to handle demanding excavation and maintenance tasks while providing the flexibility to upgrade as your needs evolve.
