TS-440 Hydraulic Core Drill
Part Number: DR1027
The TS-440 Hydraulic Core Drill from Shibuya™ is a versatile and robust solution for demanding core drilling applications. Designed to handle up to 16-inch diameter bits, this hydraulic core drill delivers exceptional performance and reliability in a compact and lightweight design. Equipped with a Danfoss OMS-160 motor, the TS-440 is built to excel in a wide range of professional applications, including concrete, masonry, and other hard materials.
Key Features
- Powerful Hydraulic Motor:
- Powered by a compact and efficient Danfoss OMS-160 motor for consistent performance.
- Variable speeds up to 250 RPM at 10 GPM ensure precision and adaptability.
- High Drilling Capacity:
- Maximum bit diameter of 16 inches with included spacers, making it ideal for medium-to-large drilling tasks.
- Column length of 43 inches (1,000 mm) provides extended reach and flexibility.
- Durable and Reliable Design:
- Fixed base ensures stability during operation.
- Constructed for long-lasting performance with high-quality components.
- Hydraulic Efficiency:
- Operates at a working pressure of 2,000–2,500 PSI (138–172 Bar) and a maximum pressure of 2,500 PSI (172 Bar).
- Requires a hydraulic oil flow of 10 GPM (37 LPM).
- Convenient Accessories:
- Includes 1-1/4”-7 male thread adapter for compatibility with standard bits.
- Flush-face hydraulic couplers are pre-installed for ease of use.

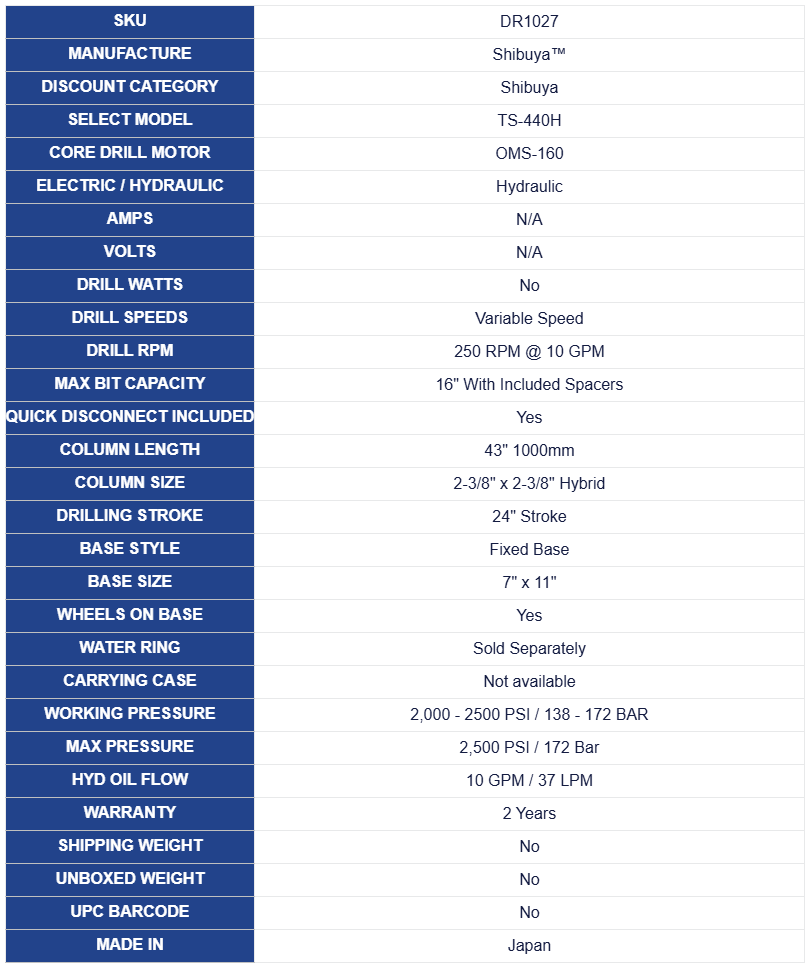

Specifications
- SKU: DR1027
- Column Size: 2-3/8” x 2-3/8” Hybrid
- Drilling Stroke: 24 inches
- Base Style: Fixed Base (7” x 11”)
- Hydraulic System Requirements:
- Pressure: 2,000–2,500 PSI
- Oil Flow: 10 GPM
- Warranty: 2 years
- Made in: Japan
Applications
- Construction:
- Perfect for heavy-duty drilling in reinforced concrete and masonry.
- Utility and Infrastructure:
- Ideal for drilling through bridges, highways, and utility poles.
- Industrial Maintenance: Used in manufacturing and industrial settings for large-scale drilling needs.
Why Choose the TS-440 Hydraulic Core Drill?
The TS-440 Hydraulic Core Drill combines power, precision, and reliability in one compact package. With its durable build, high drilling capacity, and advanced hydraulic motor, it is a top choice for professionals looking for efficient and long-lasting performance. Paired with Shibuya’s extensive line of accessories, this core drill becomes part of a fully integrated drilling system.
Contact Intermountain Sales Inc. today to request a quote or download the spec sheet for the TS-440 Hydraulic Core Drill!
