Hydra Tech S 2TC 2 2 Inch Trash Pump

In stock

₹999,999.00

S2TC-2 Hydraulic Submersible Utility Pump

Part Number: S2TC-2

Overview

The S2TC-2 Hydraulic Submersible Utility Pump from Intermountain Sales Inc. is a highly portable and versatile solution for various pumping needs. Designed to handle solids and perform efficiently in demanding environments, this pump is ideal for construction sites, manhole pumping, and other utility applications.

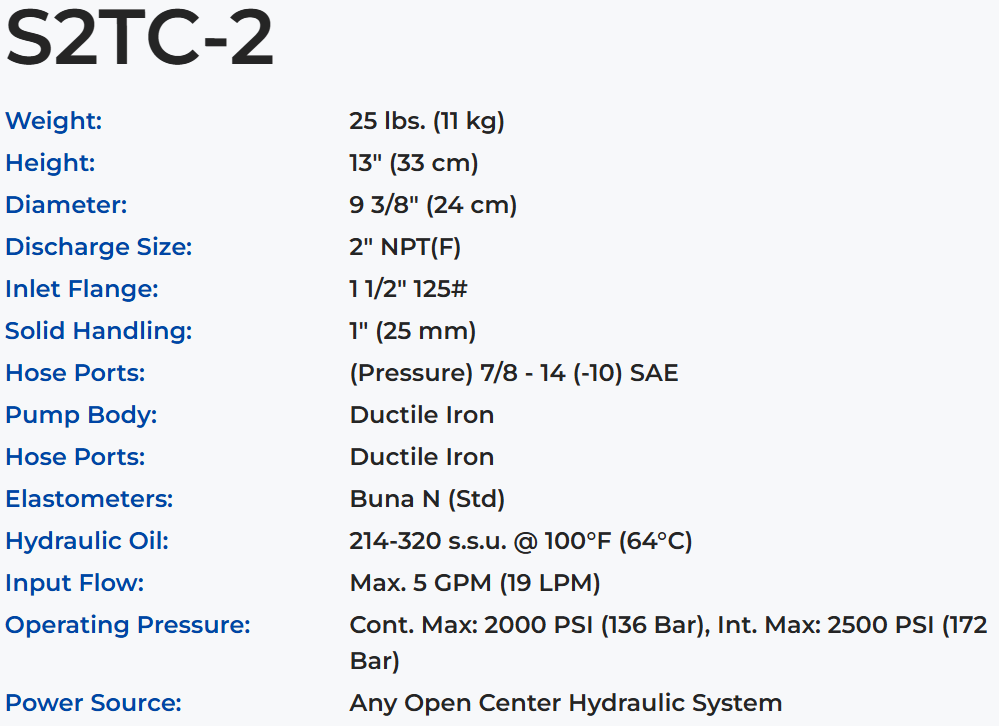

Key Specifications

Weight: 25 lbs. (11 kg)
eight: 13" (33 cm)
Diameter: 9 3/8" (24 cm)
Discharge Size: 2" NPT(F)
Inlet Flange: 1 1/2" 125#
Solid Handling: 1" (25 mm)
Hose Ports: (Pressure) 7/8 - 14 (-10) SAE
Pump Body: Ductile Iron
Elastomers: Buna N (Standard)
Hydraulic Oil: 214-320 s.s.u. @ 100°F (64°C)
Input Flow: Max. 5 GPM (19 LPM)
Operating Pressure: Continuous Max: 2000 PSI (136 Bar), Intermittent Max: 2500 PSI (172 Bar)
Power Source: Any Open Center Hydraulic System

Features

Efficient Two Channel Impeller: Capable of passing 1" (2.5 cm) semi-solids, ensuring excellent performance.
Variable Speed Hydraulic Drive: Allows precise control and adaptability to different tasks.
Compact and Lightweight: Easy to transport and handle, making it suitable for various job sites.
Versatile Mounting Options: Can be bolted directly to a tank or truck for added convenience.
Safe Hydraulic Drive: Ideal for use in environments where electric power is hazardous or impractical.
Compatibility: Operates with HT6 through HT13 power units or other hydraulic power sources capable of flows up to 5 GPM.
Optional Strainers: Available with standard trash strainer or optional water strainer for different applications.
Durable Construction: Made from ductile iron with options for stainless steel and aluminum models.

Applications

The S2TC-2 is perfect for a wide range of utility pumping tasks, including construction site dewatering, manhole pumping, and other demanding applications where portability and reliability are essential.
For more information,contact us at forms@intermtnsales.com.
