Stanley TP 03

In stock

SKU

Stanley TP 03

₹999,999.00

TP03 Hydraulic Trash Pump

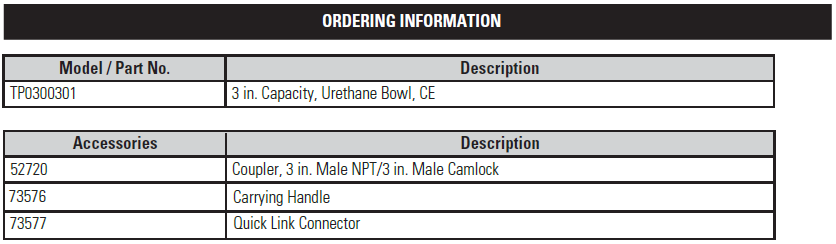

Part Number:

TP0300301

The Stanley TP03 Hydraulic Trash Pump is a lightweight, submersible pump designed to handle high-volume liquid transfer in demanding environments. Engineered for durability and efficiency, the TP03 can manage water, sand, clay, mud, and solids up to 3 inches in diameter with ease. With its robust construction and user-friendly features, this pump is ideal for construction, dewatering, dredging, and light cleaning tasks.

Key Features

High Capacity:
Discharge rate of 450 GPM (1,688 LPM) at optimal conditions.
Handles solids up to 3 inches (7.62 cm) in diameter.
Self-Priming and Submersible:
No priming required; simply submerge and start operation.
Durable Construction:
Features a urethane bowl and impeller for abrasion resistance and long life.
Resistant to petrochemical solvents and harsh environments.
Versatile Performance:
Suitable for dewatering sumps, vaults, trenches, and septic systems.
Dry-Run Capability:
Can operate dry without damaging the motor or impeller, minimizing downtime.
Portable Design:
Weighs only 31 lbs. (14 kg), with a convenient carry handle for easy transport.

Product Videos:

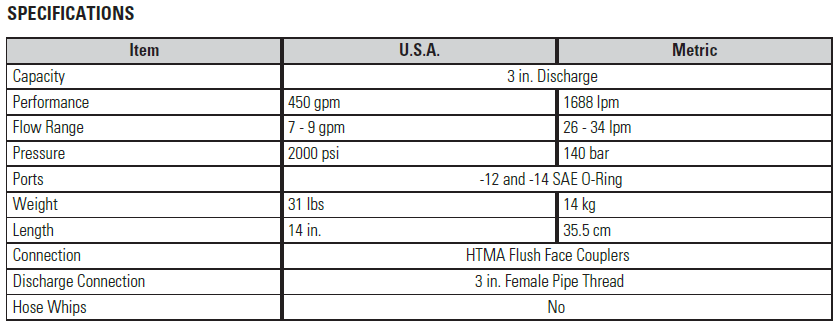

Specifications

Capacity: 450 GPM (1,688 LPM)
Flow Range: 7–9 GPM (26–34 LPM)
Working Pressure: Up to 2,000 PSI (140 Bar)
Discharge Size: 3-inch NPTF with 3-inch Camlock
Weight: 31 lbs. (14 kg)
Dimensions:
Length: 14 inches (35.5 cm)
Height: 16.5 inches (42 cm)
Width: 12 inches (30.4 cm)
Porting: -12 and -14 SAE O-Ring
Couplers: Flush-face couplers included.

Applications

Construction Sites:
Dewatering trenches, foundations, and excavation sites.
Environmental Cleanup:
Removing water and solids in flood control or emergency scenarios.
Dredging:
Effectively handles sediment removal and light cleaning tasks.
Industrial Maintenance:
Clears sludge, mud, and debris from sumps or work structures.

Accessories

3-Inch Camlock Coupler: Facilitates easy and secure connections.
Lay-Flat Discharge Hose: 25-foot (7.62 m) and 50-foot (15.24 m) options available.
Hydraulic Hoses: Twinned or dual hoses with various lengths and couplers.

Why Choose the TP03 Hydraulic Trash Pump?

The Stanley TP03 combines lightweight portability, efficient operation, and rugged design. Its self-priming capability, ability to handle solids, and minimal maintenance requirements make it an essential tool for professionals in construction, industrial, and environmental applications.

Contact Intermountain Sales Inc. today to learn more or request a quote for the TP03 Hydraulic Trash Pump.
