Stanley_SM-21

In stock

SKU

Stanley SM 21

₹999,999.00

SM21 Submersible Pump

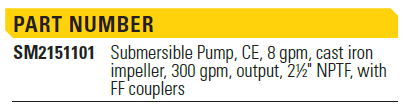

Part Number:

SM2151101

The Stanley SM21 Hydraulic Submersible Pump is a highly efficient and durable solution for dewatering and liquid transfer needs in confined spaces, construction sites, and industrial environments. Its compact design and superior performance make it an essential tool for professionals requiring reliable water management.

Key Features

High Performance:

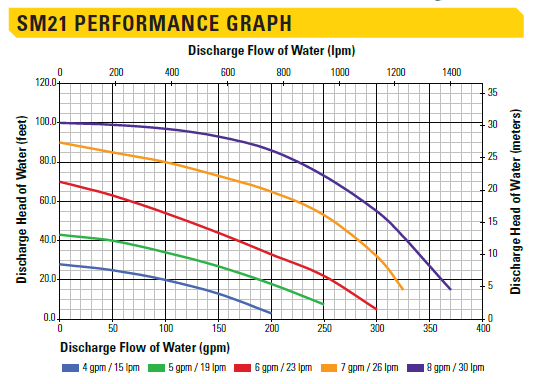

Pumps up to 300 GPM (1,135 LPM) at a 50-foot head.
Ideal for removing water and solids in trenches, vaults, and manholes.

Durable and Lightweight:
Constructed with a cast iron impeller for abrasion resistance.
Weighs only 20 lbs. (9.1 kg), allowing for easy transport and deployment.

Compact Design:
At only 6¼ inches wide, it fits through narrow openings and confined spaces.

Self-Priming and Submersible:
Requires no priming or suction hose, ensuring quick operation in any environment.

Maintenance-Free:
Minimal moving parts reduce the need for servicing.
Can run dry without damage, maximizing uptime.

Versatile Applications:
Operates in harsh conditions with a hydraulic flow range of 4–9 GPM (15–34 LPM) at 1,000–2,000 PSI.

Specifications

Capacity: 300 GPM (1,135 LPM)
Discharge Size: 2½ inches NPTF
Hydraulic Flow: 4–9 GPM (15–34 LPM)
Operating Pressure: 1,000–2,000 PSI (70–140 Bar)
Weight: 20 lbs. (9.1 kg)
Dimensions:
Length: 16 inches (40.6 cm)
Width: 6¼ inches (15.9 cm)
Porting: -6 SAE O-Ring Connections:
3/8-inch flush-face quick-disconnect couplers

Applications

Utility and Construction Sites:
Dewatering trenches, sumps, and vaults efficiently.

Manhole Pumping:
Ideal for confined spaces with challenging access points.

Industrial Cleaning:
Handles sludge, slurry, and debris effectively.

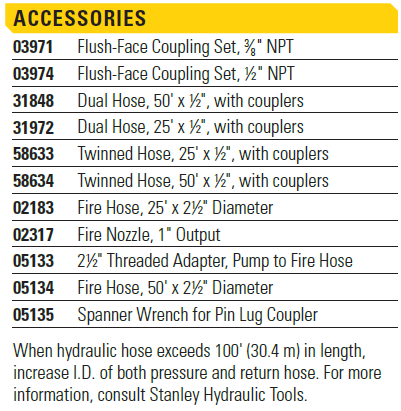

Accessories

Fire Hose: Available in 25-foot and 50-foot lengths.
Adapters: Compatible with 2½-inch threaded and Camlock couplings.
Hose Options: Twinned or dual hydraulic hoses for extended flexibility.

Why Choose the SM21 Submersible Pump?

The Stanley SM21 Submersible Pump combines portability, performance, and durability in one compact package. Designed for ease of use, it delivers exceptional results in even the most demanding environments. Its rugged construction and maintenance-free operation make it a trusted choice for professionals in utility, construction, and industrial applications.

Contact Intermountain Sales Inc. today to learn more about the Stanley SM21 Hydraulic Submersible Pump or to request a quote!
