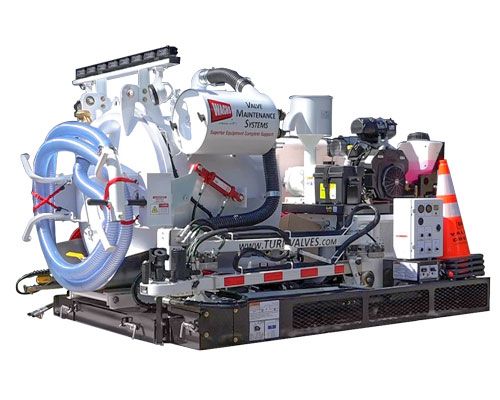

Standard LX Valve Maintenance Skid VMS, Diesel

Wachs Utility Products Standard LX Skid is one of our best-selling solutions, engineered to handle all aspects of valve maintenance programs for municipalities or water districts. Delivering the same advantages as the Standard LX Trailer, this skid-mounted system offers a compact, bolt-on alternative. Each unit is preinstalled and prewired on a robust steel skid, making it ready for quick installation on your flatbed truck.

The Standard LX Skid features our industry-leading ERV-750 extended reach valve operator, offering a 13-foot (3.96-meter) reach and 750 ft/lbs. of torque. This system sets the standard for an upgradeable, all-in-one platform capable of transporting essential valve maintenance and vacuum tools to the field. Designed for durability, it’s the ideal choice for municipalities and contractors seeking a reliable, long-lasting solution for self-contained valve maintenance.

The skid is powered by our exclusive VITALS software, which incorporates "No Assumptions" logic to minimize risks of valve damage. Developed over three decades, VITALS ensures precise operation by preventing misdirection and over-torquing. The software's mobile and desktop modules allow users to set torque limits and record critical infrastructure data, including valve location, operating direction, and torque applied.

The Standard LX Skid VMS Diesel comes equipped with a wireless handheld controller with datalogger and is powered by a dependable Kubota 4-stroke diesel engine. Standard components include:

A 500 CFM, 11in Hg vacuum system
A 250-gallon spoils tank with Wachs’ exclusive hydraulic slide, tilt, and powered rear discharge system
A 2.5 GPM @ 3000 PSI pressure washer with an 80-gallon freshwater tank
An HPU (Hydraulic Power Unit) with an HTMA Class II circuit, 10-gallon reservoir, and fan-cooled heat exchanger, delivering up to 8 GPM @ 2000 PSI

Packed with storage and essential accessories, the Standard LX Skid eliminates the need for multiple trips by including all the tools necessary for advanced valve maintenance. It can also be upgraded with the optional TM-7 HD Plus valve exerciser, which delivers 2,500 ft/lbs of torque, making it ideal for managing larger or more challenging valves.

Standard LX (Diesel) - VMS Valve Maintenance Skid Features
Kubota 1.1L, I-3 4-stroke liquid-cooled twin cylinder engine (EPA Tier 4F & EU Stage IIIA compliant)
ERV-750 Extended Reach Valve Operator with 750 ft/lb. torque
Rugged handheld GPS controller with datalogging capability
Auxiliary HTMA Class II hydraulic circuit (10-gallon reservoir, fan-cooled heat exchanger, continuous-duty rated for 8 GPM @ 1,800 PSI)
Positive displacement blower delivering 500 CFM, 11in Hg vacuum
250-gallon spoils tank with hydraulic slide, tilt, and powered dump system
2.5 GPM @ 3000 PSI pressure washer with an 80-gallon freshwater tank
Suction wands (2.5in, 1.25in, and 7/8in) and short/long wash-down guns
Telescoping valve key
Bluetooth Tether Controller for valve operation
Programmable arrow board and work lights
Hydraulic hose reel

Optional Equipment
TM-7 HD Plus Valve Exerciser
Designed for emergency shutdowns and tough valve operations
Delivers up to 2,500 ft/lbs. of torque
Mounts on the driver’s side for optimal line of sight
Available at the time of purchase or as a retrofit

The Standard LX Skid is a dependable, field-ready solution built to simplify valve maintenance programs and provide unmatched performance for years to come.
