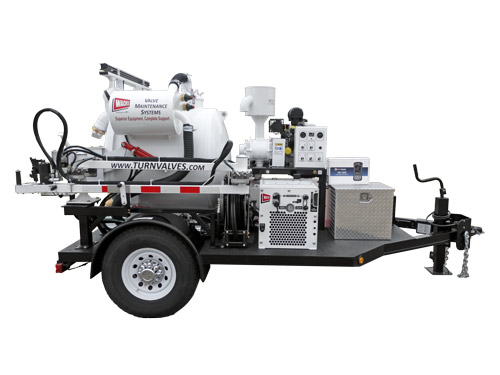

Standard LX Valve Maintenance Trailer VMT, Gas
₹999,999.00
Standard LX Valve Maintenance Trailer VMT, Gas
As a leader in valve maintenance systems, Wachs Utility Products offers a comprehensive range of equipment to perform essential and mandated procedures, ensuring your water infrastructure is tracked and operates efficiently. The Standard LX Valve Maintenance Trailer has become a popular choice for municipalities and water districts looking to self-manage valve maintenance programs.

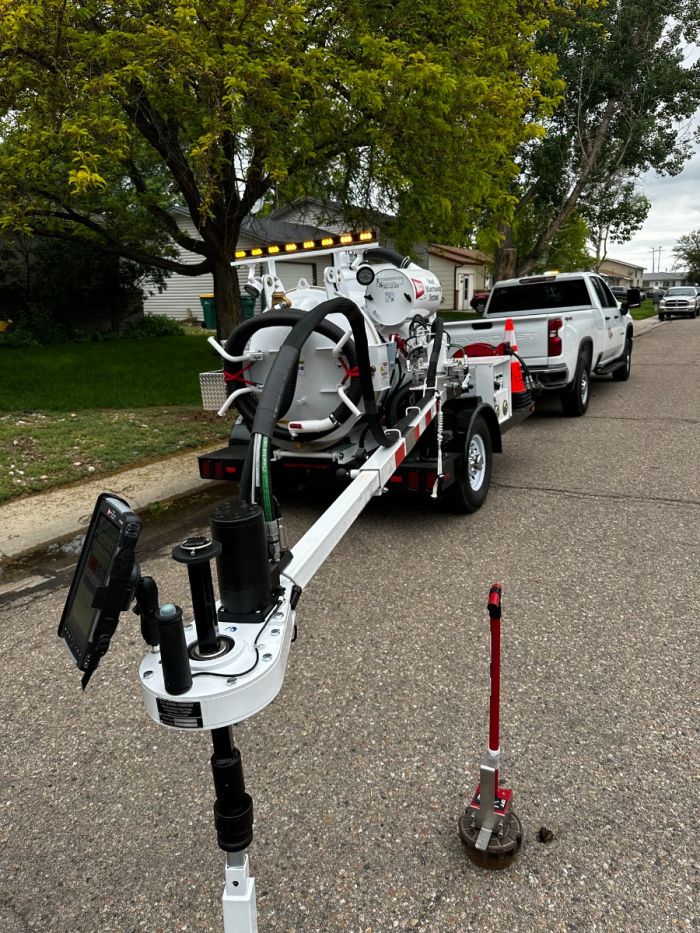

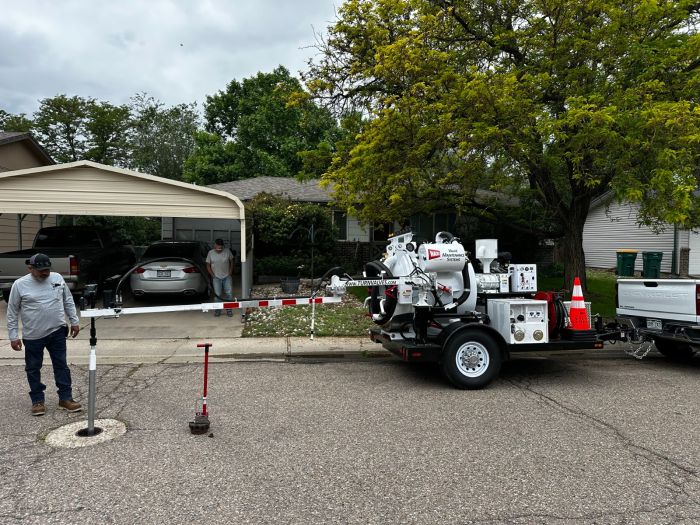

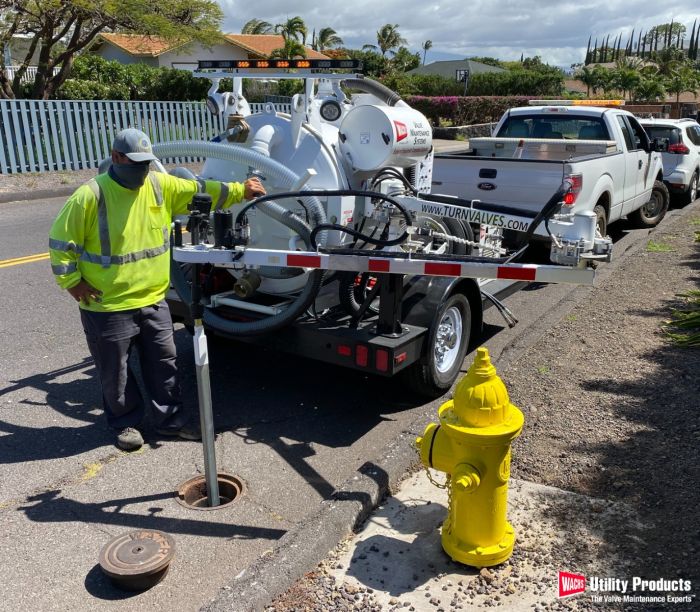

Equipped with Wachs' exclusive VITALS software, the Standard LX helps you monitor your water infrastructure and maintain peak performance. This trailer includes the industry-standard ERV-750 extended reach valve operator, which offers a 13-foot reach and 750 ft-lbs of torque. Built as a fully upgradeable and versatile platform, the Standard LX is designed to transport all necessary valve maintenance and vacuum tools into the field.

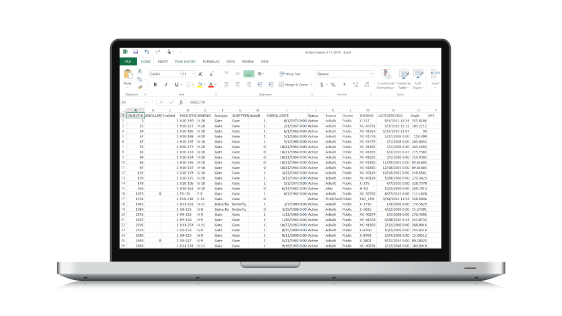

The Standard LX supports Wachs' VITALS software, a sophisticated tool that prevents valve damage through "No Assumptions" programming logic. Developed over 30 years, VITALS software enables you to set torque limits and record details such as location, operating direction, and torque applied. The software includes both mobile and desktop modules, streamlining field data collection and infrastructure management.
Powered by a 27 HP Kohler Command Pro v-twin gasoline engine, the Standard LX comes equipped with a wireless handheld tablet controller, a powerful 500 CFM-11in Hg vacuum, and a 250-gallon spoils tank with hydraulic slide, tilt, and power-latching rear door. Additional features include a 2.5 GPM @ 3000 psi pressure washer with a 95-gallon water tank, an HPU with HTMA Class II circuit, 10-gallon reservoir, and fan-cooled heat exchanger delivering 8 GPM @ 2000 psi.
The Standard LX is designed for single-valve turner applications and does not support the TM-7 SD Plus valve exerciser like the Grand LX, making it ideal for general valve maintenance. For larger or more demanding applications, the TM-7 HD Plus may be preferred for its suitability with large or tough-to-turn valves.
Key Components and Specifications:
- Wachs ERV-750 valve operator with 750 ft-lb torque and 13-foot reach

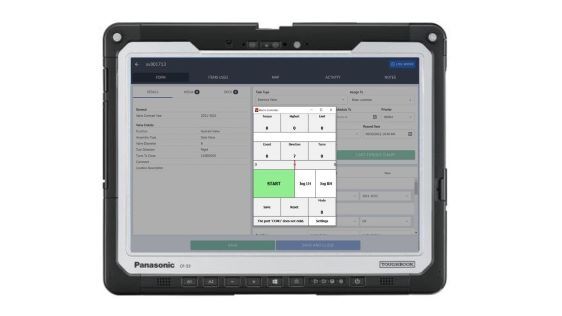

- TC-100 rugged handheld tablet with GPS controller/datalogger
- 27 HP Kohler v-twin gasoline engine for reliable power
- HTMA Class II auxiliary circuit with 10-gallon reservoir and fan-cooled heat exchanger (8 GPM @ 1,800 PSI)
- 500 CFM-11in Hg vacuum system with 250-gallon spoils tank (hydraulic slide, dump, and rear-latch system)
- 2.5 GPM @ 3000 PSI pressure washer with a 95-gallon water tank
- 7-gallon antifreeze tank
- Suction wands (2.5", 1.25", 7/8") with short and long wash-down guns
Inclued LX Package Accessories: - Light bar
- Auxiliary hydraulic hose reel
- Bluetooth tether

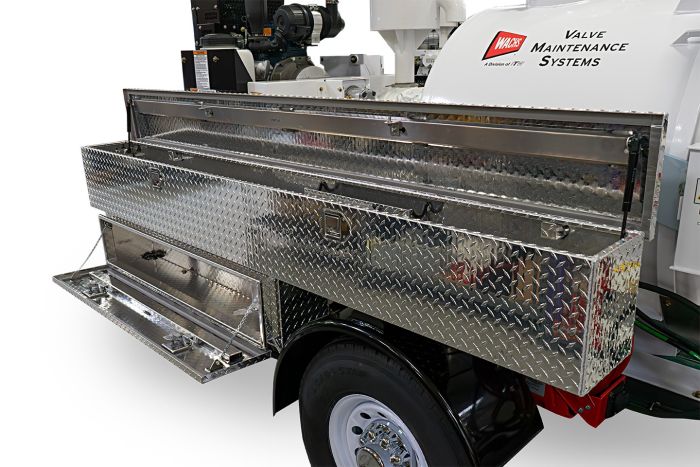

- Diamond plate lockable watertight job boxes
- Valve Box Buddy magnetic cover lifter
This tailer is fully equipped for robust valve maintenance, bringing efficiency and reliability to field operations.
