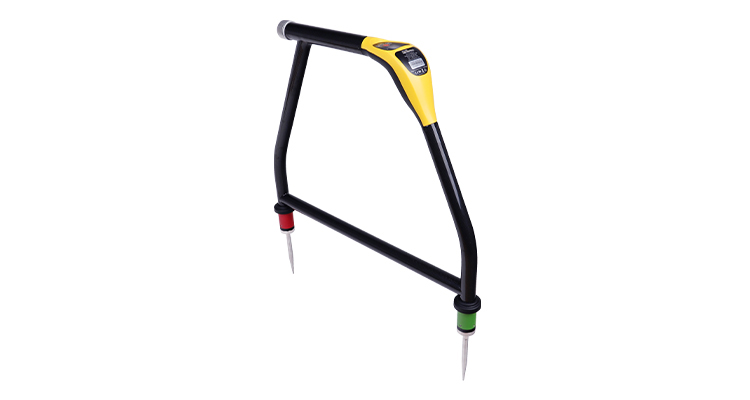

VM-510FFL+ Fault Locator

Part Number: 1.204.09.00003

Advanced A-Frame Fault Locator for Underground Cable Fault Detection

The VM-510FFL+ Cable Fault Locator is a high-performance A-frame fault locator designed to quickly and accurately locate underground cable faults, including sheath faults and ground faults. Built for simplicity and efficiency, this standalone fault locator allows technicians to locate both the cable path and the exact fault location using a single device paired with a compatible transmitter.

With the VM-510FFL+, there is no need for a separate utility locator or complex cable connections. Once a compatible transmitter is connected to the line and placed into fault-finding mode, operators can use the intuitive controls of the VM-510FFL+ to trace the cable and pinpoint the fault location with precision.

This makes it an ideal solution for utility contractors, municipalities, and technicians responsible for maintaining underground electrical and communication infrastructure.

Locate Underground Cable Faults Faster and More Accurately

Finding faults in underground cables can be time-consuming and difficult without the right equipment. The VM-510FFL+ simplifies the entire process by combining cable locating and fault pinpointing into one easy-to-use system.

Using an A-frame fault locating method, the VM-510FFL+ detects voltage gradients in the ground to guide operators directly to the fault. The system provides clear directional guidance, allowing technicians to stay on the cable path while moving toward the exact fault location.

This streamlined process reduces downtime, improves efficiency, and minimizes excavation by helping crews pinpoint faults quickly and accurately.

Standalone Fault Locator with Simple Operation

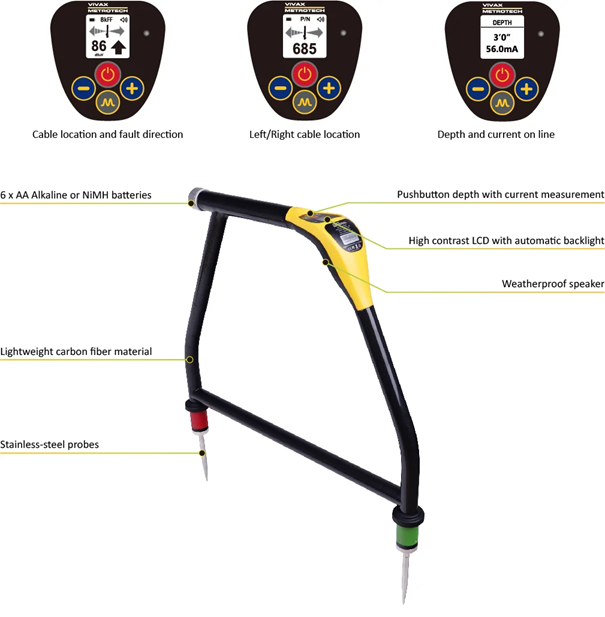

The VM-510FFL+ is designed for ease of use in the field. With simple four-button controls and fully automatic operation, technicians can begin locating faults with minimal setup or training.

Unlike traditional systems that require multiple devices, this standalone cable fault locator eliminates the need for additional receivers or complex connections. This reduces equipment requirements and allows crews to work more efficiently in the field.

The intuitive interface makes it easy for both experienced technicians and newer operators to perform accurate fault locating.
