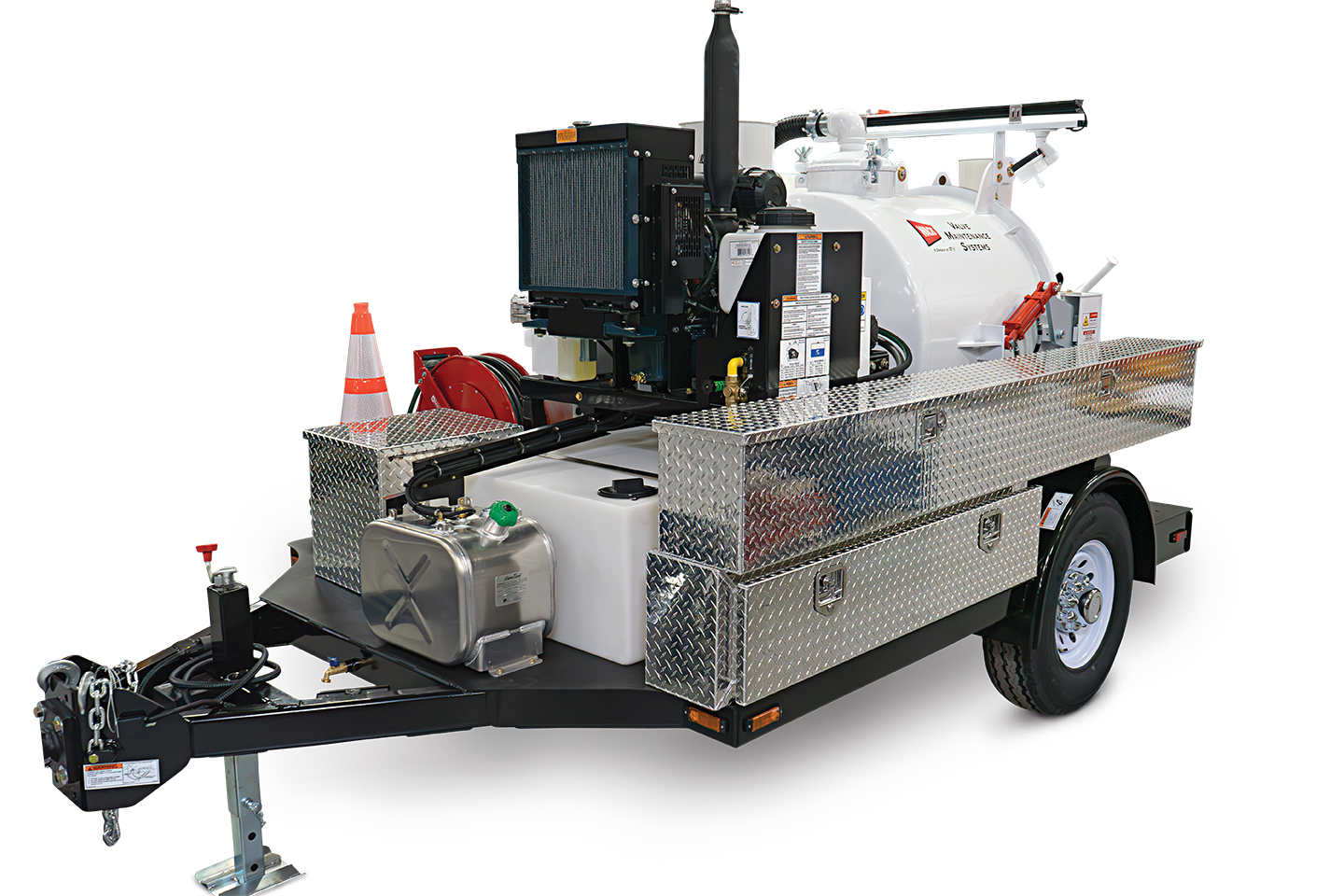

The Standard LX Valve Maintenance Trailer VMT Diesel is a powerful, fully self-contained valve exerciser trailer designed for municipalities, water utilities, and contractors responsible for maintaining underground water distribution systems. Built for durability and performance, this diesel-powered water valve maintenance trailer delivers the torque, control, and mobility needed to safely operate and maintain buried water valves across large service areas.
As one of the most popular trailer-mounted valve exercising systems available, the Standard LX provides everything needed to implement a proactive valve maintenance program. With a rugged trailer platform, powerful hydraulic system, and integrated tools, crews can efficiently travel from valve to valve while performing routine valve exercising, inspection, and maintenance.
The Standard LX VMT Diesel is designed as a complete valve maintenance trailer that combines a high-performance water valve exercising machine with vacuum excavation, pressure washing, and data tracking capabilities.
Powered by a reliable Kubota 4-stroke diesel engine, this system provides consistent performance in demanding field conditions. The trailer includes a powerful hydraulic power unit, integrated vacuum system, and onboard water supply, making it a true all-in-one municipal valve exercising equipment solution.
This mobile system allows crews to locate, expose, exercise, and maintain valves without the need for multiple pieces of equipment, dramatically improving efficiency and reducing time in the field.
At the core of the Standard LX is the ERV-750 extended reach valve operator, a professional-grade water valve exercising machine capable of delivering up to 750 ft-lbs of torque. With a reach of up to 13 feet, operators can safely access and operate deep or hard-to-reach underground valves.
This high-torque valve exerciser allows crews to:
Safely open and close underground water valves
Operate older or difficult valves with controlled torque
Prevent damage caused by over-torquing
Improve reliability of water distribution infrastructure
As a single valve turner system, the Standard LX is ideal for most municipal valve maintenance programs. For larger or extremely stubborn valves, higher-capacity systems such as the TM-7 HD Plus (available on larger platforms) may be recommended.
The Standard LX supports Wachs VITALS software, a powerful valve maintenance tracking system designed to improve infrastructure management and eliminate guesswork during valve operation.
Built on “No Assumptions” logic, VITALS helps prevent valve damage by ensuring operators apply the correct torque and direction during operation. The system includes both mobile and desktop components, allowing utilities to track and manage valve data across their entire network.
With VITALS software, users can:
Set torque limits to prevent valve damage
Record valve location and operating direction
Track torque applied during each operation
Maintain accurate infrastructure records
Improve long-term valve maintenance planning
This advanced software makes the Standard LX more than just a valve exerciser trailer—it becomes a complete infrastructure management tool.
Municipal water systems depend on thousands of valves to control water flow, isolate pipeline sections, and respond to emergencies. Without regular exercising, valves can become stuck or fail when they are needed most.
The Standard LX valve exerciser trailer is designed to support proactive municipal valve exercising equipment programs by enabling crews to regularly inspect and operate valves across the system.
Using a dedicated valve maintenance trailer helps utilities:
Reduce the risk of inoperable valves
Improve emergency response readiness
Extend the life of water distribution infrastructure
Identify valves requiring repair or replacement
Maintain system reliability and performance
The Standard LX VMT Diesel includes a powerful vacuum excavation and cleaning system to support complete valve maintenance operations in the field.
Key capabilities include:
These integrated systems allow crews to safely expose buried valves, clean valve boxes, and maintain access points without requiring additional equipment.
A valve exerciser trailer is one of the most important investments a water utility can make to protect its infrastructure. By enabling regular valve exercising and maintenance, utilities can prevent costly failures and ensure valves operate when needed.
The Standard LX Valve Maintenance Trailer VMT Diesel provides a reliable, high-performance solution for municipalities seeking a complete water valve exercising machine and trailer system. With its combination of power, mobility, and advanced data tracking, this system helps water departments maintain control over their distribution networks and reduce long-term maintenance costs.
