Grand LX Valve Maintenance Trailer VMT, DIESEL

In stock
SKU
Grand LX Valve Maintenance Trailer VMT, Diesel
$999,999.00
Diesel Valve Maintenance Trailer · Kubota Tier 4F · Esri ArcGIS

E.H. Wachs Grand LX Diesel Valve Maintenance Trailer

Kubota diesel power for water departments that run diesel fleets. Two valve exercisers, vacuum excavation, and a 3,000 PSI washer on one liquid-cooled power train — built for long days of valve exercising and valve rehabilitation, with every valve mapped to infraMAP® and Esri ArcGIS.

Kubota 1.1L 3-cyl diesel EPA Tier 4F TM-7 HD Plus · 2,500 ft-lbs ERV-750 · 13 ft reach Intermountain Sales · Esri Gold Partner
E.H. Wachs Grand LX diesel valve maintenance trailer with Kubota diesel power unit, TM-7 HD Plus and ERV-750
Animated infraMAP water distribution map: a diesel Grand LX crew exercises gate valves along the water mains and each valve is marked exercised with turns and torque

Valve by valve across the distribution system: each exercised gate valve turns green in infraMAP® with its turns and torque on record.

1.1LKubota 3-cylinder
liquid-cooled diesel
Tier 4FEPA emissions
compliant
2,500ft-lbs · TM-7 HD Plus
for stuck gate valves
8 GPMcontinuous-duty HPU
@ 2,000 PSI
Esri logoEsri Gold Partner
ArcGIS sync via infraMAP®
Why Diesel

Why choose the diesel Grand LX valve maintenance trailer?

The diesel Grand LX is the E.H. Wachs dual valve exerciser trailer powered by a Kubota 1.1L, 3-cylinder, liquid-cooled diesel engine that meets EPA Tier 4F and EU Stage IIIA emissions standards. It is the choice for water utilities and public works departments that already fuel their trucks and equipment with diesel and want one fuel across the fleet.

Everything else matches the gas Grand LX: the 2,500 ft-lb TM-7 HD Plus for valve rehabilitation, the 13 ft ERV-750 for routine valve turning, 500 CFM vacuum excavation, a 3,000 PSI pressure washer, and VITALS™ data that flows into infraMAP® and Esri ArcGIS.

Kubota Diesel Power Unit

One diesel engine runs every system on the trailer.

The Kubota diesel drives a common power train — both valve exercisers, the vacuum blower, the pressure washer, and an auxiliary hydraulic circuit for hand tools.

One fuel for the fleet

Fill the trailer's 10 gal DOT aluminum tank from the same diesel supply as your service trucks and heavy equipment.

Liquid-cooled 3-cylinder

A 1.1L, 4-stroke, indirect-injection Kubota with liquid cooling, paired with a thermostatic fan-cooled hydraulic heat exchanger.

Tier 4F emissions

EPA Tier 4F and EU Stage IIIA compliant — current off-road diesel standards for municipal equipment purchases.

Continuous-duty hydraulics

HTMA Class II circuit continuous-duty rated at 8 GPM (30.3 LPM) @ 2,000 PSI with a 10 gal reservoir and 45 ft auxiliary hose reel.

Grand LXDiesel (this page)Gas
EngineKubota 1.1L, 3-cyl, 4-stroke IDI dieselKohler 27 HP Command Pro gas
CoolingLiquid-cooledAir-cooled
EmissionsEPA Tier 4F · EU Stage IIIANot applicable (gasoline engine)
Best fitDiesel fleets and heavy-equipment shopsGasoline fleets
Skid part number77-000-5477-000-55
Valve exercisers, vacuum, washer, trailerIdenticalIdentical

Running a gasoline fleet? See the Grand LX Gas valve maintenance trailer.

Field Workflow

From the valve box to ArcGIS in three steps.

How water operators run a valve exercising program with the diesel Grand LX, VITALS™, and infraMAP® — no clipboards, no re-keying at the office.

Turn

Set the ERV-750 for routine valve turning or the TM-7 HD Plus for a large or stuck gate valve. VITALS™ finds direction and works the valve at the lowest torque that moves it.

Record

The rugged GPS controller logs the valve's position, operating direction, total turns, and applied torque the moment the exercise finishes.

Sync

infraMAP® marks the valve exercised on the distribution map and syncs the record to your Esri map and feature services — then the crew heads to the next valve.

Without It

Hand keys and paper logs

  • Crews guess at direction and count turns by hand
  • Field notes wait in a truck until someone types them into GIS
  • No torque history to warn of a failing valve
  • Seized valves are left for "next year"
With the Diesel Grand LX

Automated, recorded, mapped

  • Hydraulic valve turning with set torque limits
  • GPS, turns, and torque captured on every valve
  • Live ArcGIS updates through infraMAP®
  • 2,500 ft-lbs on board to rehabilitate stuck valves
Two Valve Exercisers

Heavy-duty valve rehabilitation and everyday valve turning.

The diesel Grand LX carries both Wachs exercisers so one crew can handle the routine valve and the problem valve on the same route.

TM-7 HD Plus heavy-duty valve exerciser on the diesel Grand LX trailer
TM-7 HD Plus · P/N 17-405-02

2,500 ft-lb exerciser for large and seized valves

2,500 ft-lbs · 3,390 Nm

A slide-style, driver-side valve exerciser with the operator's line of sight down the trailer. The swivel key mount accepts up to 15° of stem misalignment with 27 in of head extension reach. Choose VITALS™ automatic exercising, an emergency mode for immediate torque during a main break, or the fail-safe manual interface.

BluetoothRevolution counter8 ft key
ERV-750 extended reach valve operator arm on the diesel valve maintenance trailer
ERV-750 Extended Reach

750 ft-lb articulating arm for routine valve turning

750 ft-lbs · 1,020 Nm

Two arms, one telescoping, reach 13 ft (3.9 m) across 270° from the base and 300° from the center pivot. Hydraulic disc brakes lock the arm in place, so crews can exercise curbside valves and hydrants on both sides of the trailer without repositioning.

Bluetooth tether13 ft reachTelescoping key

No assumptions

VITALS™ senses size, direction, and position instead of assuming them.

Half-turn reversals

Resistance triggers half-turn reversals that break up calcification.

Lowest torque first

Valves are exercised at the minimum torque needed, protecting stems.

Gentle seating

Torque drops once rotation starts so the gate seats softly.

Esri ArcGIS logo+ infraMAP GIS software logo
Intermountain Sales is an Esri Gold PartnerArcGIS setup and support for Mountain West water utilities
Esri ArcGIS · infraMAP® · VITALS™

Valve data that lands in your GIS, not a filing cabinet.

infraMAP® from iWater runs on the controller that operates your Wachs exercisers, so valve condition, turn counts, and torque post to each asset's history as the crew works. Intermountain Sales, an Esri Gold Partner, helps connect the diesel Grand LX and infraMAP® to your ArcGIS map and feature services.

infraMAP valve exercising map showing water mains and valves on a Wachs controller

Direct to Esri feature services

Bring in your existing GIS or link straight to Esri map and feature services for a single source of truth.

Works with your GIS platform

Wachs VITALS™ data is compatible with infraMAP®, Unity, and Sedaru for synchronization with an ArcGIS database.

Shut-off traces for main breaks

Trace which valves isolate a broken main and check their last exercise date before the crew rolls.

Recurring exercising programs

Build recurring valve exercising tasks by zone, assign crews, and watch completion across districts.

Offline on rural routes

Keep working beyond cell coverage; records sync automatically once the connection returns.

Reports for compliance

Pull valve exercising, work history, and lifecycle reports for regulators and capital planning.

Diesel Grand LX + infraMAP® + Stonex sub-foot GNSSOne quote for the trailer, the software, and survey-grade valve locations.

Learn more: infraMAP® Software · Sub-Foot GNSS Upgrade

Water Distribution Maintenance

Clean it, expose it, exercise it — without a second truck.

Vacuum excavation · 500 CFM

Clutch-driven Roots-type blower at 500 CFM (14.2 CMM) and 11 in Hg. The 250 gal spoils tank slides out, tilts to 55°, and power-dumps through a latching rear door.

Pressure washer · 3,000 PSI

2.5 GPM (9.5 LPM) at 3,000 PSI from a 95 gal tank, with short wash-down and long hydro-excavation guns and a 3 gal antifreeze system for winter.

Work-zone lighting

Programmable eight-function arrow board, dual swiveling LED work lights, and a control box for traffic and night work.

Factory-Assembled

The four part numbers in a Grand LX Diesel.

E.H. Wachs builds the diesel Grand LX at the factory from these four components and ships it as a single, ready-to-work valve maintenance trailer.

P/N 77-000-54

Standard LX Diesel Valve Maintenance Skid

Kubota 1.1L Tier 4F diesel, ERV-750, GPS controller/datalogger, HTMA Class II circuit, 500 CFM vacuum, 250 gal spoils, 3,000 PSI washer, light bar with arrow board, 45 ft aux. hose reel, Bluetooth tether.

P/N 17-405-02

TM-7 HD Plus with Bluetooth Kit

Heavy-duty 2,500 ft-lb valve exerciser for VMS trailers with wireless VITALS™ control.

P/N 77-400-00

8,000 lb GVWR VMS Bunk Trailer

Karavan-built for Wachs. About 8 × 6 ft deck, torsion Sure-Lube axle, 12 in electric brakes, ST255/85R16E radials, 3 in pintle ring, grounded LEDs.

P/N 77-409-01

A-Frame Job Box

66 × 15 × 18 in polished diamond-plate aluminum box, watertight, with locking twin latches and gas springs.

Photos & Video

Wachs valve maintenance trailers at work.

Grand LX diesel valve maintenance trailer
Water distribution crew exercising a valve with a Wachs trailer
ERV-750 arm extended over a valve box
Wachs valve maintenance skid power unit
ERV-750 extended reach valve exerciser
Hydro-excavating a valve box before exercising
Wachs valve maintenance skid controls

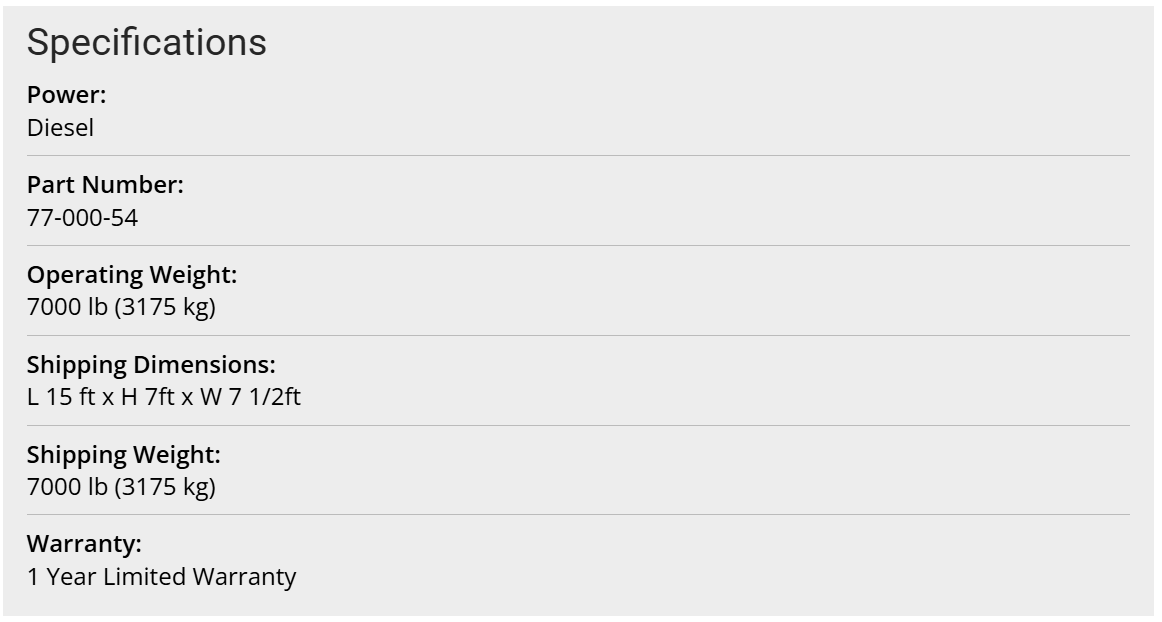

Technical Specifications

Grand LX Diesel specifications.

Diesel Power Unit
EngineKubota 1.1L, I-3, 4-stroke IDI diesel
CoolingLiquid-cooled
EmissionsEPA Tier 4F · EU Stage IIIA
Fuel tank10 gal (38 L) DOT aluminum
Battery12V, 550 CCA, Group 24 deep cycle
HydraulicsHTMA Class II · 8 GPM (30.3 LPM) @ 2,000 PSI
Reservoir / reel10 gal · 45 ft (14 m) aux. hose reel
Valve Exercisers
TM-7 HD Plus2,500 ft-lbs (3,390 Nm) · 8 ft key
ERV-750750 ft-lbs (1,020 Nm) · 13 ft (3.9 m)
ControllerRuggedized GPS controller/datalogger
SoftwareVITALS™ · infraMAP®, Unity, Sedaru compatible
Vacuum & Water
Vacuum500 CFM (14.2 CMM) @ 11 in Hg
Spoils tank250 gal (946 L) · slide / tilt / dump
Pressure washer2.5 GPM (9.5 LPM) @ 3,000 PSI
Water / antifreeze95 gal (360 L) / 3 gal (11 L)
Trailer
GVWR8,000 lb (3,629 kg)
Dimensions (L × W × H)15 × 7.5 × 7 ft
Axle / brakesSingle torsion · 12 in electric
Tongue weight (dry)850 lb (386 kg)
Hitch3 in pintle ring
Options350 gal spoils tank
Built For

Diesel valve exercising equipment for water operators.

Diesel-fleet water departments

Keep every truck, backhoe, and valve trailer on the same fuel and the same maintenance shop.

Large municipal water systems

Work through thousands of distribution valves per season with GPS records synced to ArcGIS.

Rural water districts

Long routes, few fuel stops, and spotty coverage — infraMAP® keeps logging offline.

Main-break response crews

Emergency mode on the TM-7 HD Plus applies torque immediately to close isolation valves.

Utility contractors

Contracted valve exercising, valve rehabilitation, and GIS data collection from one rig.

Public works shops

Vacuum, washer, and hydraulic tool circuit put the trailer to work beyond valve season.

Questions

Diesel valve maintenance trailer FAQ.

Should our water department choose the diesel or gas Grand LX?

Choose the diesel Grand LX if your fleet already runs on diesel or you want a liquid-cooled, Tier 4F compliant engine. Choose the gas model if your fleet runs on gasoline. The valve exercisers, vacuum, washer, trailer, and VITALS™ software are identical on both.

What engine is in the Grand LX Diesel?

A Kubota 1.1L, inline 3-cylinder, 4-stroke, liquid-cooled indirect-injection diesel that is EPA Tier 4F and EU Stage IIIA emissions compliant. It powers both valve exercisers, the vacuum blower, the pressure washer, and an auxiliary HTMA Class II hydraulic circuit from one power train.

What does Tier 4F mean for a valve maintenance trailer?

Tier 4 Final is the current EPA emissions standard for off-road diesel engines. A Tier 4F compliant engine helps municipalities meet procurement requirements for new diesel equipment.

How does valve rehabilitation work on the Grand LX?

VITALS™ exercises the gate valve at the lowest torque that turns it and reverses in half-turn increments when it meets resistance, flushing calcification from the gate. For large or seized valves, the TM-7 HD Plus applies up to 2,500 ft-lbs.

Can valve exercising data go straight into Esri ArcGIS?

Yes. infraMAP® connects directly to Esri map and feature services, and Wachs VITALS™ data is compatible with infraMAP®, Unity, and Sedaru for ArcGIS synchronization. Intermountain Sales is an Esri Gold Partner and can help connect the trailer to your ArcGIS environment.

Which part numbers make up the Grand LX Diesel?

77-000-54 (Standard LX diesel valve maintenance skid), 17-405-02 (TM-7 HD Plus with Bluetooth kit), 77-400-00 (8,000 lb GVWR VMS bunk trailer), and 77-409-01 (A-frame job box). Wachs assembles them at the factory and ships one complete trailer.

What do we need to tow the diesel Grand LX?

It is an 8,000 lb GVWR single-axle trailer with a 3 in pintle ring and an 850 lb (386 kg) dry tongue weight. A properly equipped full-size pickup with a pintle hook is typical. Check your truck's payload and receiver labels before towing.

Does Intermountain Sales offer diesel Grand LX demos in Colorado, Utah, and Wyoming?

Yes. Intermountain Sales is the authorized E.H. Wachs distributor for Colorado, Utah, Wyoming, and the Mountain West. Call (303) 762-1070 or request a quote to schedule a demonstration.

Can DWSRF or grant funding cover a diesel valve maintenance trailer?

Many utilities have funded valve exercising equipment through DWSRF, ARPA, and similar programs. Intermountain Sales provides the Grand LX bid spec, specifications, and pricing letters for your application.

Accessories & Parts

Valve keys and parts for the Grand LX Diesel.

TM-7 HD Plus low-clearance valve keys ERV-750, vacuum & trailer parts
Downloads

Grand LX Diesel documents.

Datasheet, bid spec, manuals, and warranty for purchasing departments and crews.

Sales Sheet

Grand LX Trailer Datasheet

Gas and diesel features and options.

Bid Spec

Grand LX VMT Bid Specification

Includes the Kubota diesel engine option for RFPs.

Owner's Manual

Grand Valve Maintenance Trailer Manual

Operation, safety, and service intervals.

Owner's Manual

ERV-750 Valve Operator Manual

ERV-750 operation and service.

Setup Guide

Bluetooth® Pairing & Setup

Pair the controller with both exercisers.

Owner's Manual

Roots CP Series Blower Manual

Vacuum blower service manual.

Warranty

E.H. Wachs Warranty Card

Register your Grand LX Diesel.

Protection Plan

3-Year Protection Plan

HL-100 extended coverage.

Compare & Add On

More Wachs valve maintenance equipment.

E.H. Wachs Utility ProductsIntermountain Sales Inc.

Put a diesel Grand LX on your valve program.

Intermountain Sales is the authorized E.H. Wachs distributor and an Esri Gold Partner serving Colorado, Utah, Wyoming, and the Mountain West. Ask for diesel Grand LX pricing, a demo, or a trailer + infraMAP® + GNSS package quote.

Intermountain Sales, Inc. · Colorado, Utah, Wyoming & Mountain West · Monday–Friday 8am–4pm

About the diesel E.H. Wachs Grand LX

The E.H. Wachs Grand LX Diesel is a dual-exerciser valve maintenance trailer powered by a Kubota 1.1L Tier 4F diesel. It gives water operators hydraulic valve turning, heavy-duty valve rehabilitation, vacuum excavation, and pressure washing on a single trailer, with every exercised valve recorded and mapped.

A diesel valve exerciser trailer for diesel fleets

Water departments and public works shops that run diesel trucks and equipment can keep the valve trailer on the same fuel and the same service program. The liquid-cooled Kubota drives both exercisers, the vacuum blower, and the washer from one power train, with an HTMA Class II circuit continuous-duty rated at 8 GPM.

Exercising and rehabilitating water gate valves

The ERV-750 reaches 13 ft to exercise curbside water gate valves without repositioning, while the TM-7 HD Plus delivers up to 2,500 ft-lbs for seized and oversized valves. VITALS™ automation reverses in half-turn steps to clear calcification and records torque on every valve.

Water distribution maintenance mapped in Esri ArcGIS

infraMAP® links valve exercising records to Esri map and feature services, giving water systems shut-off traces, scheduled exercising programs, offline field work, and compliance reports. Intermountain Sales is an Esri Gold Partner and supports ArcGIS integration for utilities across the region.

Authorized E.H. Wachs distributor for Colorado, Utah, and Wyoming

Intermountain Sales, Inc. supplies the diesel and gas Grand LX, Standard LX, and Compact LX valve maintenance trailers, plus infraMAP® and sub-foot GNSS, to municipal water systems, rural water districts, and contractors. Call (303) 762-1070.

Grand LX Valve Maintenance Trailer VMT, DIESEL

As a leader in truck- and trailer-mounted valve maintenance systems, E.H. Wachs Utility Products offers a diverse range of equipment to meet recommended and mandated maintenance procedures. Our products are designed to help you monitor and maintain your critical water infrastructure, ensuring it operates at peak performance. At the forefront of our offerings is the E.H. Wachs Grand LX Trailer, the ultimate in trailer-mounted valve maintenance systems.

The Grand LX Trailer features dual valve-turning machines: the industry-leading ERV-750 Extended Reach Valve Operator and the upgraded TM-7 HD Plus, capable of delivering 2,500 ft/lbs. of torque for tackling large or stubborn valves. Built on an extra-heavy-duty trailer, it includes 6-inch fully boxed frame rails, heavy-duty fenders, LED lighting, and an 8400 lbs. rated axle with 12-inch electric brakes. The TM-7 HD Plus is optimally positioned at the nine o’clock mounting location, providing the driver with a clear line of sight and superior torque management along the trailer’s longitudinal axis.

The Grand LX Trailer is powered by Wachs’ exclusive VITALS software, developed over three decades with "No Assumptions" logic to prevent misdirection or over-torquing. Available in mobile and desktop modules, this advanced software allows users to set torque limits and log critical details such as valve location, operating direction, and applied torque, ensuring precise and damage-free valve operation.

Setting a new benchmark for versatility and performance, the Grand LX Trailer is a comprehensive, self-contained system built to withstand years of demanding field use. It’s the perfect choice for municipalities and contractors seeking a durable solution to transport and operate all essential valve maintenance and vacuum tools.

Key Features of the Wachs Grand LX Trailer

  • Kubota 1.1L, I-3 Tier 4F-compliant 4-stroke liquid-cooled diesel engine, delivering reliable power for all functions
  • TC-100 ruggedized handheld tablet controller with VITALS software for tethered or wireless operation
  • TM-7 HD Plus valve exerciser, designed for emergency shutdowns and challenging valve operations, providing 2,500 ft/lbs. of torque
  • ERV-750 Extended Reach Valve Operator, ideal for preventative maintenance and valve rehabilitation, with a 13-foot reach for accessing multiple or curbside valves from a single position
  • HTMA Class II hydraulic circuit with a 10-gallon reservoir, fan-cooled heat exchanger, and 45-ft hoses with reel
  • High-performance vacuum system with a 500 CFM, 11in Hg positive displacement blower to remove debris and spoils from valve boxes
  • 50-gallon spoils tank, featuring a hydraulic slide, powered dump, and secure rear latching door
  • 5 GPM @ 3000 PSI pressure washer system, equipped with hydro-excavation guns (short and long), a 95-gallon water tank/reservoir, and a 50-ft retractable hose with reel
  • LED lighting package, including a control panel, programmable arrow board, and directional spotlights

    LX Package Bundle
  • Light bar
  • Auxiliary hydraulic hose reel
  • Bluetooth tether for wireless operation
  • Job box for convenient tool storage

    The Wachs Grand LX Trailer delivers unmatched performance, rugged reliability, and advanced functionality, making it the ultimate solution for field-ready valve maintenance systems. Ideal for municipalities and contractors, it combines cutting-edge technology with proven durability to keep your infrastructure running smoothly.

Accessories

Grand-LX-Trailer-GLXT-Datasheet.pdf

Download PDFView PDF

Grand-LX-Trailer-GLXT-Datasheet

Download PDF

Grand-LX-Trailer-GLXT-Datasheet

Download PDF

VMT-1 Valve Maintenance Trailer Grand Owner's Manual

Download PDFView PDF

Roots- VMT-2 and VMS SB Blower_2017 CP Series Manual Rev D 041921

Download PDFView PDF

Grand LX VMT-2 Valve Maintenance Trailer Bid Spec.

Download PDFView PDF
